U-Frame 50 stage black
SKU:
UFRAME50-B
EAN: 4042659050346
- module interior width: 50 cm
- modular System for suspended lights
- point load of max. 95 kg
- functional security fasteners on both sides
- incl. 2 connectors and pin
Non-binding price recommendation
€192.00
Interested in this product?
Register now
With U-Frame 50 and U-Top 50 Global Truss offers now a highly flexible and completely modular solution for suspended lights. The lightweight system enables a theoretically infinite configuration of single and double suspension as well as ladder systems for various lights - both suspended and upright mounted.

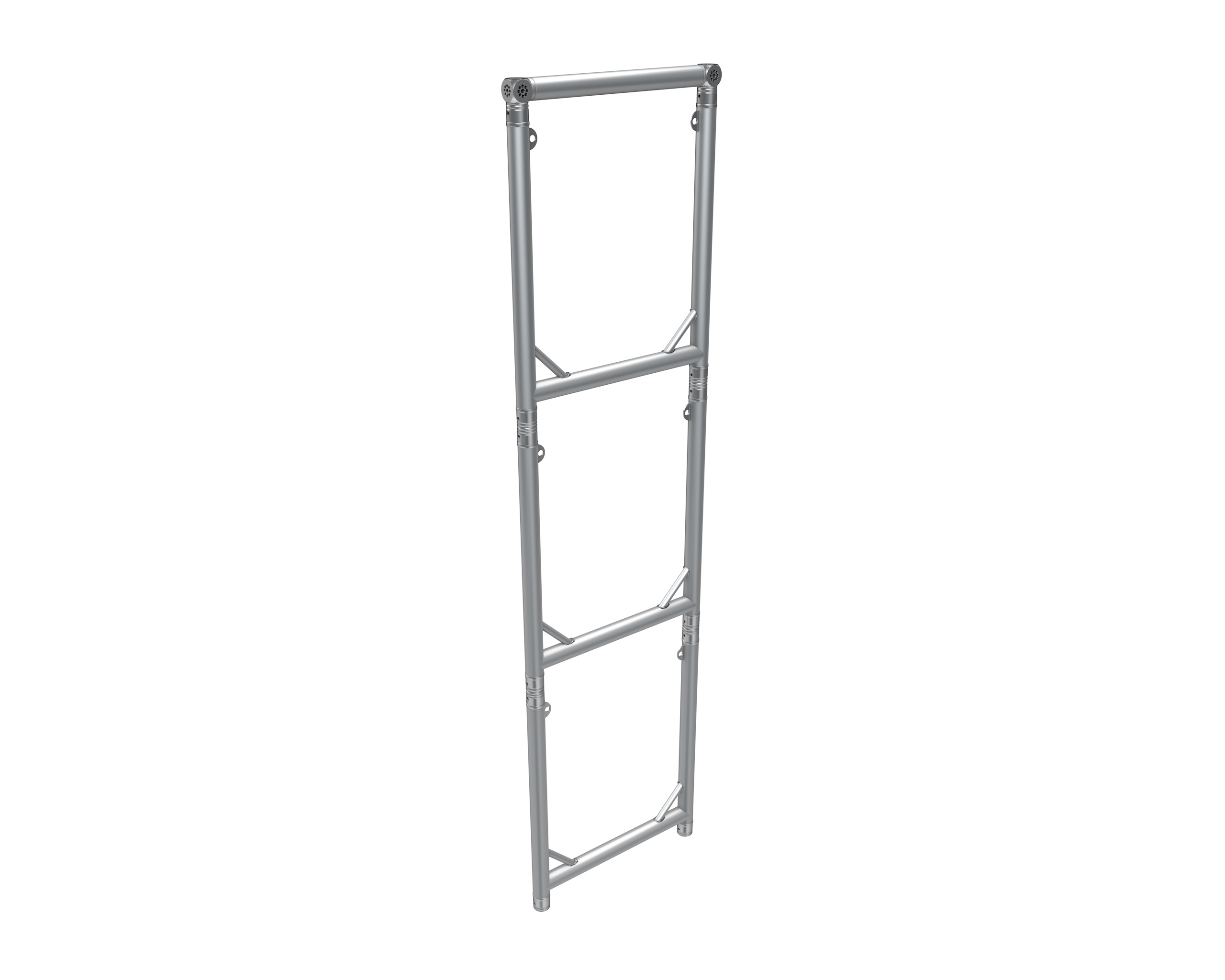

A combination of the two modules can carry a point load of max. 95 kg. By the functional security fasteners of each side of the U-Frame diverse types of lights can be mounted. For ladder configurations up to 10 U-Frame-50 / U-Top-50 combinations can be mounted one below the other, without further rigging actions.
The suspension can be made by the supplied ring eyes or with swivel couplers.
U-Frame and U-Top were developed by Global Truss for quick and easyto- use application in a variety of event environments.
U-Frame 50 and U-Top 50 are available as standard in silver and black. Other colors on request.
General
| Colour: | black |
|---|---|
| Material: | Al EN AW-6082 T6 |
Main pipe
| Diameter main pipe: | 50 mm |
|---|---|
| Wall thickness main pipe: | 3 mm |
Hardware
| Dimensions (L/W/H): | 800 x 615 x 110 mm |
|---|---|
| Weight: | 3,95 kg |
Shipping Data
| Length: | 800 mm |
|---|---|
| Width: | 615 mm |
| Height: | 110 mm |
| Weight: | 4.4 kg |
| PU: | 1 |
Accessories
