U-Top 50 stage black
SKU:
UTOP50-B
EAN: 4042659050322
- module interior width: 50 cm
- modular System for suspended lights
- hanging modul for U-Frame 50
- incl. 2x half connector, pin + R-Clip and M12 eyebolts
Non-binding price recommendation
€187.00
Interested in this product?
Register now

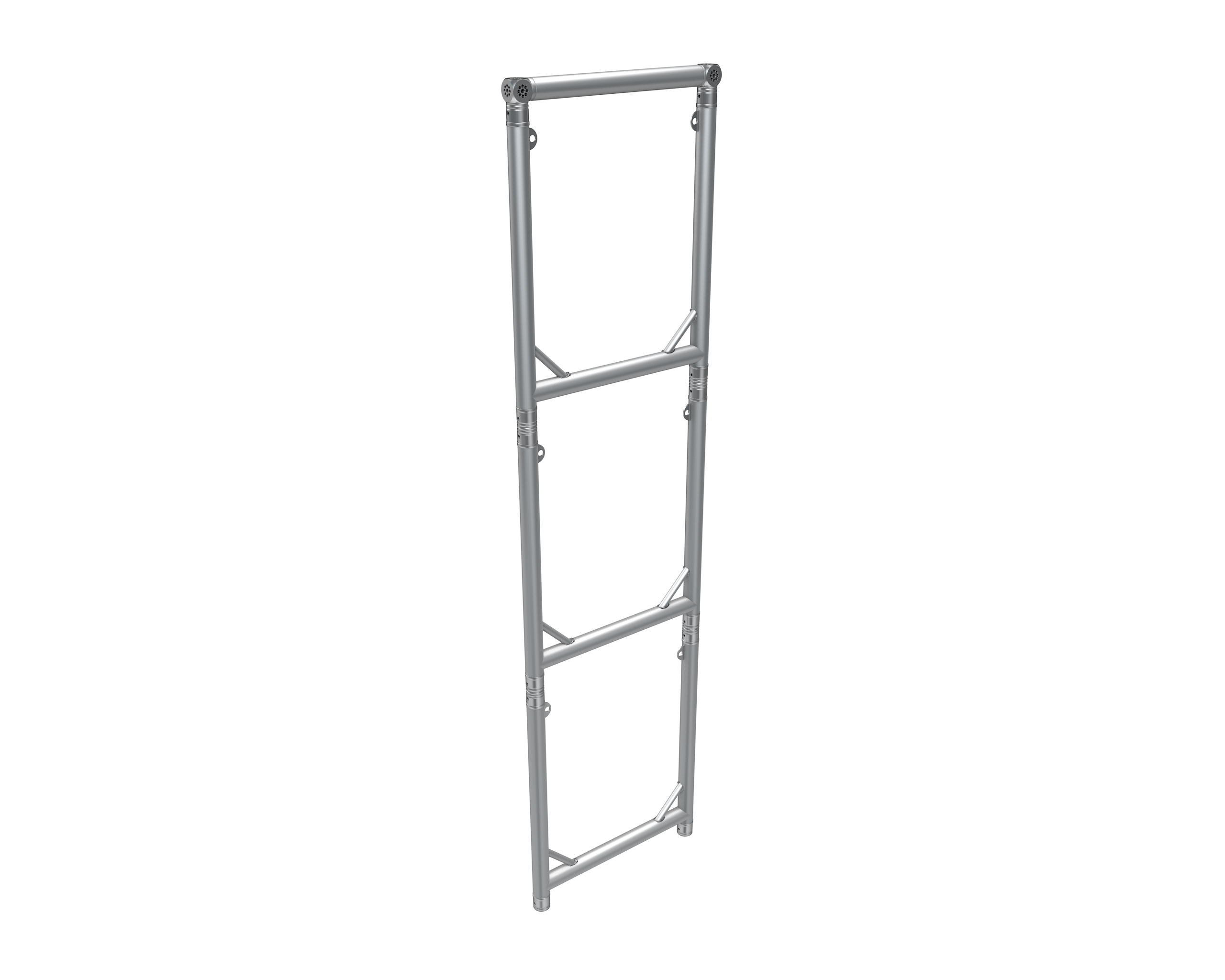

With U-Frame 50 and U-Top 50 Global Truss offers now a highly flexible and completely modular solution for suspended lights. The lightweight system enables a theoretically infinite configuration of single and double suspension as well as ladder systems for various lights - both suspended and upright mounted.
A combination of the two modules can carry a point load of max. 95 kg. By the functional security fasteners of each side of the U-Frame diverse types of lights can be mounted. For ladder configurations up to 10 U-Frame-50 / U-Top-50 combinations can be mounted one below the other, without further rigging actions.

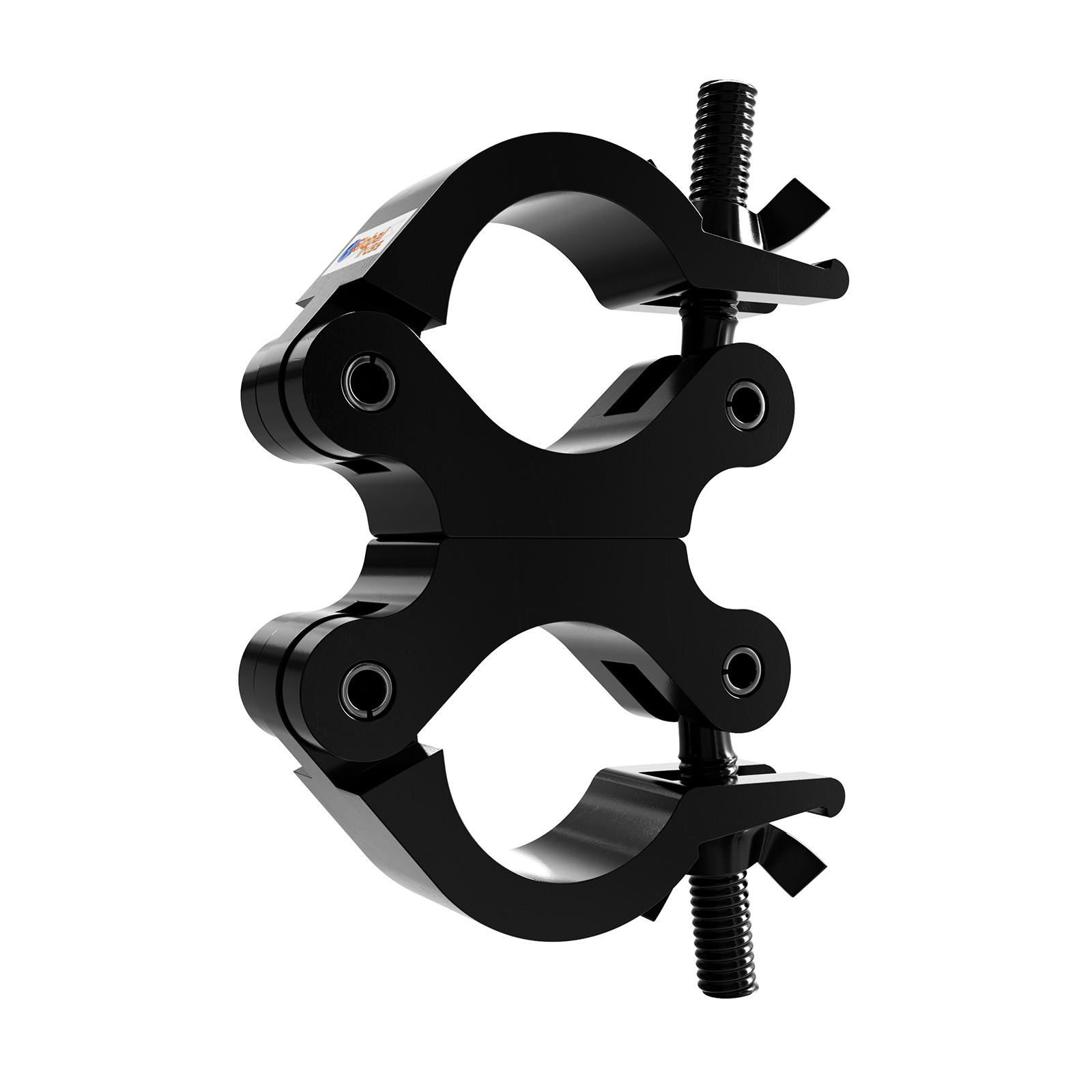

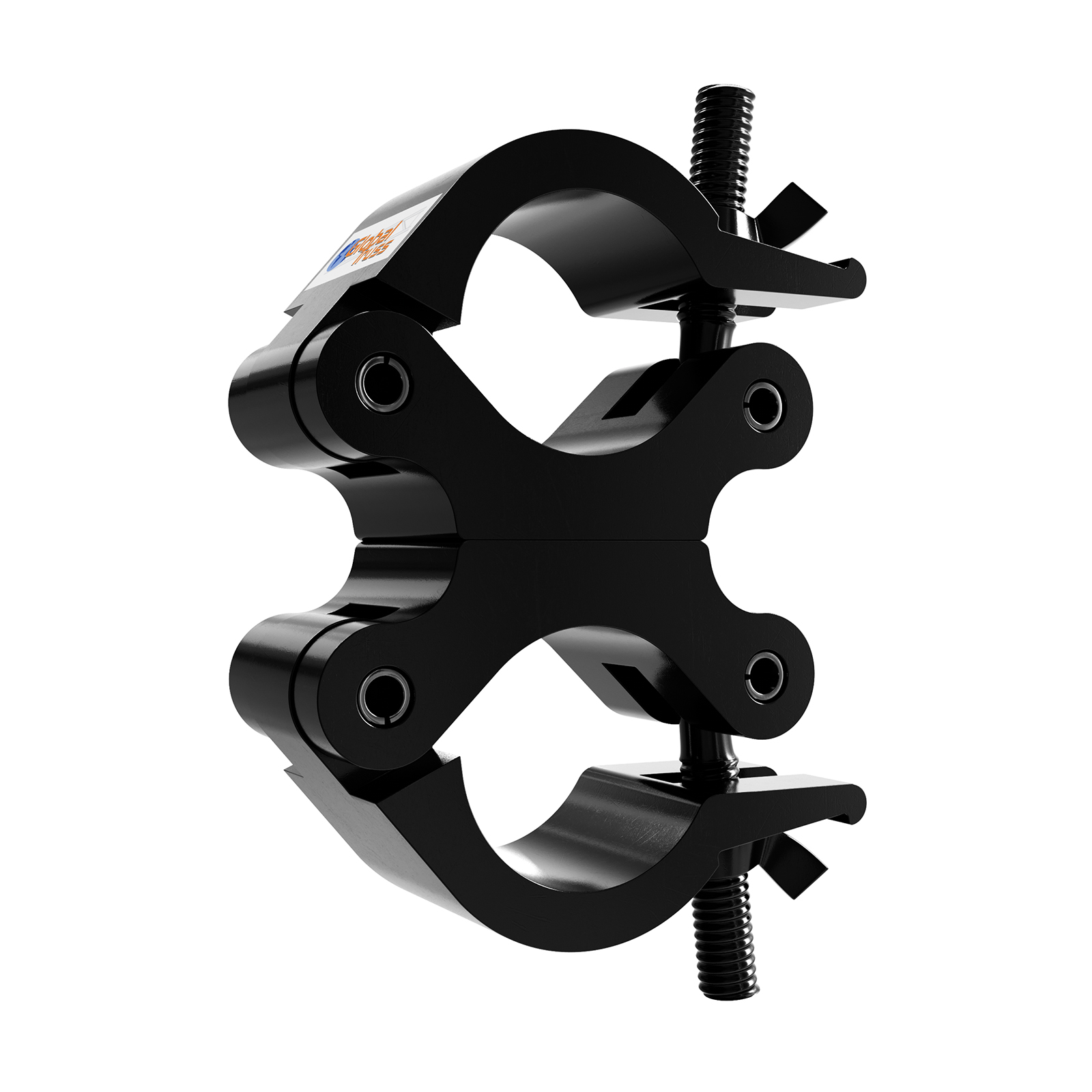

The suspension can be made by the supplied ring eyes or with swivel couplers.
U-Frame and U-Top were developed by Global Truss for quick and easyto- use application in a variety of event environments.
U-Frame 50 and U-Top 50 are available as standard in silver and black. Other colors on request.
General
| Colour: | black |
|---|---|
| Material: | Al EN AW-6082 T6 |
Main pipe
| Diameter main pipe: | 50 mm |
|---|---|
| Wall thickness main pipe: | 3 mm |
Hardware

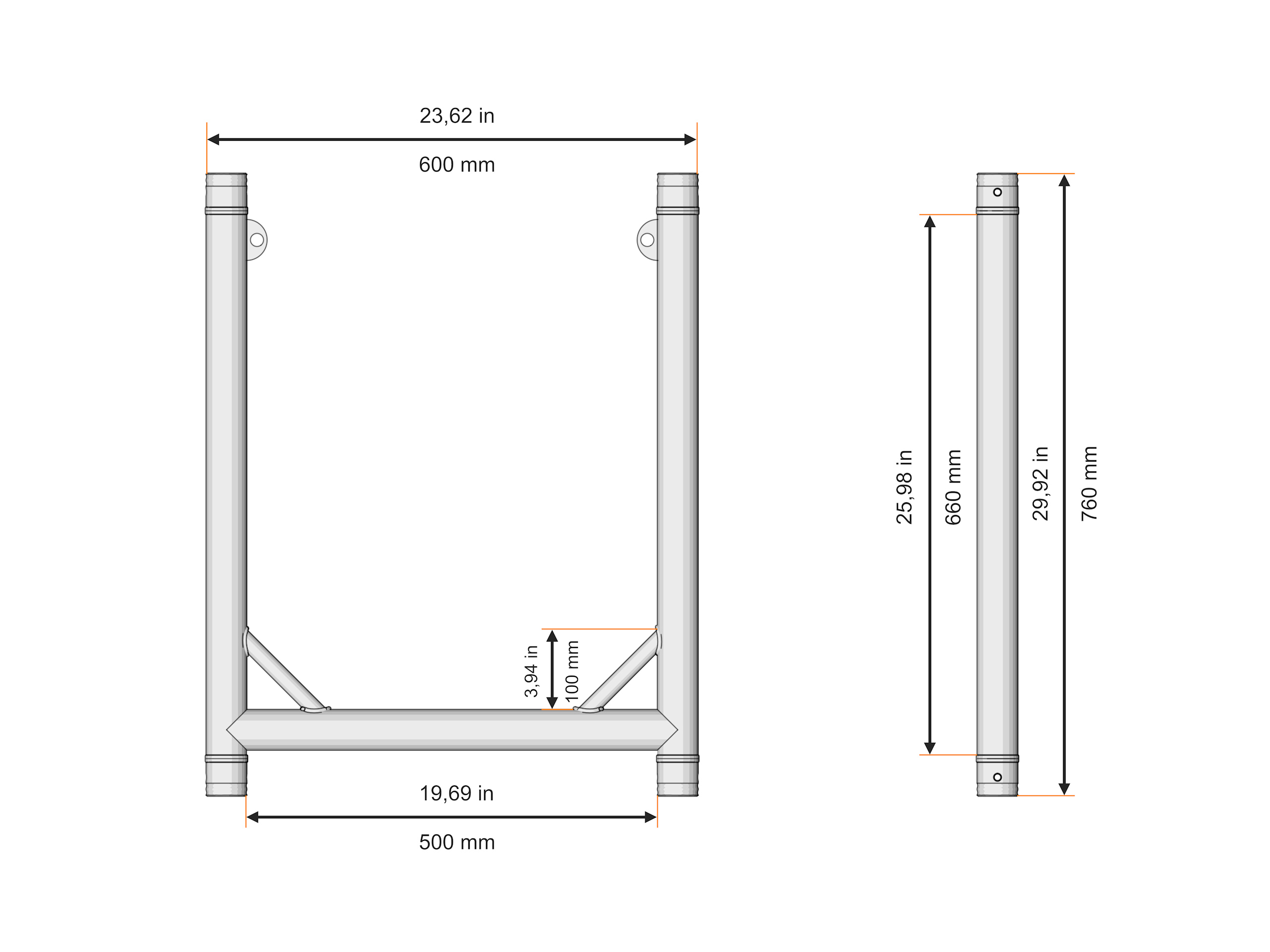

| Dimensions (L/W/H): | 632 x 210 x 165 mm |
|---|---|
| Weight: | 1,90 kg |
Shipping Data
| Length: | 630 mm |
|---|---|
| Width: | 165 mm |
| Height: | 60 mm |
| Weight: | 2.2 kg |
| PU: | 1 |
