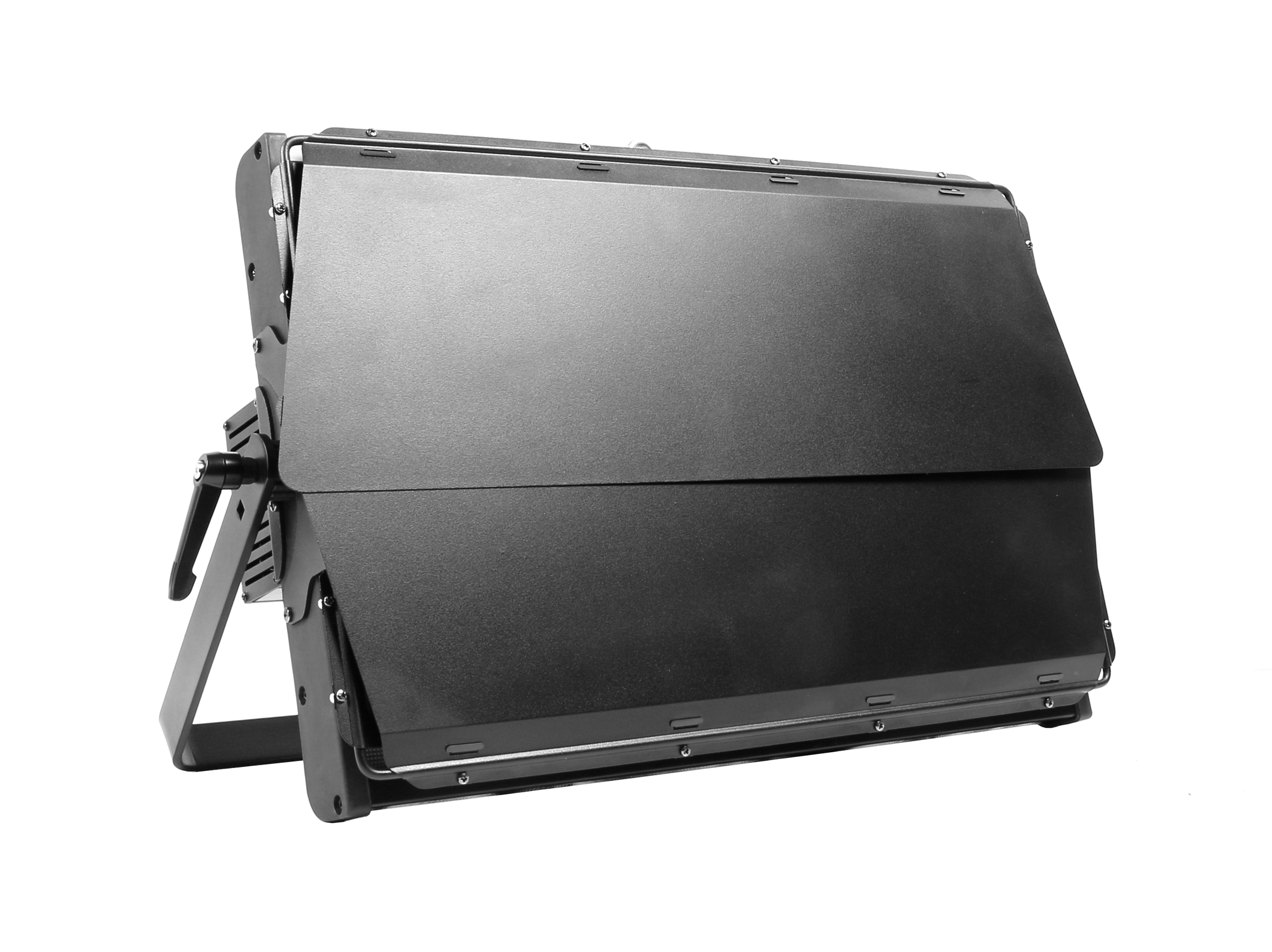

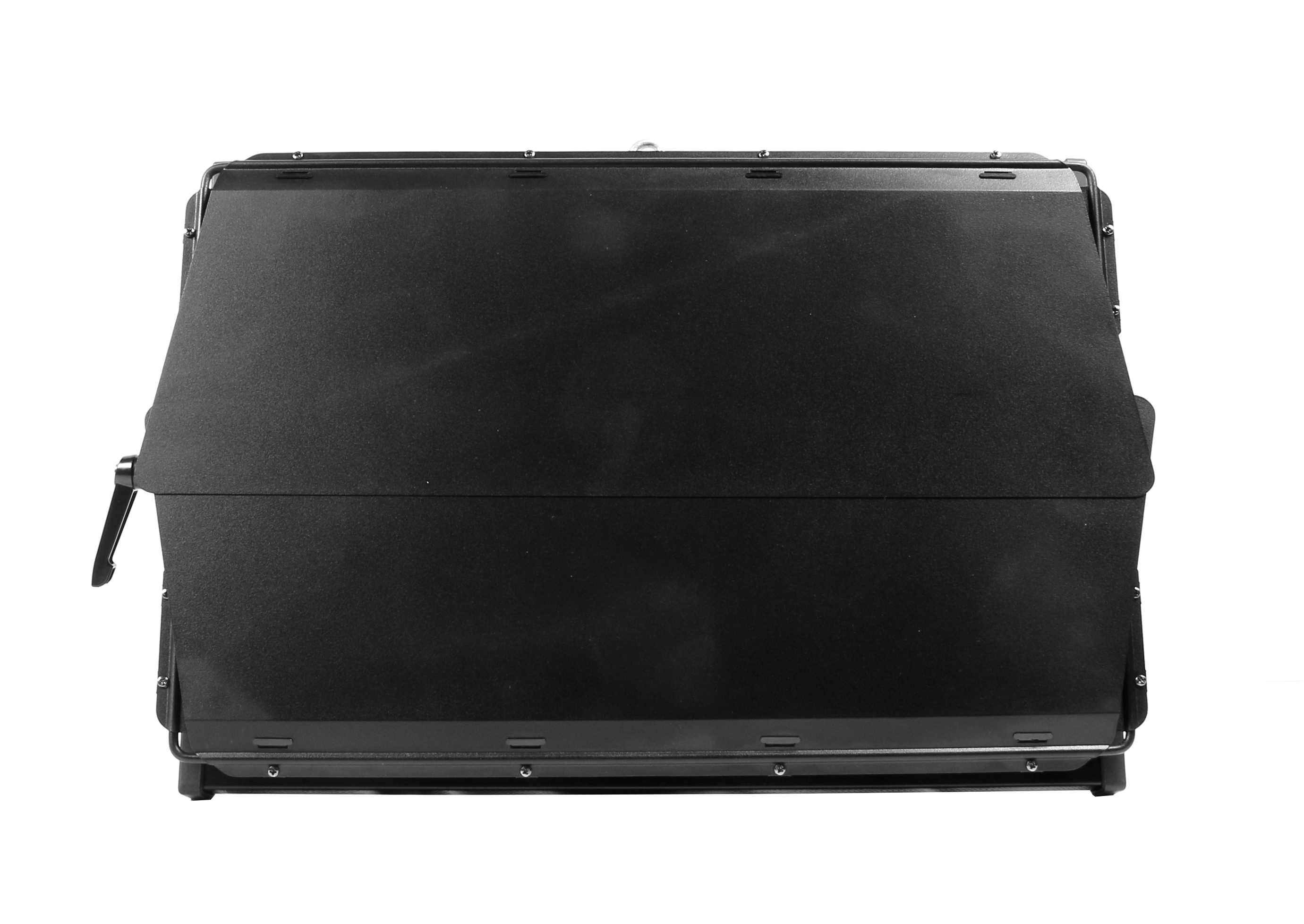

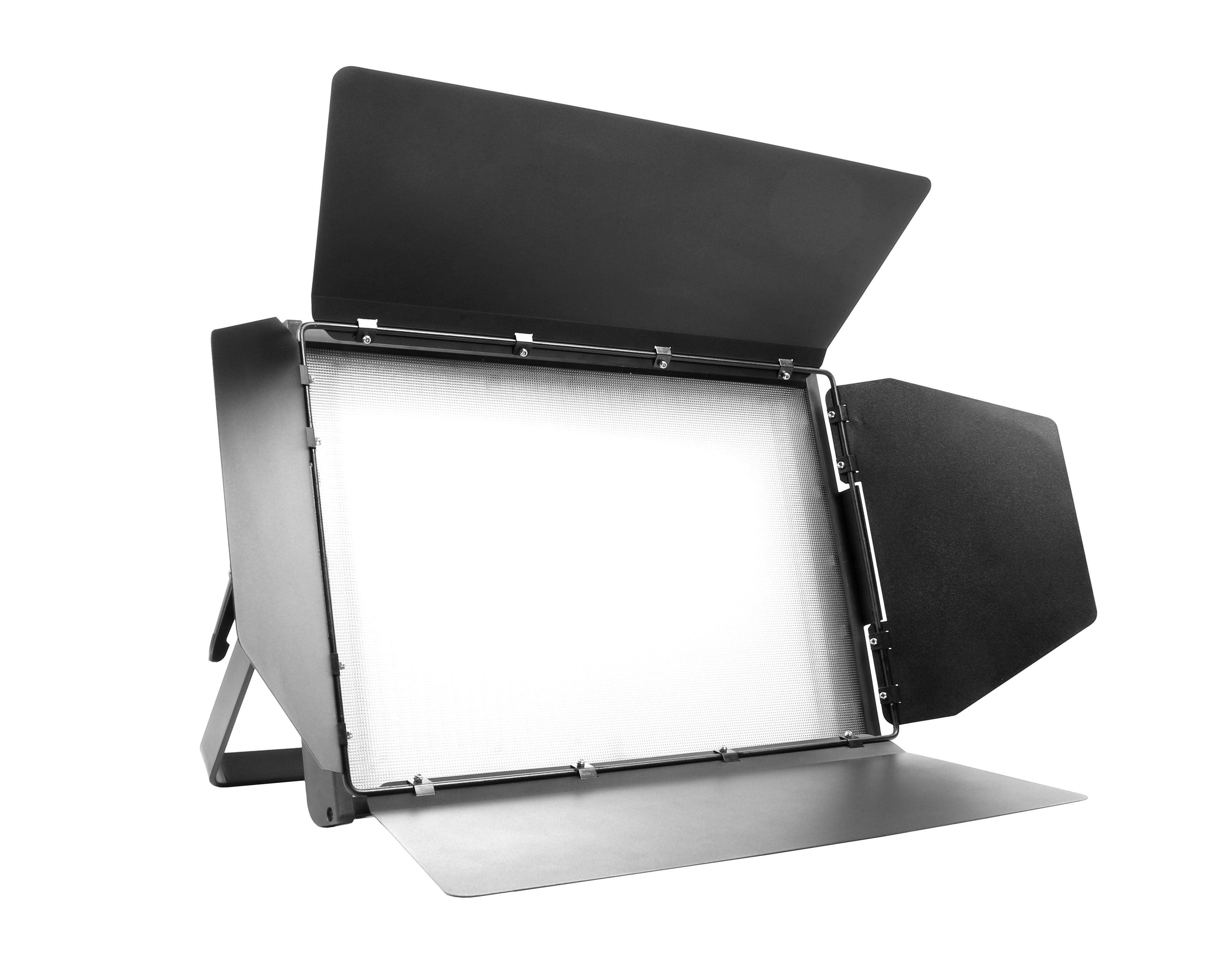

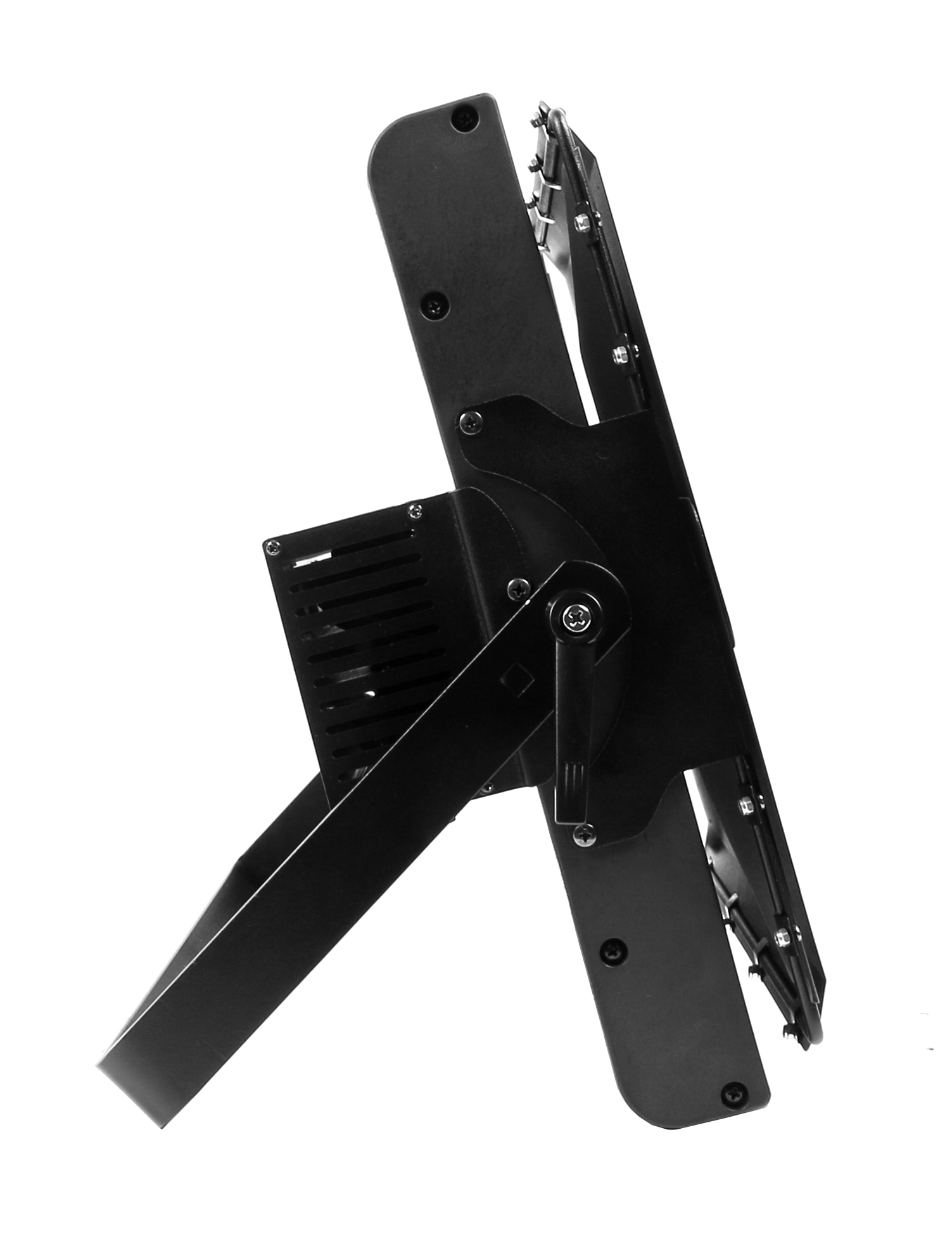

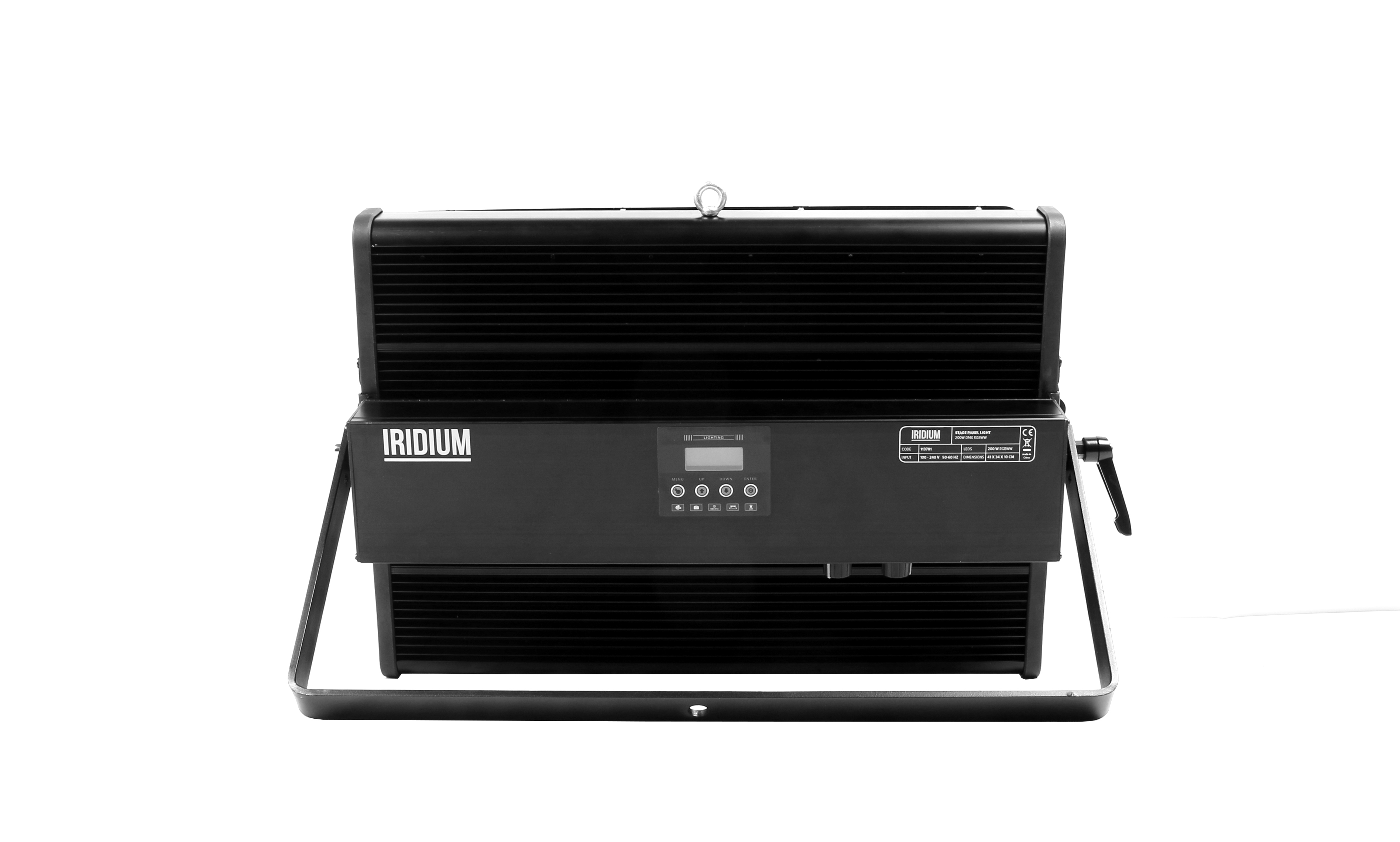

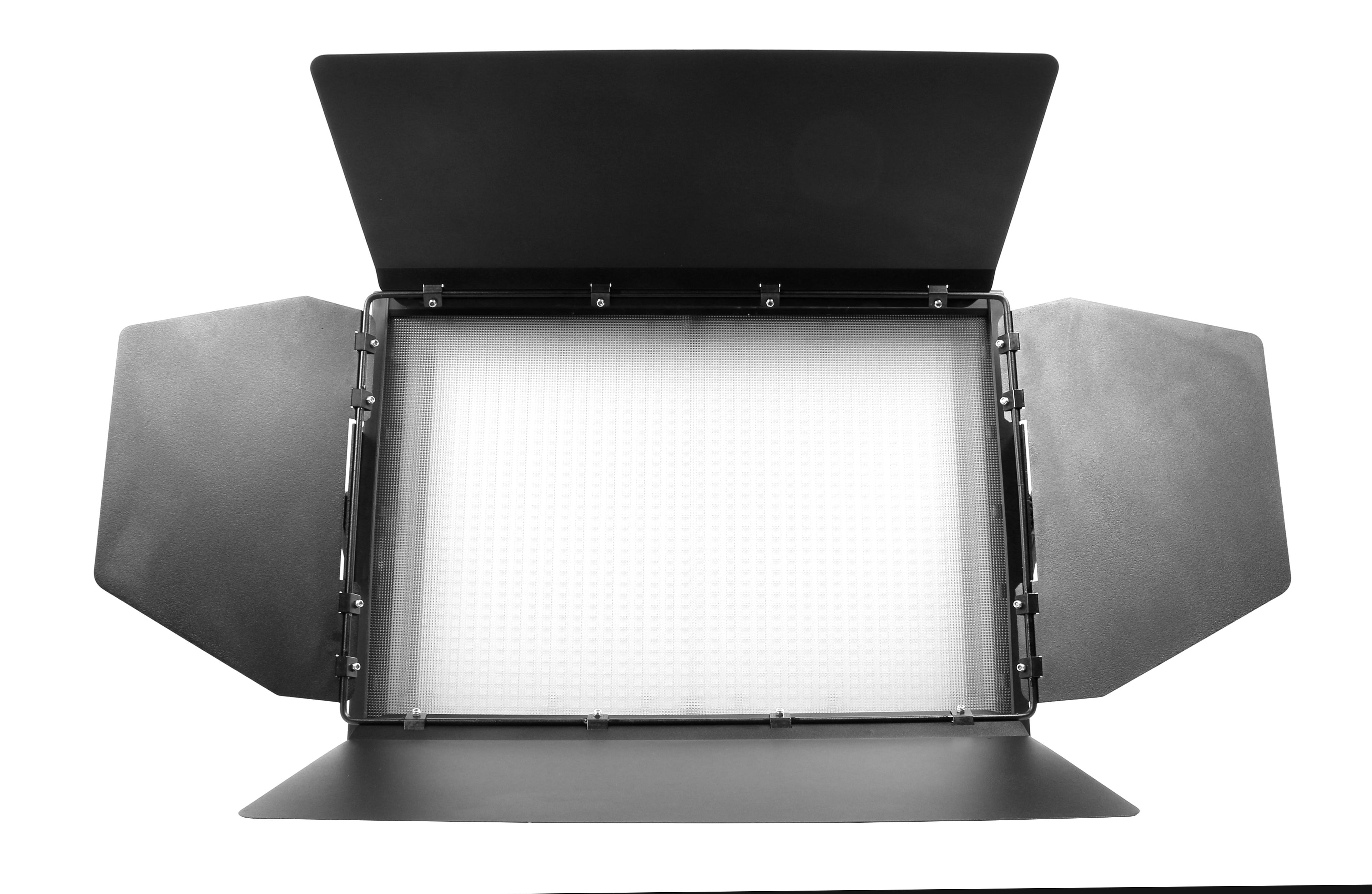

LED Stage Panel 200W RGBWW is a powerful and high quality light for professional applications in theater, video and photography. It is equipped with high quality SMD LEDs that offer a very high color rendering of CRI>90. The 120° beam angle provides optimal illumination on stage and the low noise effect makes it an ideal light for theatrical performances. The LED Stage Panel 200W RGBWW is equipped with an adjustable color temperature from 3200K to 5700K and DMX functions that allow easy control of the light. This allows to create different colors and effects to create a professional atmosphere.

Title File Size File extension Download
Manual (german/english/french) 1155kb pdf

Power supply

Voltage: 100V-240V / 50-60Hz
Power consumption max.: 250 W

Light source

LM type: LED Xin1
Power: 250 W
Colour spectrum: RGBWW
Color rendering index: >90
Wavelength/colour temperature: 3200K - 5700K

Optics

Beam angle: 120°

Connections

Power in: P-con
Power out: P-con
XLR in/out: 3pol

Controlling

DMX512: Yes

Hardware

Weight: 7,40 kg
Dimensions (L/W/H): 520 x 382 x 105 mm
Protection class: IP20
Temperature range: -15°C ~ 35°C
Display: LCD

Shipping Data

Length: 610 mm
Width: 220 mm
Height: 450 mm
Weight: 8,20 kg
PU: 1
