Half Coupler Small 48-51/30/100kg
SKU:
812
EAN: 4042659102625
- Compatibility: 48-51 mm
- Width: 30 mm
- Tensile load: 100 kg
- TÜV Certified
Non-binding price recommendation
€6.70
Interested in this product?
Register now
The 812 is the most widely used coupler in the world. Proven millions of times over within the industry and an indispensable element for any event, its slim design means you can attach the coupler at nearly any point on the truss. It is the ideal choice for smaller and mediumsized devices.
General
| Approved by: | DIN EN 13814:2004 |
|---|---|
| Compatibility: | 48-51 mm |
| Colour: | Aluminum |
| TÜV certificate: | Yes |
| Material: | Aluminum 6061 T6 |
Fittings
| Clasp: | M8 wing nut |
|---|---|
| Retaining screw: | M10 wing nut, snap ring, washer |

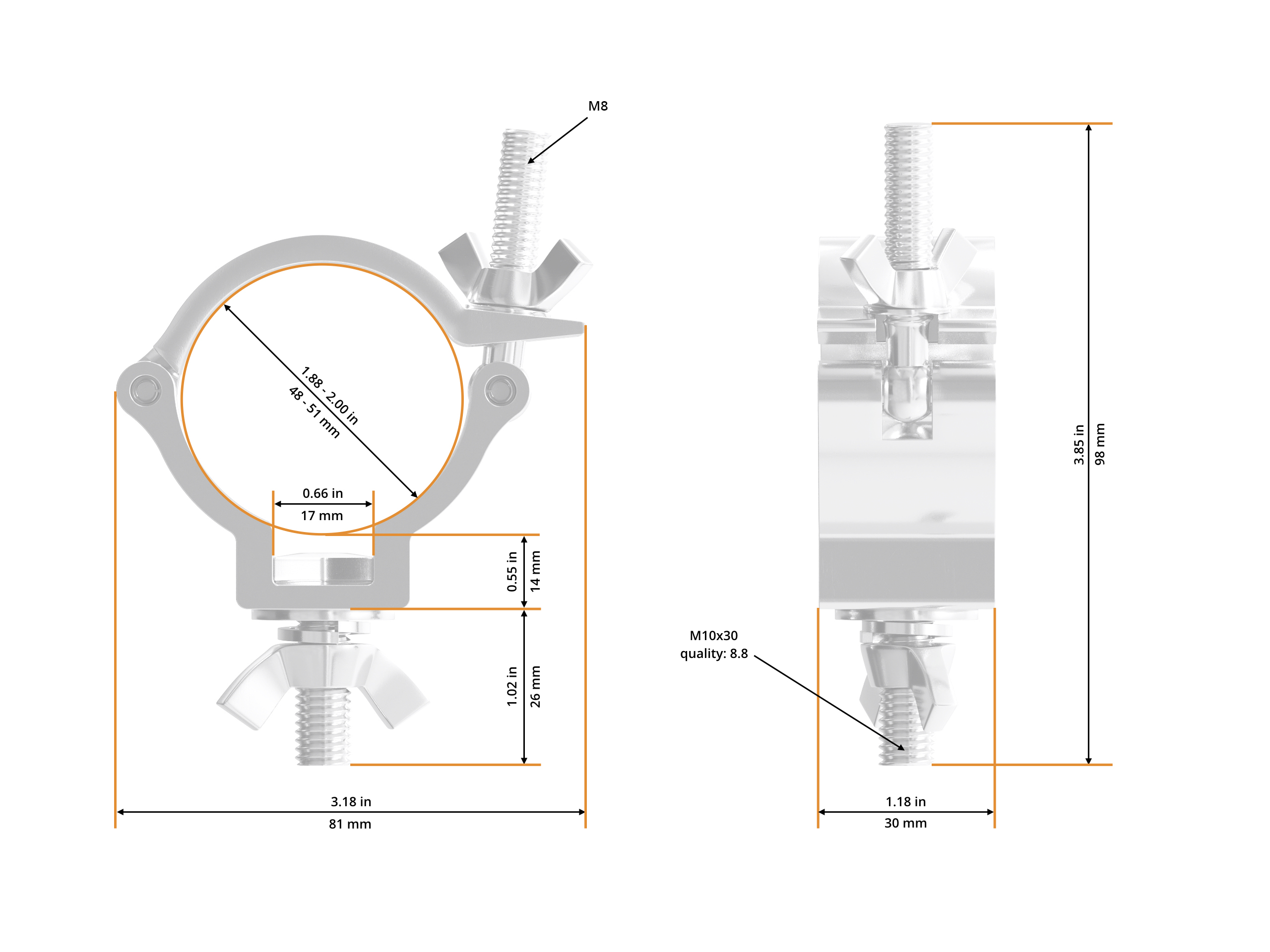

Technical Data
| Width: | 30 mm |
|---|---|
| Tensile load: | 100,00 kg |
Shipping Data
| Length: | 80 mm |
|---|---|
| Width: | 80 mm |
| Height: | 30 mm |
| Weight: | 0.16 kg |
| PU: | 60 |
