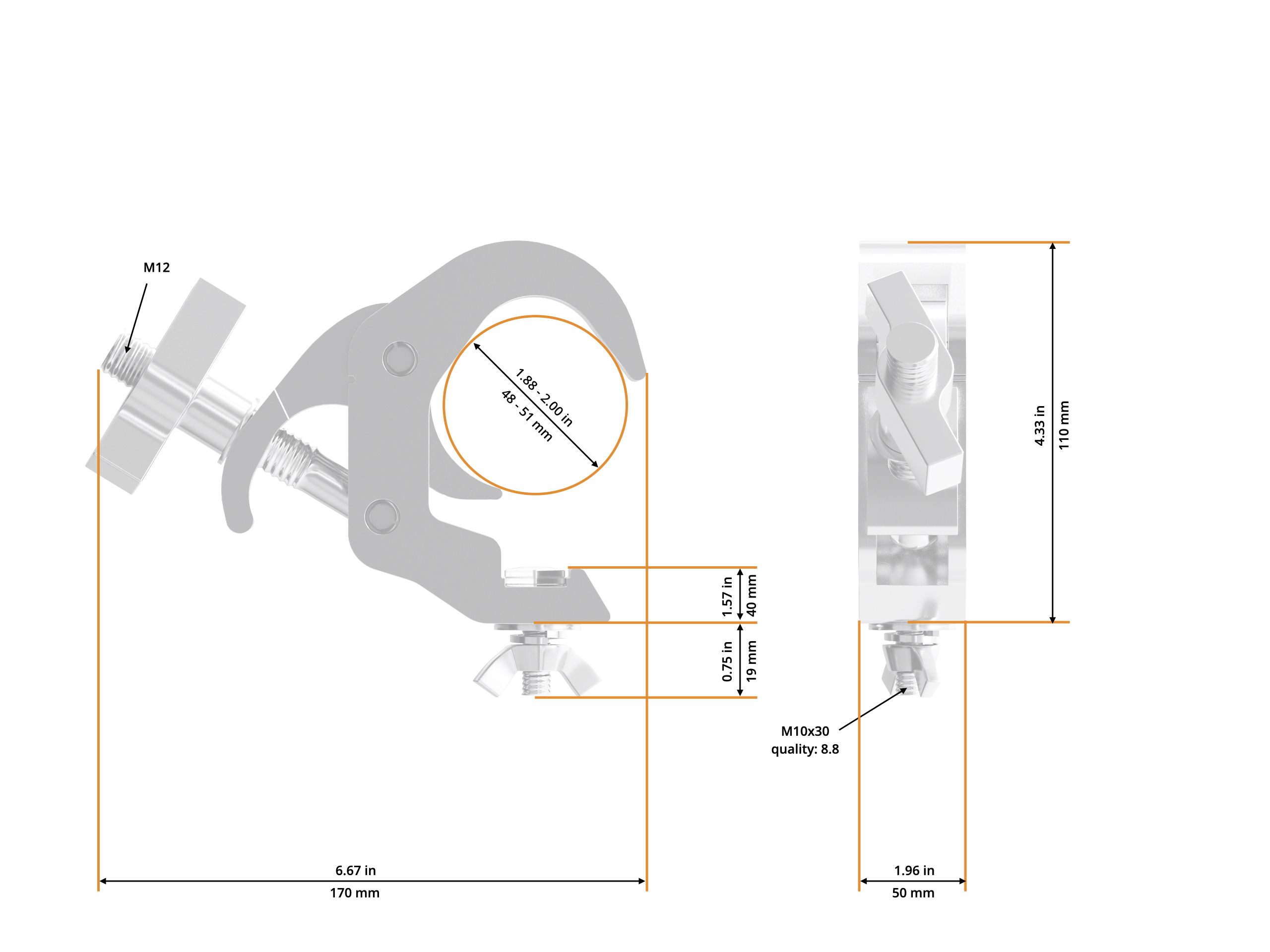

Selflock Hook Easy 48-51/30/250kg
SKU:
5073-1
EAN: 4042659141228
- Fast and easy fixture
- Compatibility: 48-51 mm
- Width: 30 mm
- Tensile load: 250 kg
- TÜV Certified
Non-binding price recommendation
€20.90
Interested in this product?
Register now
The Self-locking Easy hook is a fast and simple way to attach devices to a truss. The special design with lateral screw prevents it from hooking itself to the devices or to the cross beam. The large wing nut makes it easy to lock the coupler in place.
General
| Approved by: | DIN EN 13814:2004 |
|---|---|
| Compatibility: | 48-51 mm |
| Colour: | Aluminum |
| TÜV certificate: | Yes |
| Material: | Aluminum 6061 T6 |
Fittings
| Clasp: | M12 wing nut |
|---|---|
| Retaining screw: | M10 device screw, snap ring, washer |
Technical Data
| Width: | 30 mm |
|---|---|
| Tensile load: | 250,00 kg |
Shipping Data
| Length: | 175 mm |
|---|---|
| Width: | 140 mm |
| Height: | 30 mm |
| Weight: | 0.48 kg |
| PU: | 25 |
