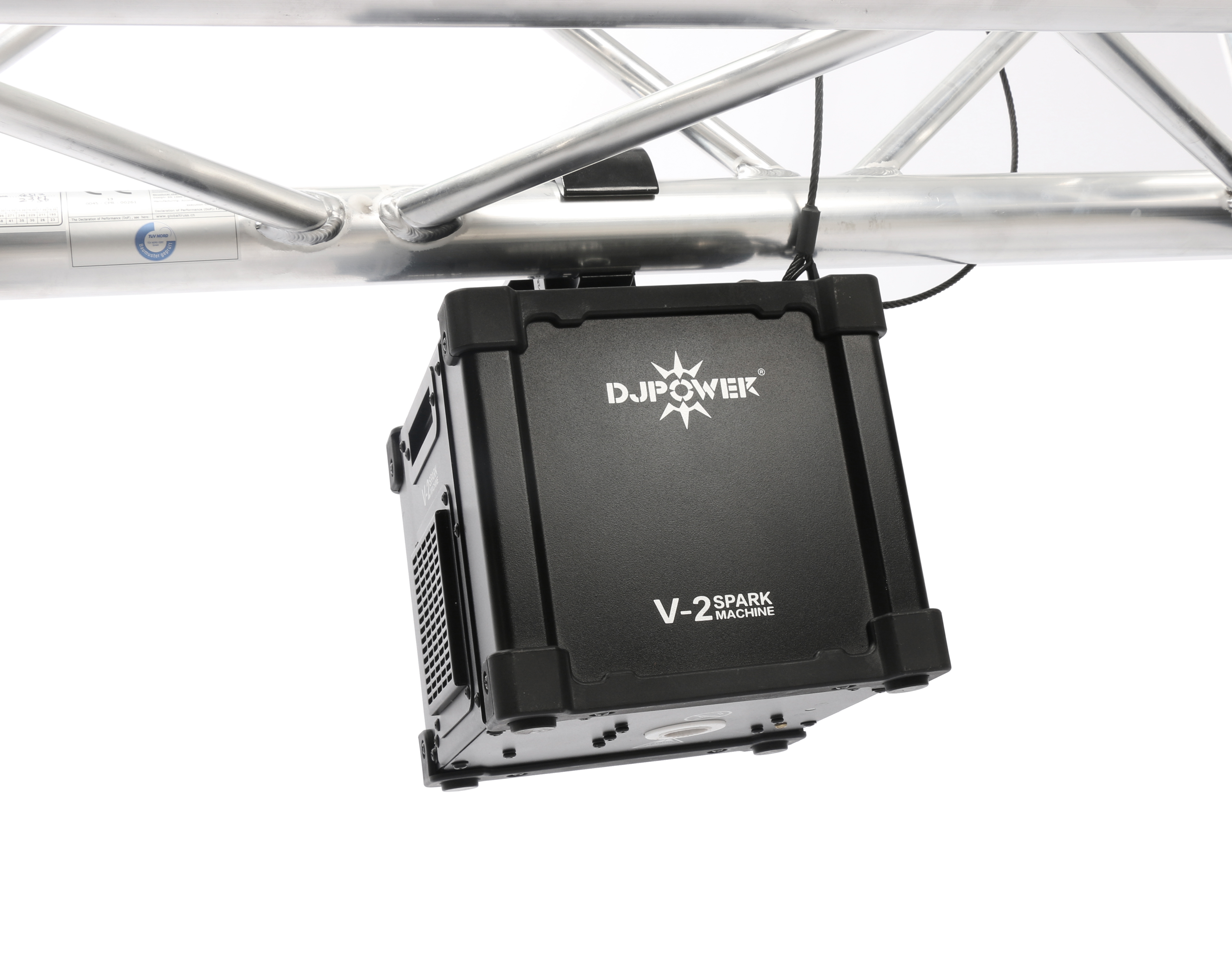

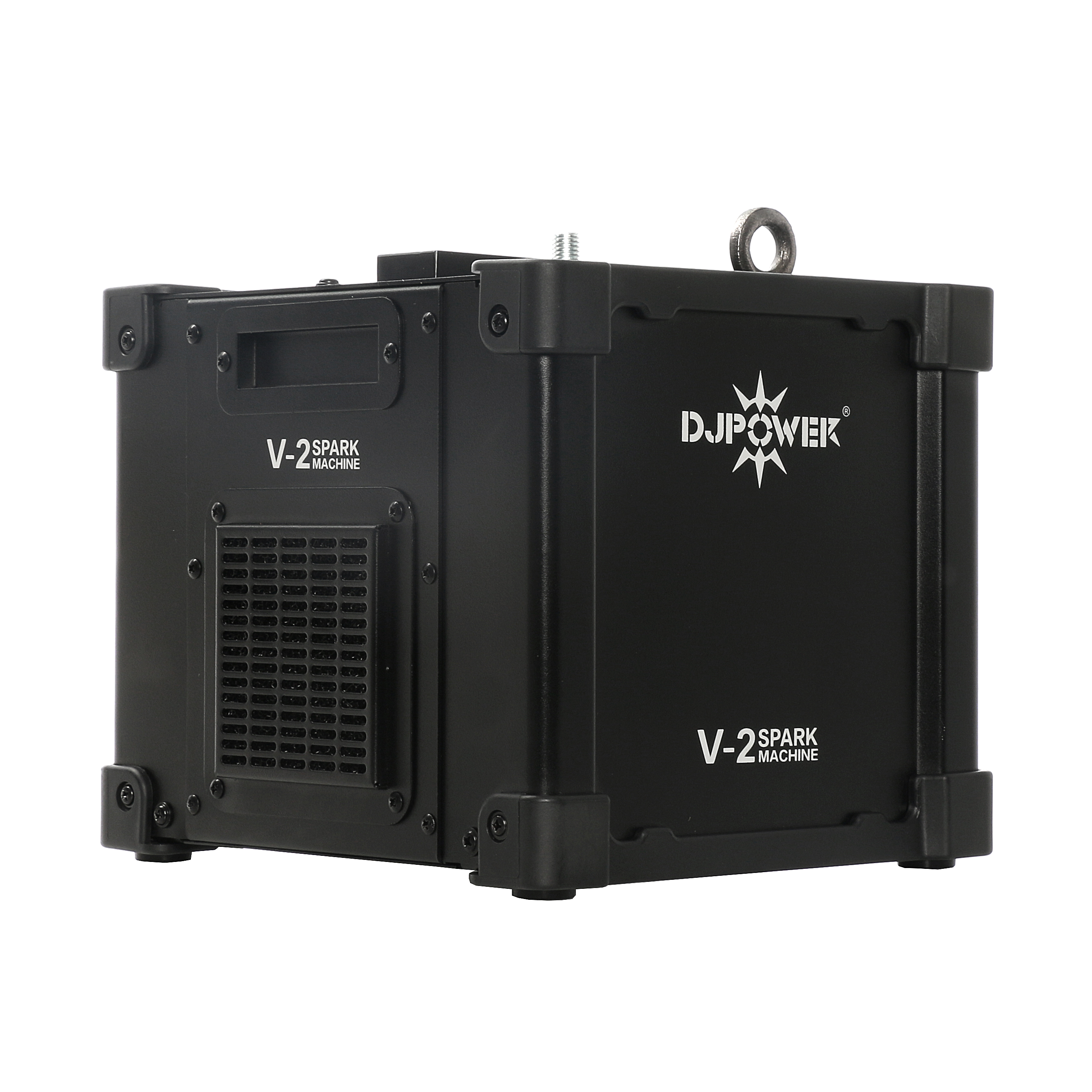

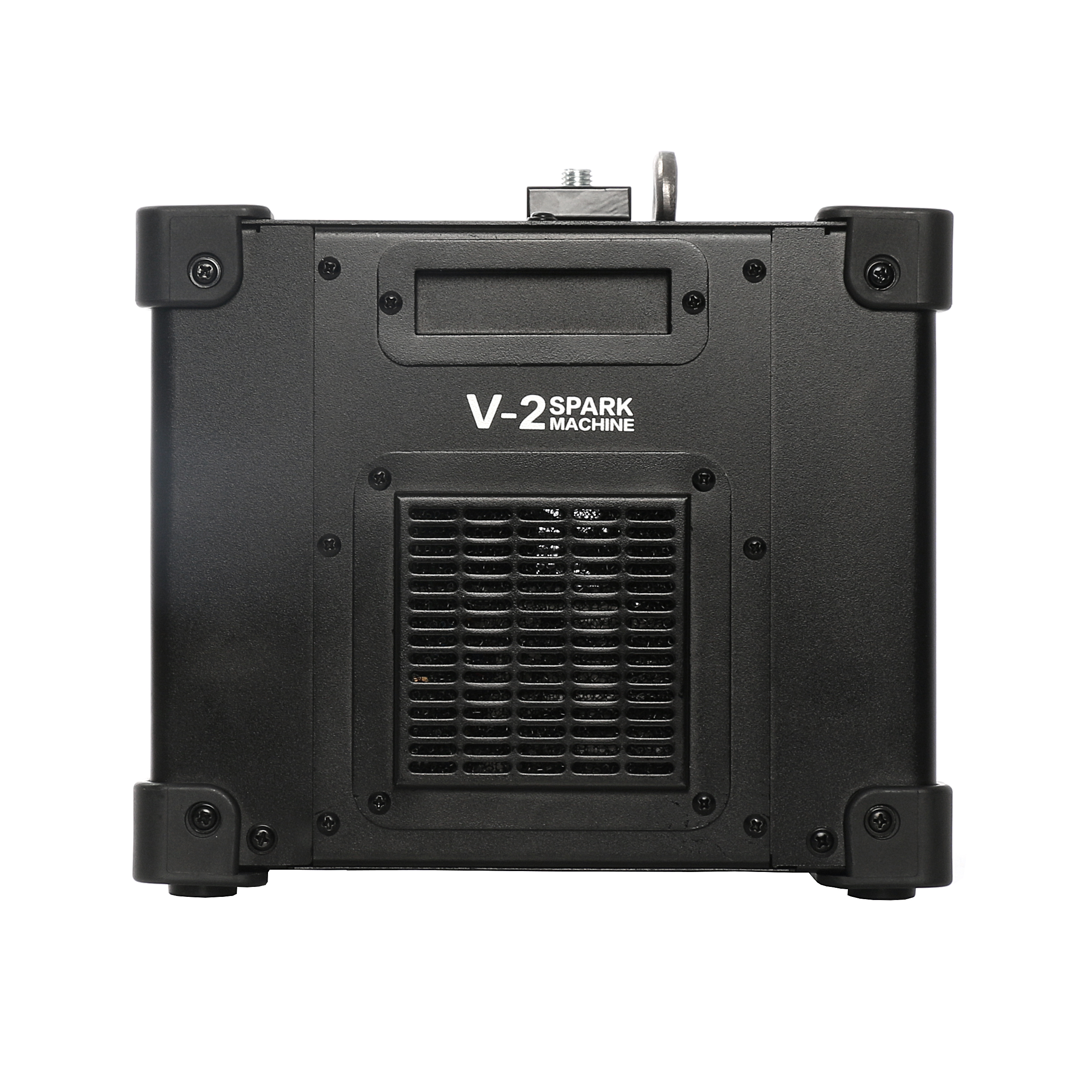

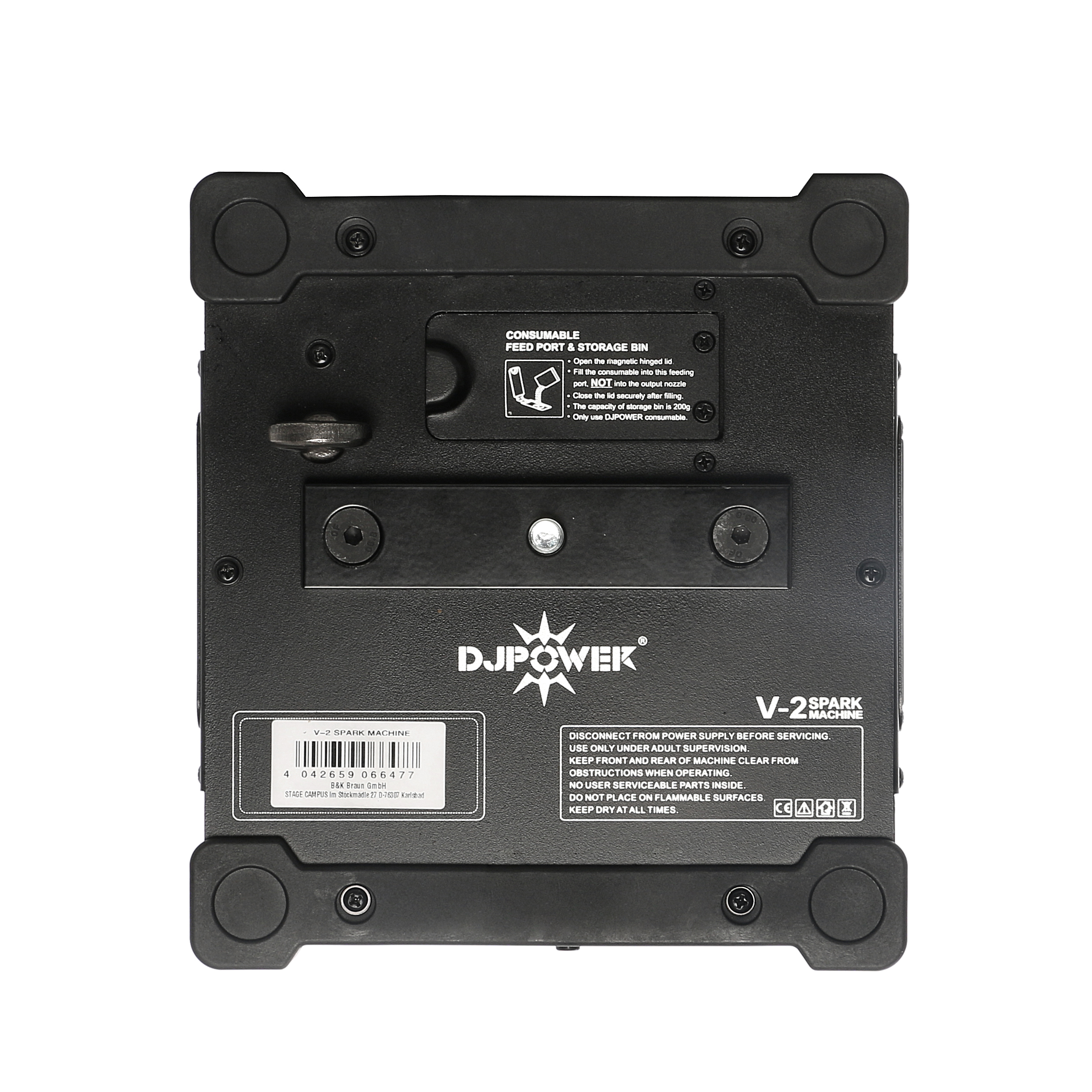

The Spark V-2 by DJ Power is the second version of Spark V-1, specially developed for overhead mounting. Due to special granules the Spark V-2 can produces sparkling fountain that fall down up to 4 meters. These sparkling fountains are much cooler than traditional pyrotechnics by heating the specially formulated DJ Power granules and therefore can be used in- and outdoors. Due to this unique feature the Spark V-2 can be used in many different settings, such as a wedding, a gala event, a festival or even a theatre.

To ensure maximum safety during operation, the Spark V-2 automatically shuts off after 30 seconds of continuous ejection and can then be reactivated. In order to use the Spark V-2 you are restricted to use the DJ Power granules. It comes with a special key card that unlocks the device for use.

The Spark V2 is controlled via DMX512 (3pol XLR) or by the included remote control. To use the Spark V-2 no pyro technician certificate is necessary.
Title File Size File extension Download
Manual (english) 893kb pdf
Manual (german) 909kb pdf
Quick Start (english) 577kb pdf
Quick Start (german) 578kb pdf

Power supply

Voltage: AC 220 V - 240 V / 50/60 Hz
Fuse: 5 A/250V
Power consumption max.: 600 W

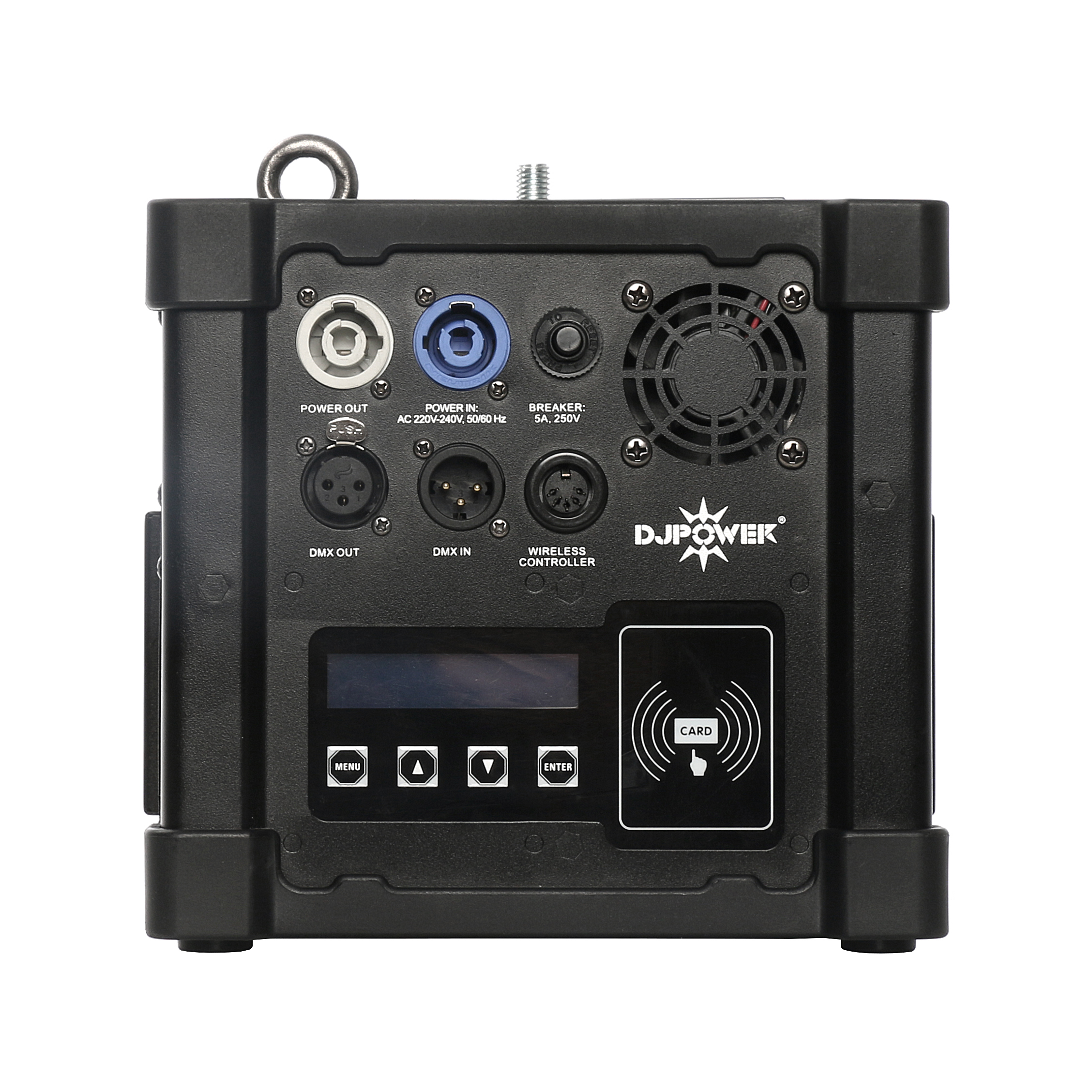

Connections

Power in: P-Con
Power out: P-Con
XLR in/out: 3pol

Controlling

DMX512: Yes
Number of DMX channels: 2

Technical Data

Effect type: Firework
Ejection: 4 Meter Fall Länge
Consumption @ 100%: 11 g/min
Warm-up time: 3 m

Hardware

Dimensions (L/W/H): 228 x 206 x 227 mm
Weight: 7,80 kg

Shipping Data

Length: 315 mm
Width: 295 mm
Height: 285 mm
Weight: 8.5 kg
PU: 1
