U-Frame 100 stage black
SKU:
UFRAME100-B
EAN: 4042659050384
- module interior width: 100 cm
- modular System for suspended lights
- point load of max. 93 kg
- functional security fasteners on both sides
- incl. 2 connectors and pin
Non-binding price recommendation
€229.00
Interested in this product?
Register now
With U-Frame 100 and U-Top 100 Global Truss offers now a highly flexible and completely modular solution for suspended lights. The lightweight system enables a theoretically infinite configuration of single and double suspension as well as ladder systems for various lights - both suspended and upright mounted.

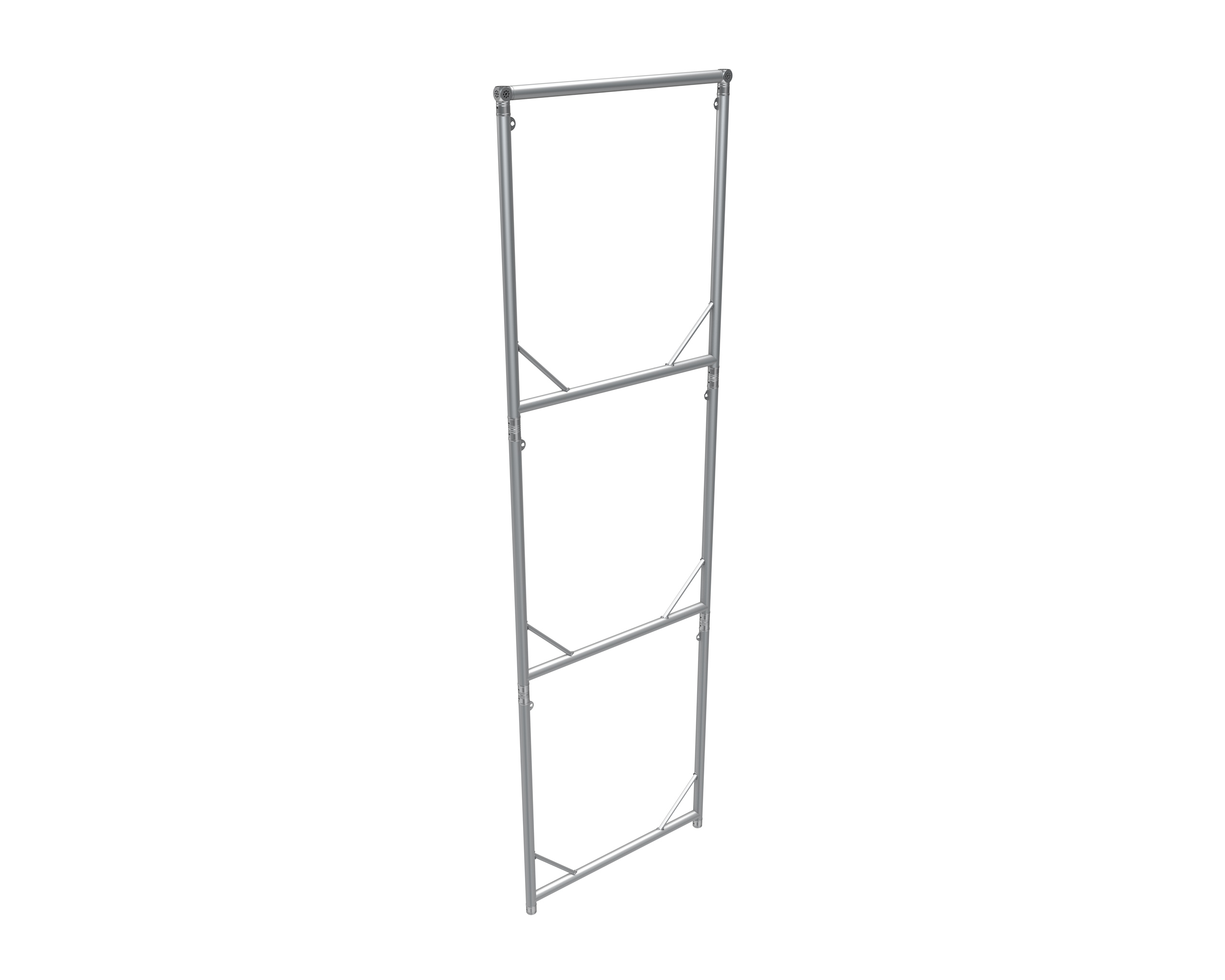

A combination of the two modules can carry a point load of max. 93 kg. By the functional security fasteners of each side of the U-Frame diverse types of lights can be mounted. For ladder configurations up to 10 U-Frame-100 / U-Top-100 combinations can be mounted one below the other, without further rigging actions.
The suspension can be made by the supplied ring eyes or with swivel couplers.
U-Frame 100 and U-Top 100 were developed by Global Truss for quick and easyto- use application in a variety of event environments.
U-Frame 100 and U-Top 100 are available as standard in silver and black. Other colors on request.
General
| Colour: | Aluminum |
|---|---|
| Material: | Al EN AW-6082 T6 |
Main pipe
| Diameter main pipe: | 50 mm |
|---|---|
| Wall thickness main pipe: | 3 mm |
Hardware

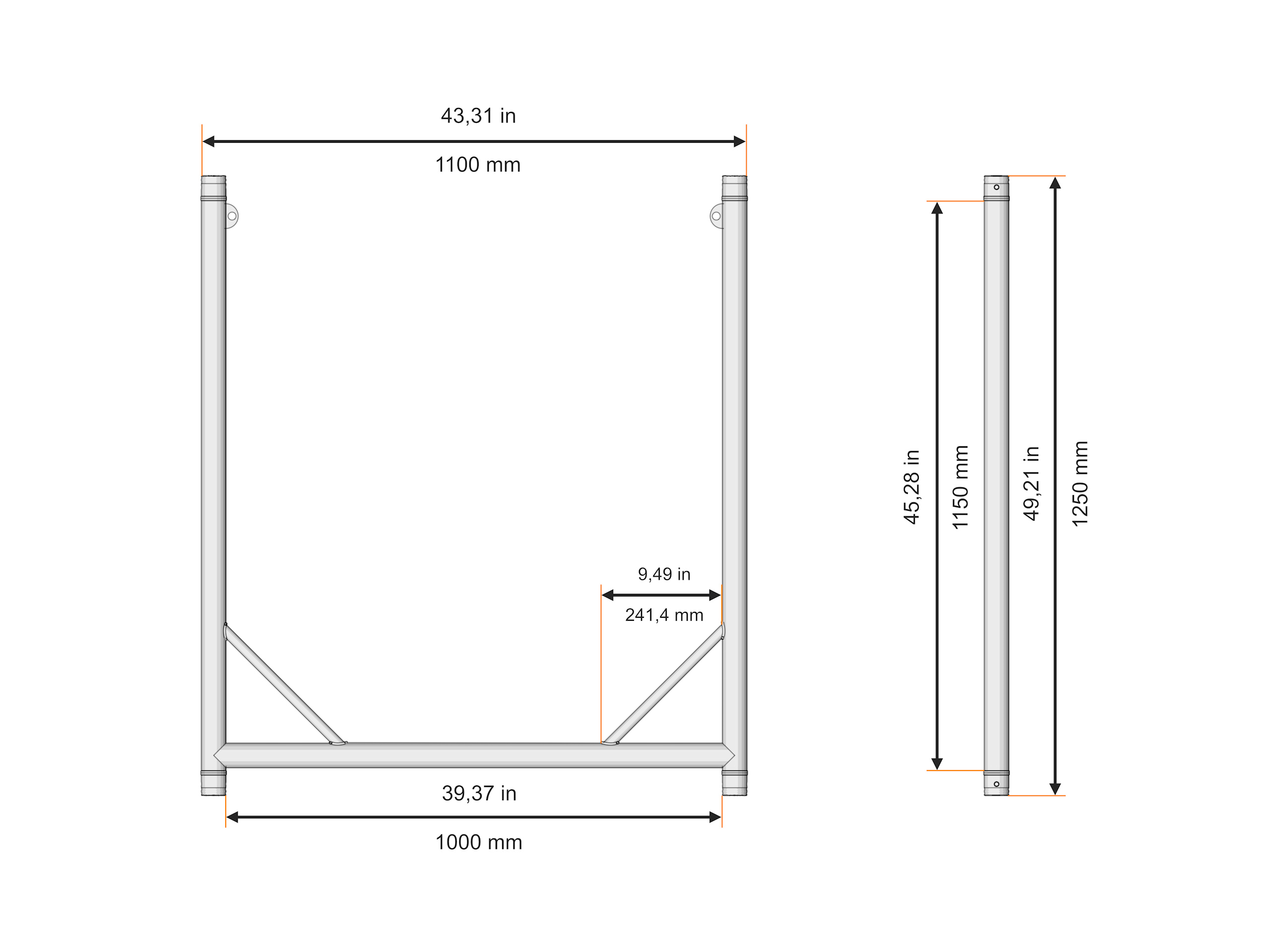

| Dimensions (L/W/H): | 1100 x 1250 x 50 mm |
|---|
Shipping Data
| Length: | 1100 mm |
|---|---|
| Width: | 1250 mm |
| Height: | 50 mm |
| Weight: | 7.3 kg |
| PU: | 1 |
