F32 200cm
SKU:
F32200
EAN: 4042659121992
- Length: 200 cm
- Pipe diameter: 50 mm
- Wall thickness: 2 mm
- TÜV Certified
- Conical connectors included
Non-binding price recommendation
€130.00
Interested in this product?
Register now
The F32 truss series by Global Truss is a TÜV approved 2-point system with an external dimension of 29cm. Grid constructions for exhibition stands or permanent installations are possible with this system. Short outrigs or cross ways with little loads can also be created. As a grid a maximum span of up to 10 meters can be used.

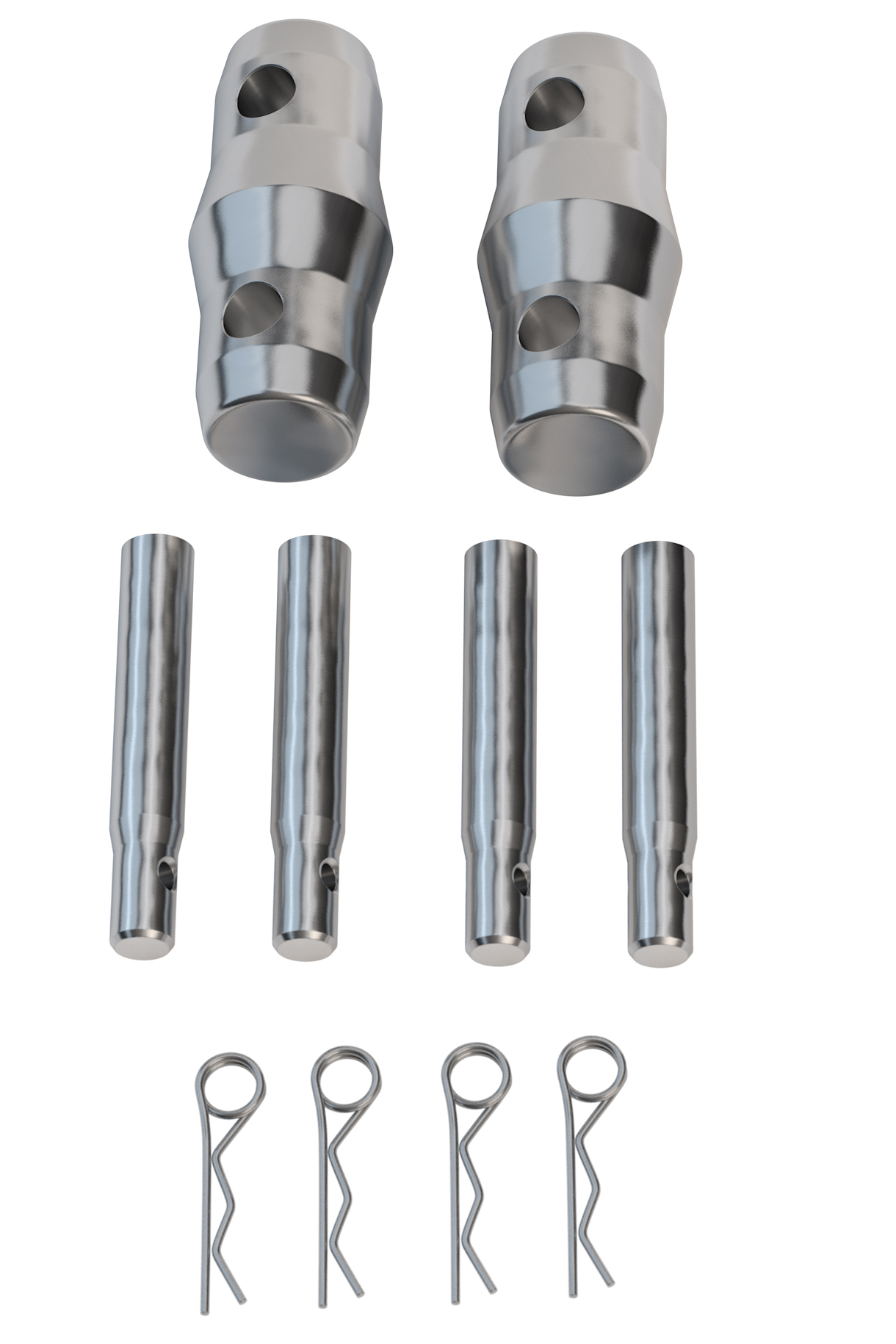

The F32 truss is built with 50 x 2mm main tubes and 20 x 2mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
General
| Colour: | Aluminum |
|---|---|
| TÜV certificate: | Yes |
| Material: | Al EN AW-6082 T6 |
Technical Data
| Number of points: | 2-point |
|---|---|
| Edge dimension: | 29 cm |
| System: | F32 |
| Type: | straight |
| Truss length: | 200 cm |
Main pipe
| Diameter main pipe: | 50 mm |
|---|---|
| Wall thickness main pipe: | 2 mm |
Brace
| Diameter Brace: | 20 mm |
|---|---|
| Wall thickness Brace: | 2 mm |
Hardware
| Weight: | 4,60 kg |
|---|
Shipping Data
| Length: | 2000 mm |
|---|---|
| Width: | 300 mm |
| Height: | 50 mm |
| Weight: | 4.6 kg |
| PU: | 1 |
