F32 100cm stage black
SKU:
F32100-B
EAN: 4042659066095
- Length: 100 cm
- Pipe diameter: 50 mm
- Wall thickness: 2 mm
- TÜV Certified
- Conical connectors included
Non-binding price recommendation
€117.00
Interested in this product?
Register now
The F32 truss series by Global Truss is a TÜV approved 2-point system with an external dimension of 29cm. Grid constructions for exhibition stands or permanent installations are possible with this system. Short outrigs or cross ways with little loads can also be created. As a grid a maximum span of up to 10 meters can be used.

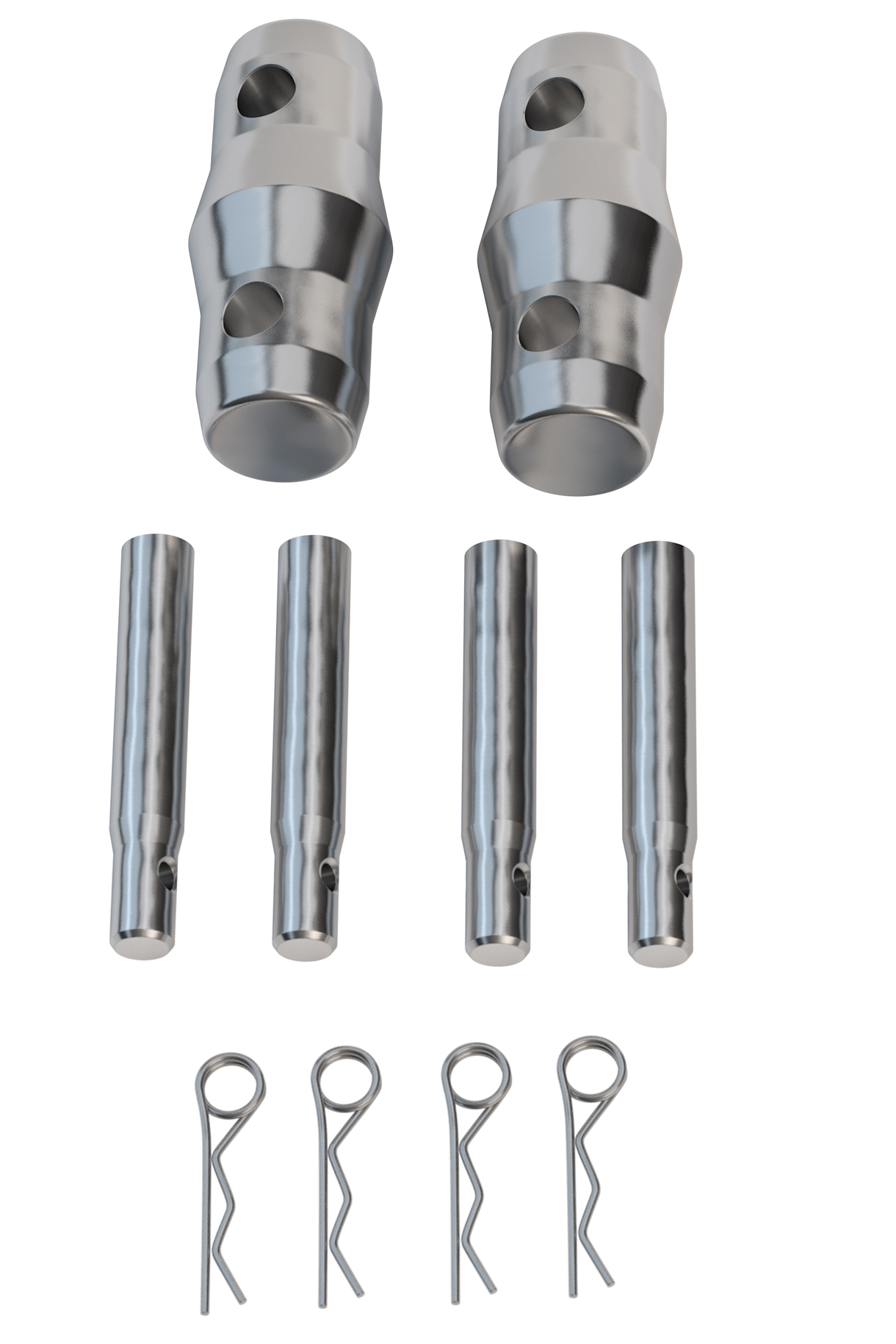

The F32 truss is built with 50 x 2mm main tubes and 20 x 2mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
General
| Colour: | black |
|---|---|
| TÜV certificate: | Yes |
| Material: | AIMgSi F32 |
Technical Data
| Number of points: | 2-point |
|---|---|
| Edge dimension: | 29 cm |
| System: | F32 |
| Type: | straight |
| Truss length: | 100 cm |
Main pipe
| Diameter main pipe: | 50 mm |
|---|---|
| Wall thickness main pipe: | 2 mm |
Brace
| Diameter Brace: | 20 mm |
|---|---|
| Wall thickness Brace: | 2 mm |
Hardware
| Weight: | 2,50 kg |
|---|
Shipping Data
| Length: | 1000 mm |
|---|---|
| Width: | 300 mm |
| Height: | 50 mm |
| Weight: | 2.5 kg |
| PU: | 1 |
