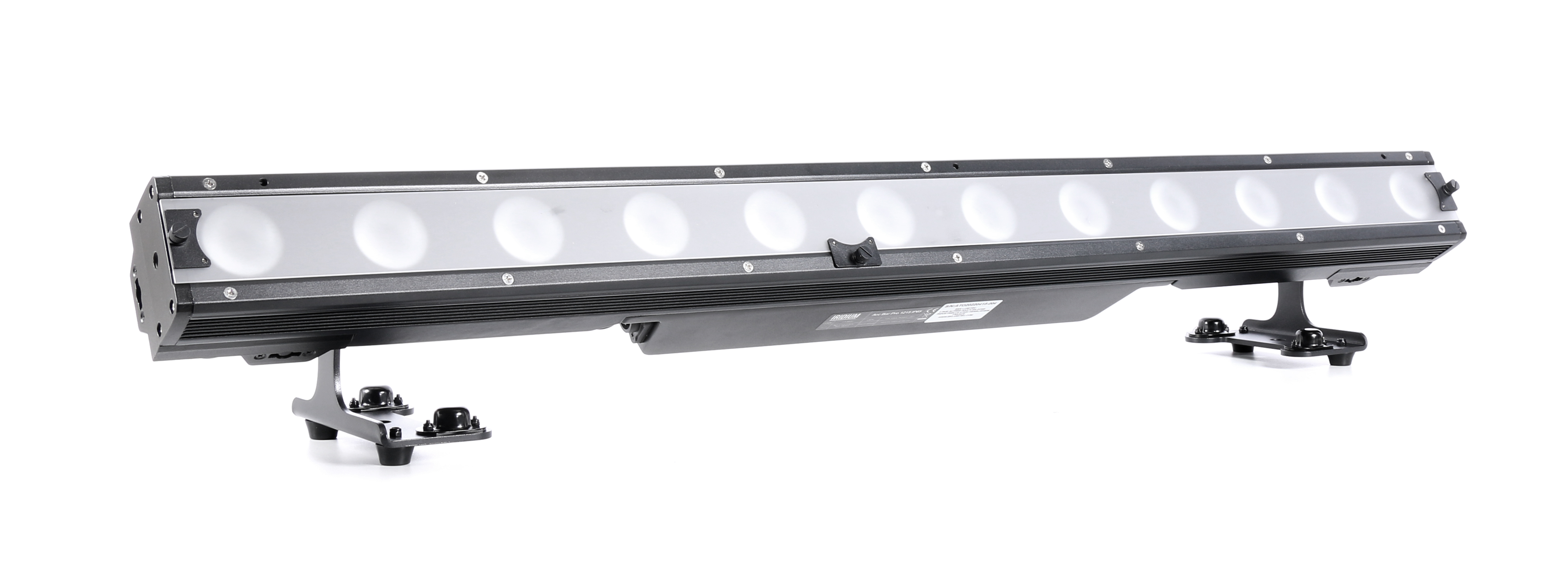

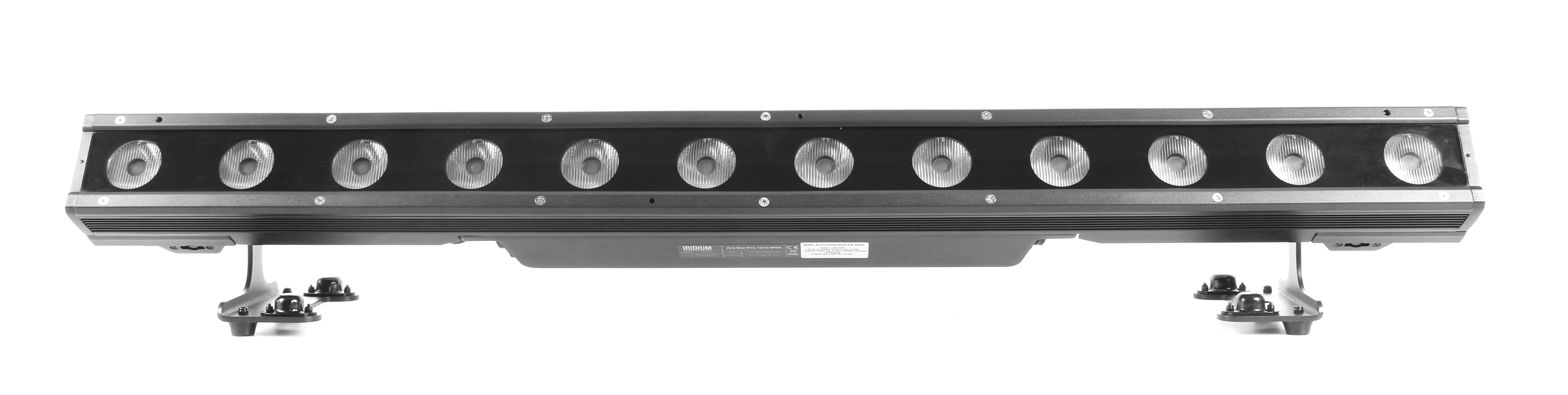

The Arc Bar Pro 1215 is an LED light bar with 12 x 15 Watt RGBW LEDs. So this fixture offers more than enough power to master even large-area illumination tasks. With a beam angle of 10 x 45degrees and IP65 certification, the bar is perfect for facade lighting and similar outdoor applications.

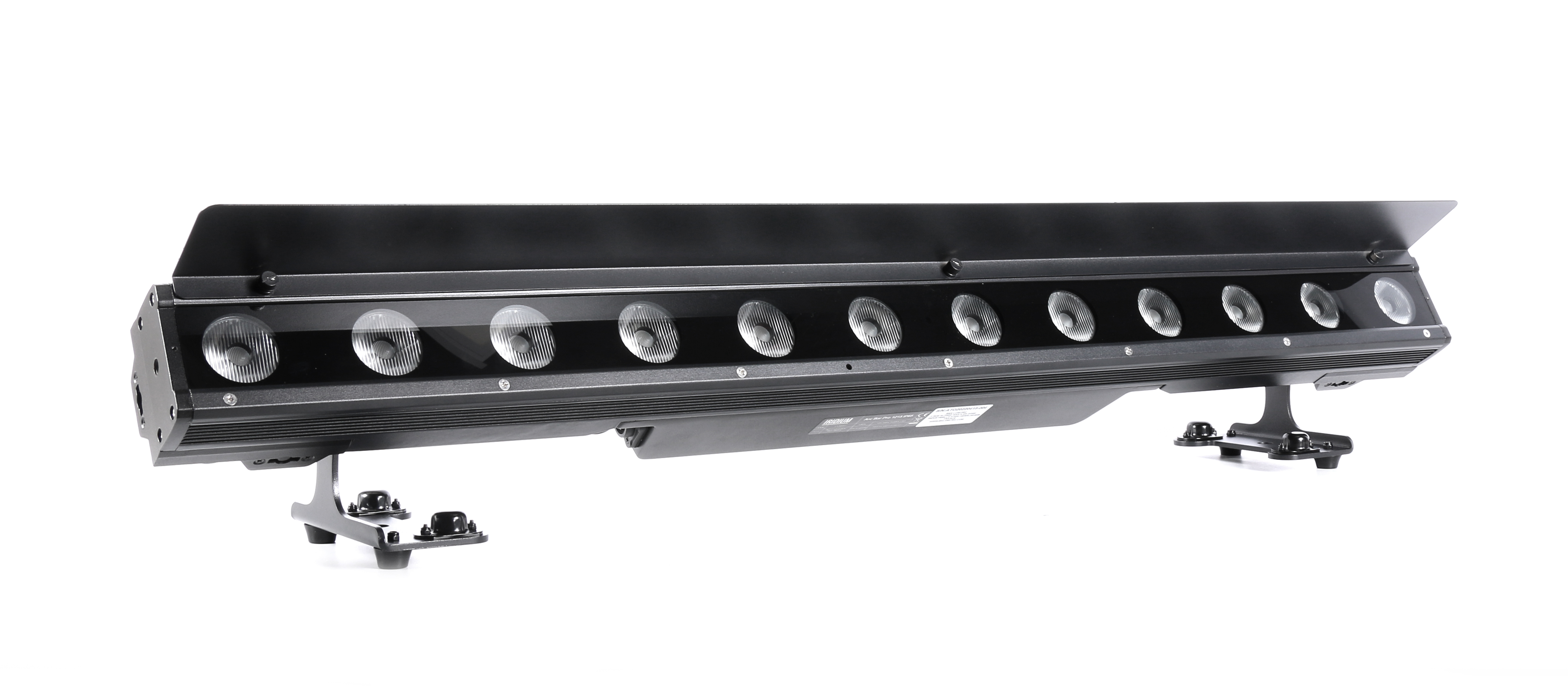

In addition to a barn door, the scope of delivery also includes a frost filter with which the user can adjust the beam angle further. The Arc Bar Pro 1215 can be operated via DMX512, in stand-alone mode or via IR controller.
Title File Size File extension Download
Manual (english) 3613kb pdf
Manual (french) 1379kb pdf
Manual (german) 3916kb pdf

Power supply

Voltage: 100 ~ 240 V AC / 50 ~ 60 Hz
Power consumption max.: 160 W

Light source

Colour spectrum: RGBW
LM type: LED Xin1
Modulation: No
Number / Power: 12 x 15 W
Power: 160 W

Optics

Beam angle: 10x45°
Focus: No
Zoom: No

Connections

Power in: Seetronic IP65
Power out: Seetronic IP65
XLR in/out: Seetronic IP65

Controlling

Artnet: No
RDM: Yes
Automatic: Yes
Sound-to-Light: No
Master-Slave: Yes
DMX512: Yes
Number of DMX channels: 3 / 7 / 11 / 48 / 52

Hardware

Dimensions (L/W/H): 1017 x 140 x 216 mm
Protection class: IP65
Weight: 9,10 kg

Shipping Data

Length: 1085 mm
Width: 210 mm
Height: 205 mm
Weight: 12.6 kg
PU: 1
