iM-Type PA Tower 9m
SKU:
GT-iMPA
EAN: 4251665204371
- 9,65m height PA Tower with iM-Type truss
- 500 kg load capacity
- Including proof of stability
Non-binding price recommendation
Price on request
Interested in this product?
Register now

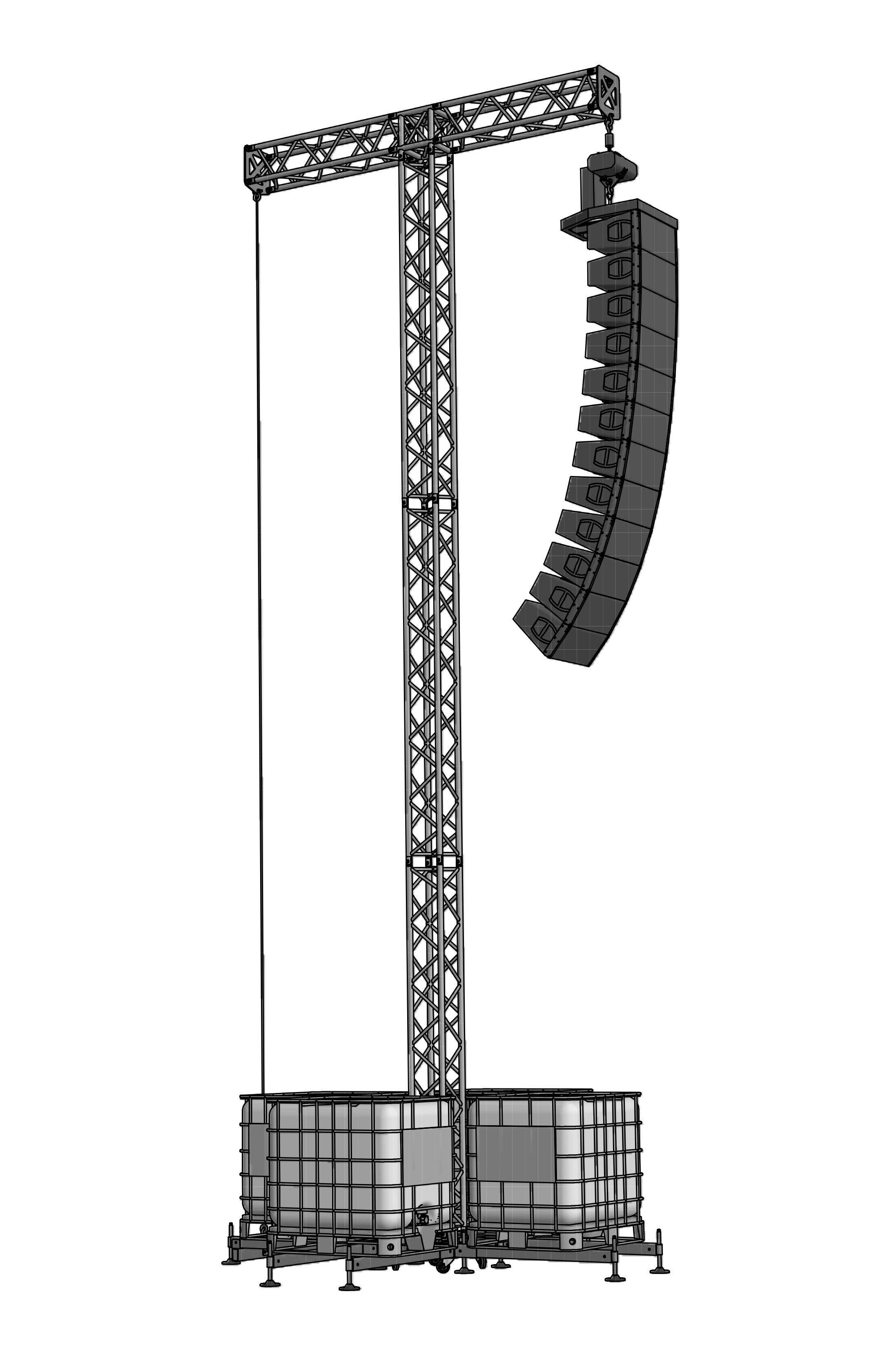

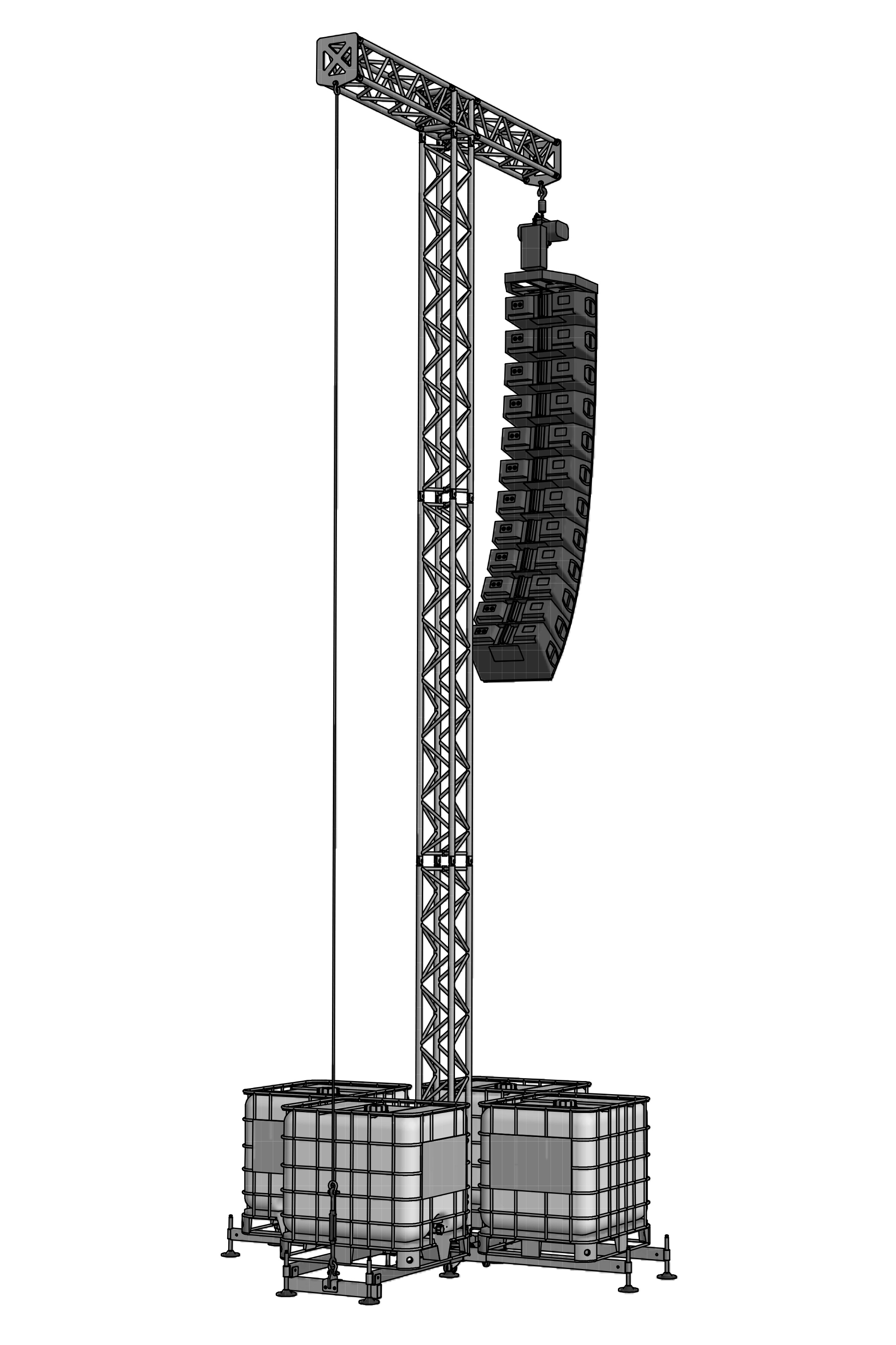

The new Global Truss iM-Type PA-tower offers an uncomplicated construction for a free standing PA-tower for big outdoor applications. Based on the Multi-Tower-Basement the tower can realize a cantilever up to 1,5 meter.

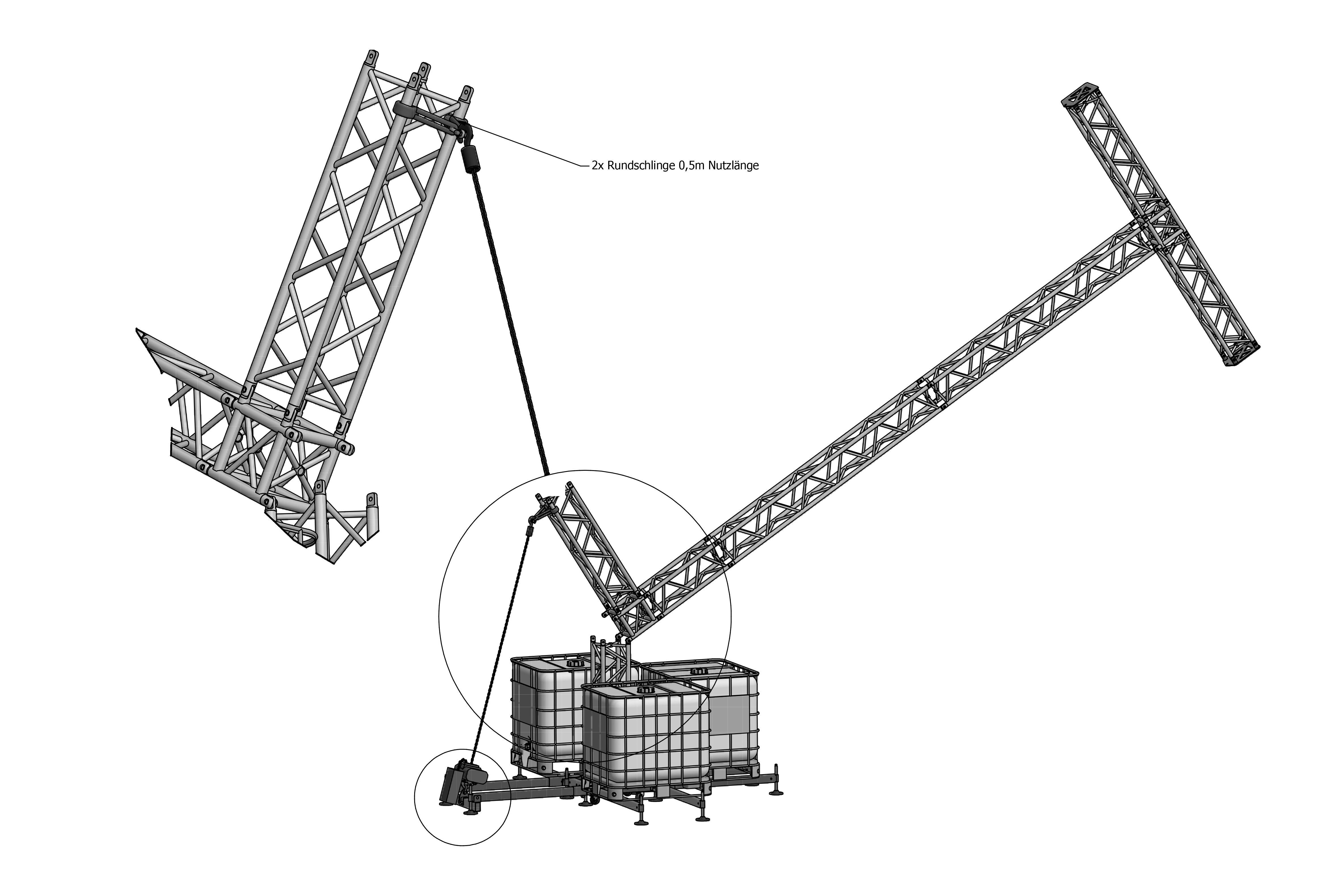

The PA system can be lifted with an electric chain hoist and connected to the mounting plates at a height of 9,30 meters. The floor area is 3.8 x 3.8 meters and the maximum ballast 3600 kg.
Features:
- Load capacity: 500 kg
- Maximum wind load: 3,0 m²
- Height: 9,65 m
- Including proof of stability

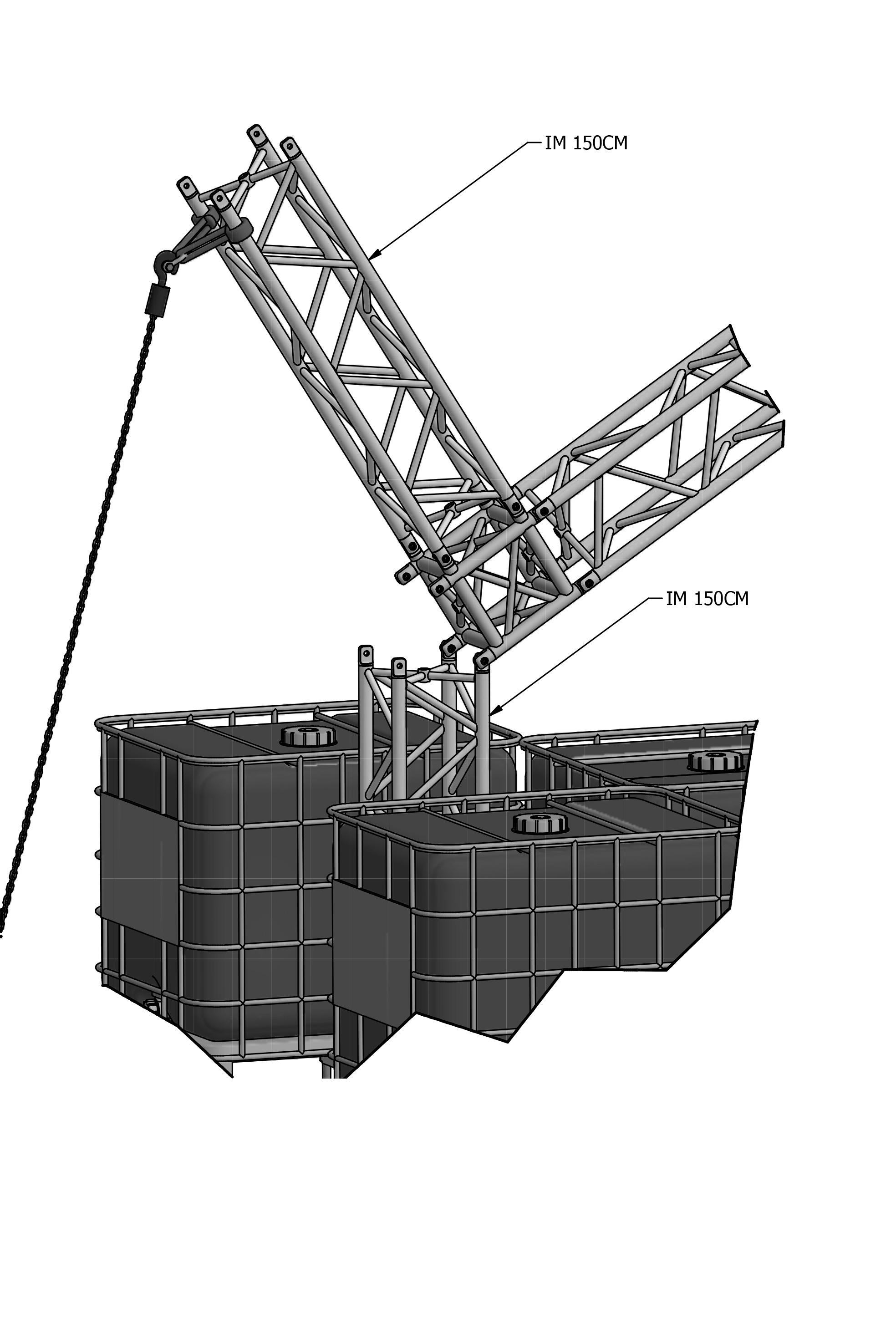

- iM type truss system
- including lifting arm
