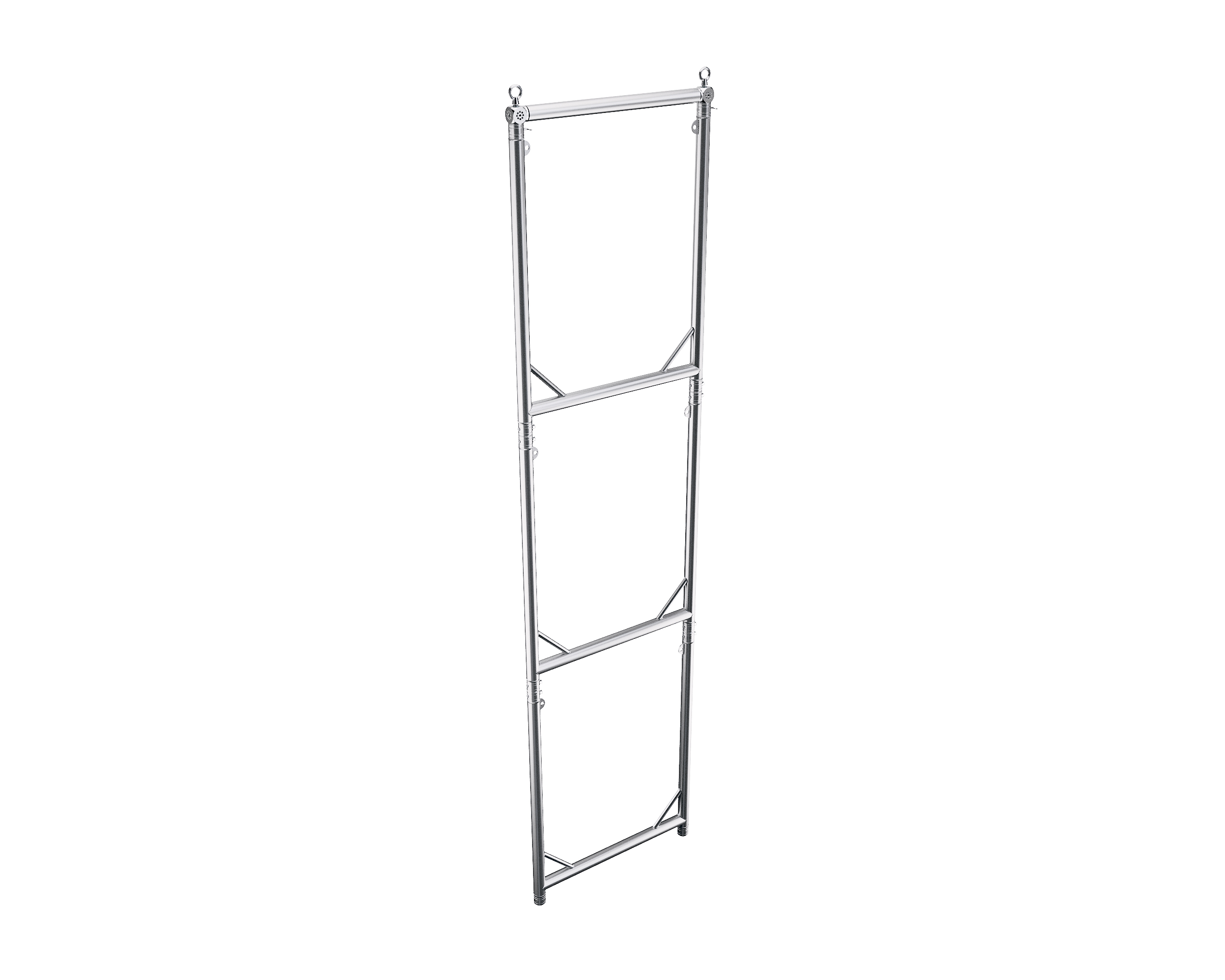

U-Top 70
EAN: 4251665076923
- Suspension for U-Frame 70 module,
- incl. 2x half cone, conical pin + R-clip, and M12 ring bolts
Non-binding price recommendation
€183.50
With the U-Frame 70 and the matching U-Top 70, Global Truss offers a highly flexible and modular solution for creative stage design. The system allows countless configurations – both in suspended and standing setups.
In combination, the U-Frame 70 and U-Top 70 can support a point load of up to 94 kg. The practical safety mounts on all sides of the U-Frame allow the installation of a wide variety of spotlight types. For ladder configurations, up to ten modules can be connected vertically.
Suspension can be carried out either using the supplied ring eyelets (on the U-Top 70) or with optional swivel couplers, ensuring maximum flexibility during installation. The system has been designed for quick and straightforward use, making it suitable for a wide range of event environments – from touring to permanent installations.
The U-Frame 70 and U-Top 70 are available as standard in silver and black, with custom colors available on request.
General
| Colour: | Aluminum |
|---|---|
| Material: | Al EN AW-6082 T6 |
Main pipe
| Diameter main pipe: | 50 mm |
|---|---|
| Wall thickness main pipe: | 3 mm |
Hardware
| Dimensions (L/W/H): | 820 x 170 x 60 mm |
|---|---|
| Weight: | 2,05 kg |
Shipping Data
| Length: | 820 mm |
|---|---|
| Width: | 170 mm |
| Height: | 60 mm |
| Weight: | 2.45 kg |
| PU: | 1 |
