Swivel Coupler Slim 48-51/30/250kg
SKU:
5025
EAN: 4042659110033
- Compatibility: 48-51 mm
- Width: 30 mm
- Tensile load: 250 kg
- TÜV Certified
Non-binding price recommendation
€23.40
Interested in this product?
Register now

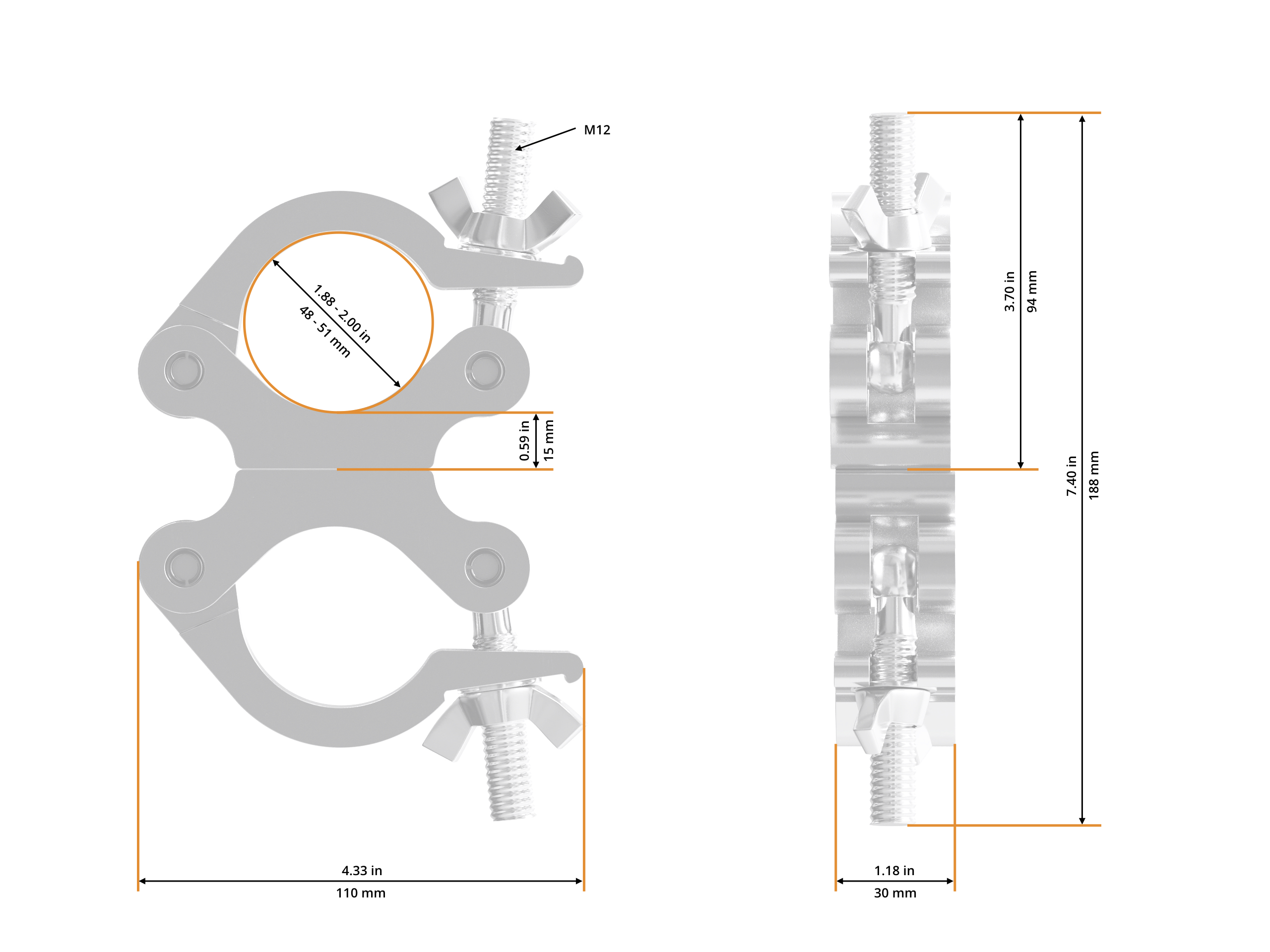

This coupler has a width of just 30mm allowing it to better fit to a truss, and avoid any cross braces. The middle joint of this coupler pivots allowing it to be positioned at any angle.
General
| Approved by: | DIN EN 13814:2004 |
|---|---|
| Compatibility: | 48-51 mm |
| Colour: | Aluminum |
| TÜV certificate: | Yes |
| Material: | Aluminum 6061 T6 |
Fittings
| Clasp: | M12 wing nut |
|---|---|
| Retaining screw: | Aufnehmer für 48-51mm, drehbar gekoppelt durch Bolzen |
Technical Data
| Width: | 30 mm |
|---|---|
| Tensile load: | 250,00 kg |
Shipping Data
| Length: | 120 mm |
|---|---|
| Width: | 80 mm |
| Height: | 30 mm |
| Weight: | 0.68 kg |
| PU: | 20 |
