Swivel Coupler 48-51/50/500kg
SKU:
8231
EAN: 4042659109501
- Compatibility: 48-51 mm
- Width: 50 mm
- Tensile load: 500 kg
- TÜV Certified
Non-binding price recommendation
€31.90
Interested in this product?
Register now

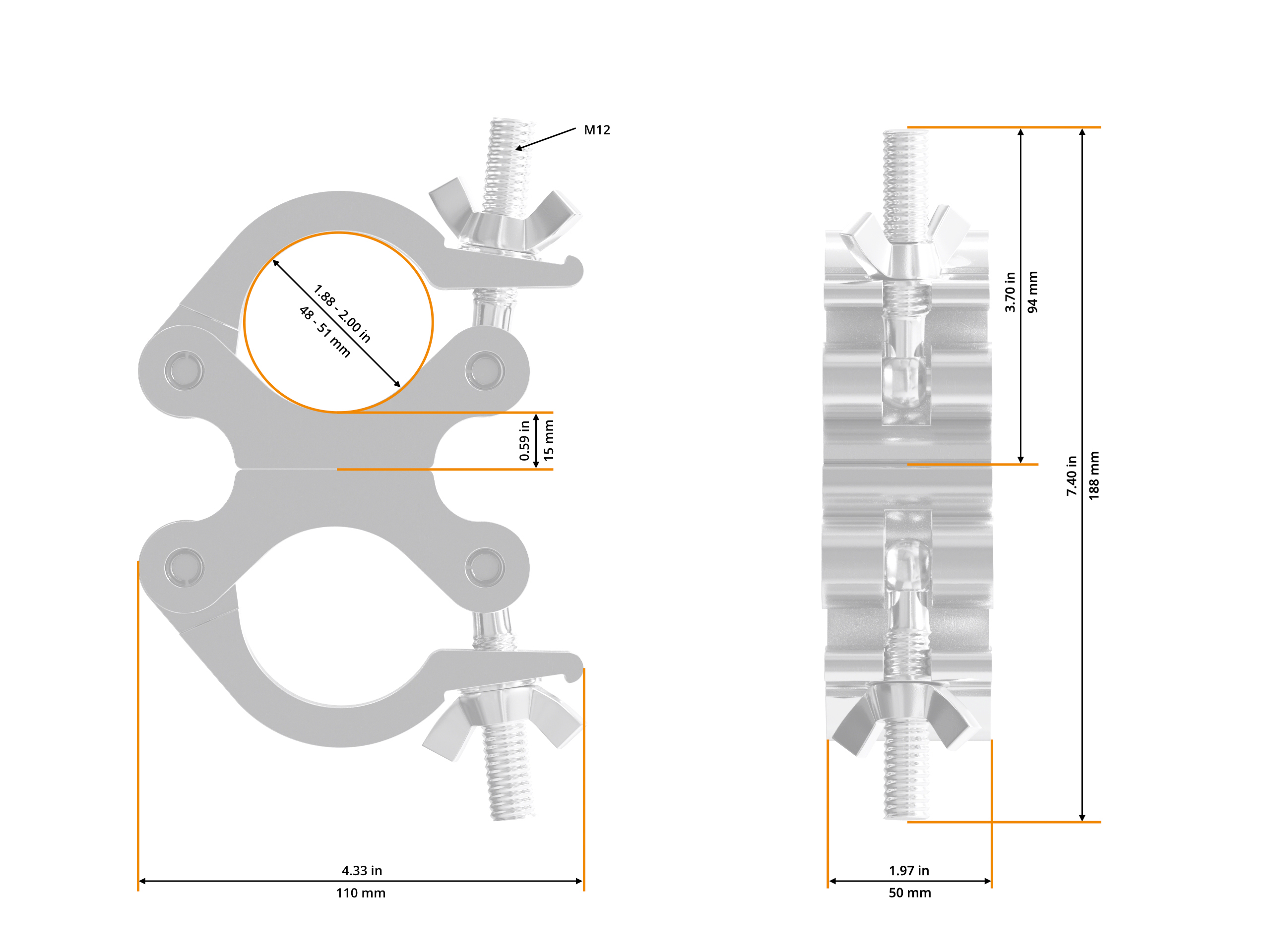

The double construction of the 500kg coupler allows you to connect two main chords securely. The middle joint pivots, making any angle possible.
General
| Approved by: | DIN EN 13814:2004 |
|---|---|
| Compatibility: | 48-51 mm |
| Colour: | Aluminum |
| TÜV certificate: | Yes |
| Material: | Aluminum 6061 T6 |
Fittings
| Clasp: | M12 wing nut |
|---|---|
| Retaining screw: | Aufnehmer für 48-51mm, drehbar gekoppelt durch Bolzen |
Technical Data
| Width: | 50 mm |
|---|---|
| Tensile load: | 500,00 kg |
Shipping Data
| Length: | 170 mm |
|---|---|
| Width: | 80 mm |
| Height: | 50 mm |
| Weight: | 1.03 kg |
| PU: | 14 |
