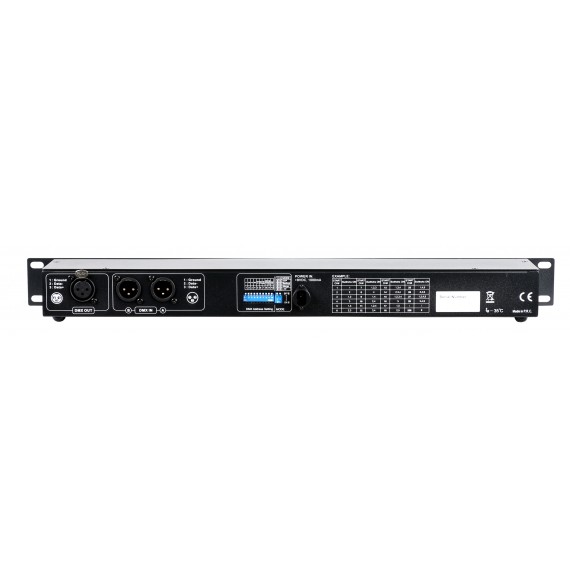

M-2512R Merger
SKU:
1364
EAN: 3701098200811
- 2x DMX in
- 1x DMX out
- HTP / LTP
- Merge / add / sub
Non-binding price recommendation
€119.00
Interested in this product?
Register now
DMX signals are digital data streams which can not be added by connecting in series. Therefore you need a converter which is equipped with two receivers and one transmitter. This device receives all data and emits them exactly composed. The merging can take place in different kinds: signal cohere, filter the highest signal and pass on, convert addresses etc.
Power supply
| Voltage: | 9V DC; 1000mA min. |
|---|
Connections
| XLR in/out: | 3pol |
|---|
Controlling
| DMX512: | Yes |
|---|
Hardware
| Dimensions (L/W/H): | 482 x 45 x 73 mm |
|---|---|
| Weight: | 1,13 kg |
Shipping Data
| Length: | 624 mm |
|---|---|
| Width: | 107 mm |
| Height: | 76 mm |
| Weight: | 1.35 kg |
| PU: | 12 |
