Half Coupler Slim 48-51/30/300kg
SKU:
5035-2
EAN: 4042659108467
- Kompatibel: 48-51 mm
- Breite: 30 mm
- Zugbelastung: 300 kg
- TÜV Zertifiziert
Non-binding price recommendation
€12.90
Interested in this product?
Register now

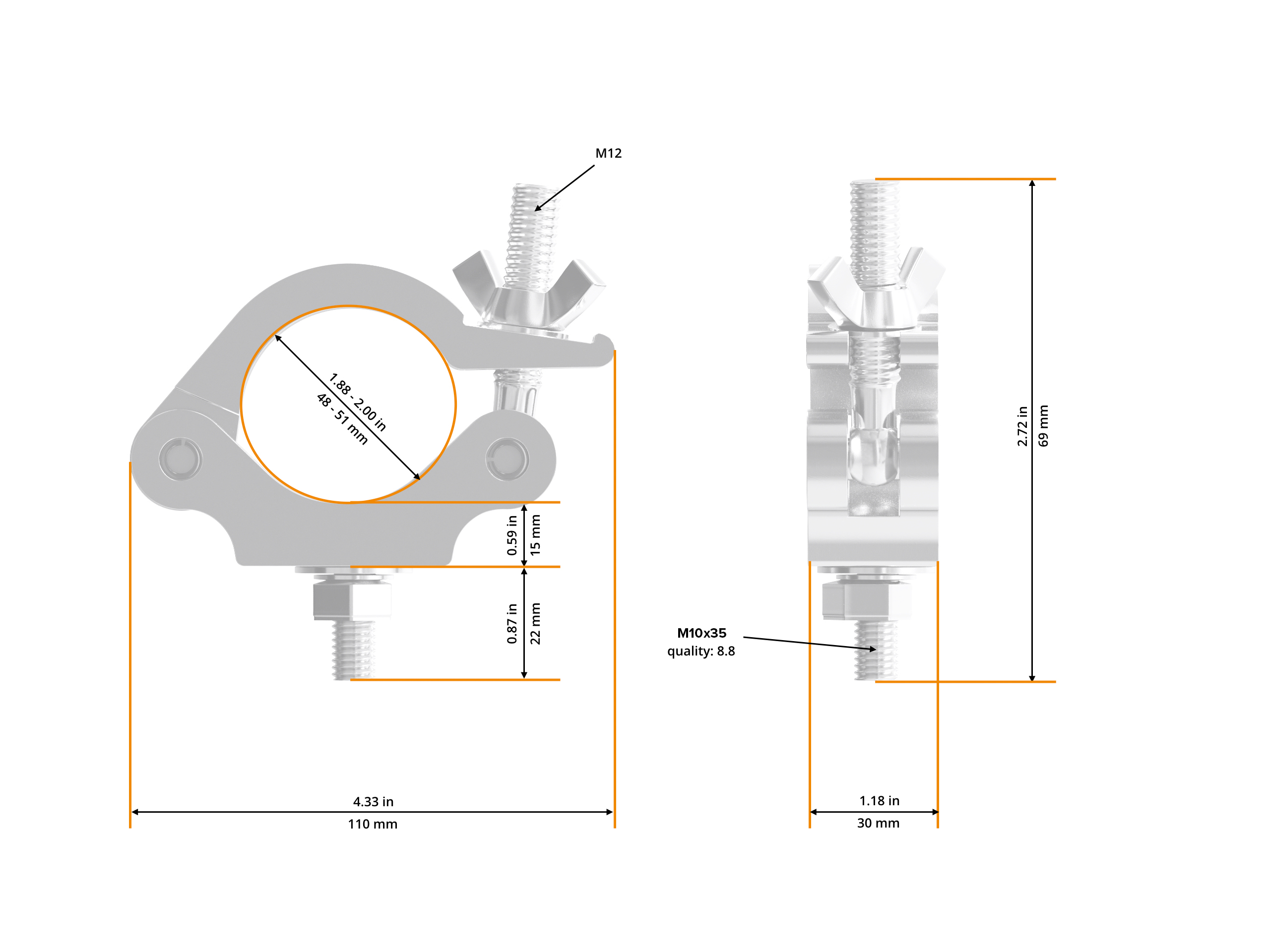

This narrow truss coupler is impressive due to its width of only 30mm. It fastens more effectively and more simply to the truss, with less chance of cross bracing getting in the way. The load carrying capacity is rated at a sturdy 300kg.
General
| Approved by: | DIN EN 13814:2004 |
|---|---|
| Compatibility: | 48-51 mm |
| Colour: | Aluminum |
| TÜV certificate: | Yes |
| Material: | Aluminum 6061 T6 |
Fittings
| Clasp: | M12 wing nut |
|---|---|
| Retaining screw: | M10 device screw, snap ring, washer |
Technical Data
| Width: | 30 mm |
|---|---|
| Tensile load: | 300,00 kg |
Shipping Data
| Length: | 100 mm |
|---|---|
| Width: | 80 mm |
| Height: | 40 mm |
| Weight: | 0.36 kg |
| PU: | 40 |
