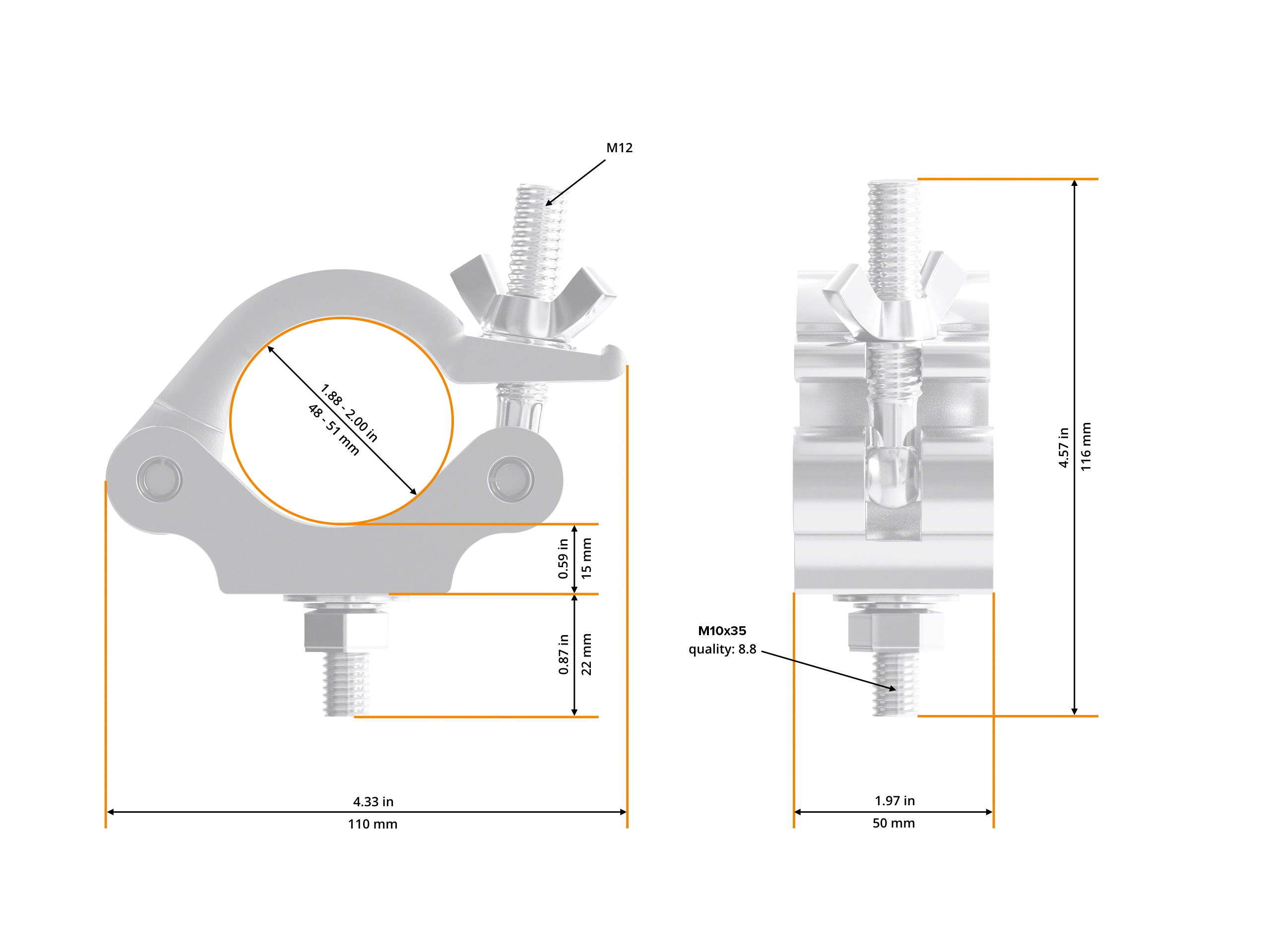

Half Coupler 48-51/50/500kg stage black
SKU:
823-B
EAN: 4042659134619
- Compatibility: 48-51 mm
- Width: 50 mm
- Tensile load: 500 kg
- TÜV Certified
Non-binding price recommendation
€17.20
Interested in this product?
Register now
This coupler is the standard in heavy duty couplers and can accommodate up to 500kg tensile load. Due to its width, it offers substantially more load bearing surface, and is thus better secured.
General
| Approved by: | DIN EN 13814:2004 |
|---|---|
| Compatibility: | 48-51 mm |
| Colour: | black |
| TÜV certificate: | Yes |
| Material: | Aluminum 6061 T6 |
Fittings
| Clasp: | M12 wing nut |
|---|---|
| Retaining screw: | M10 device screw, snap ring, washer |
Technical Data
| Width: | 50 mm |
|---|---|
| Tensile load: | 500,00 kg |
Shipping Data
| Length: | 120 mm |
|---|---|
| Width: | 80 mm |
| Height: | 40 mm |
| Weight: | 0.54 kg |
| PU: | 25 |
