FanBase 600
SKU:
108333
EAN: 3701098206172
- Diameter: 60 cm
- Power output protection socket / powerCON
- stepless fan
- Power connection via powerCON
- 4 castors (4 braked)
Non-binding price recommendation
€599.00
Interested in this product?
Register now

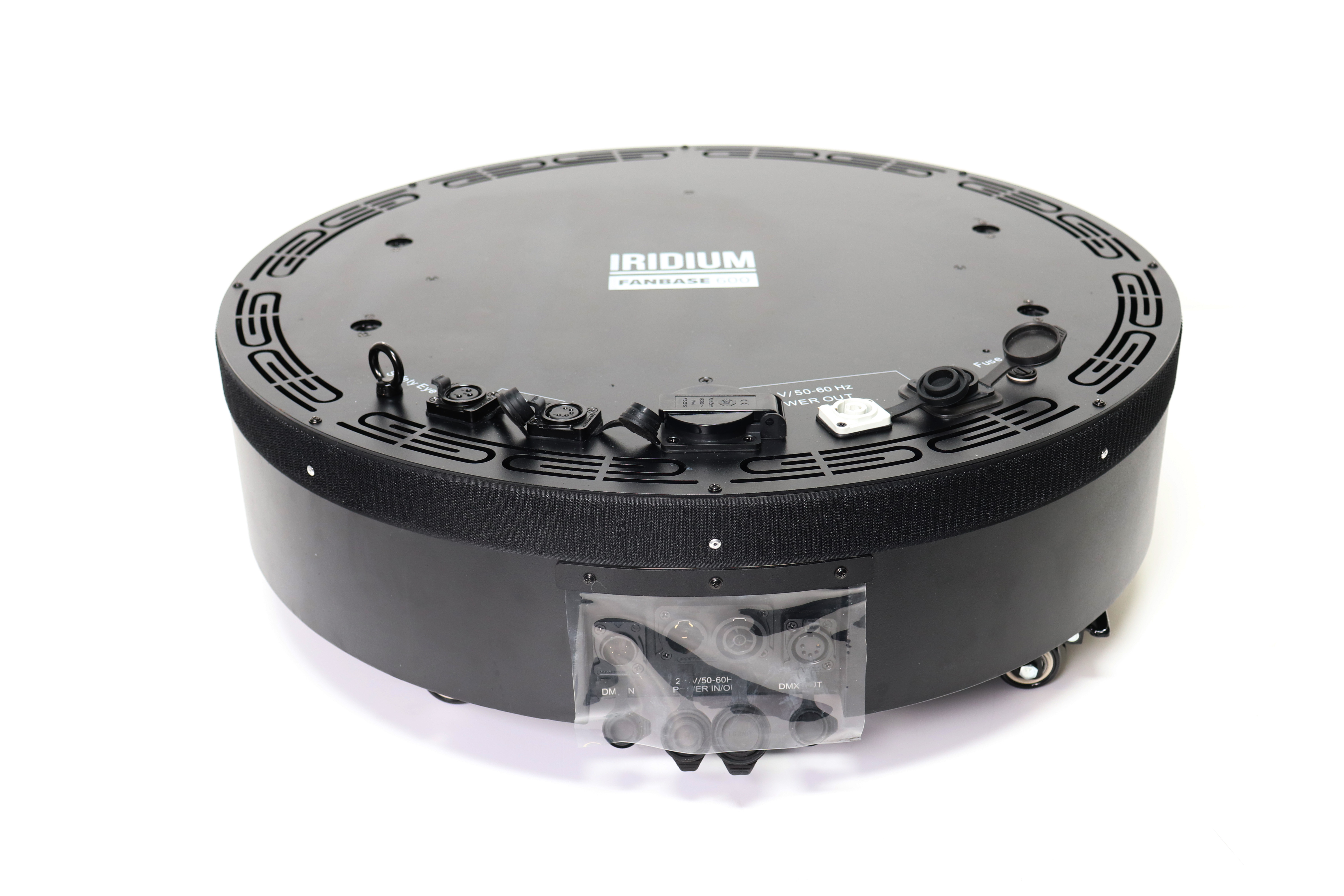

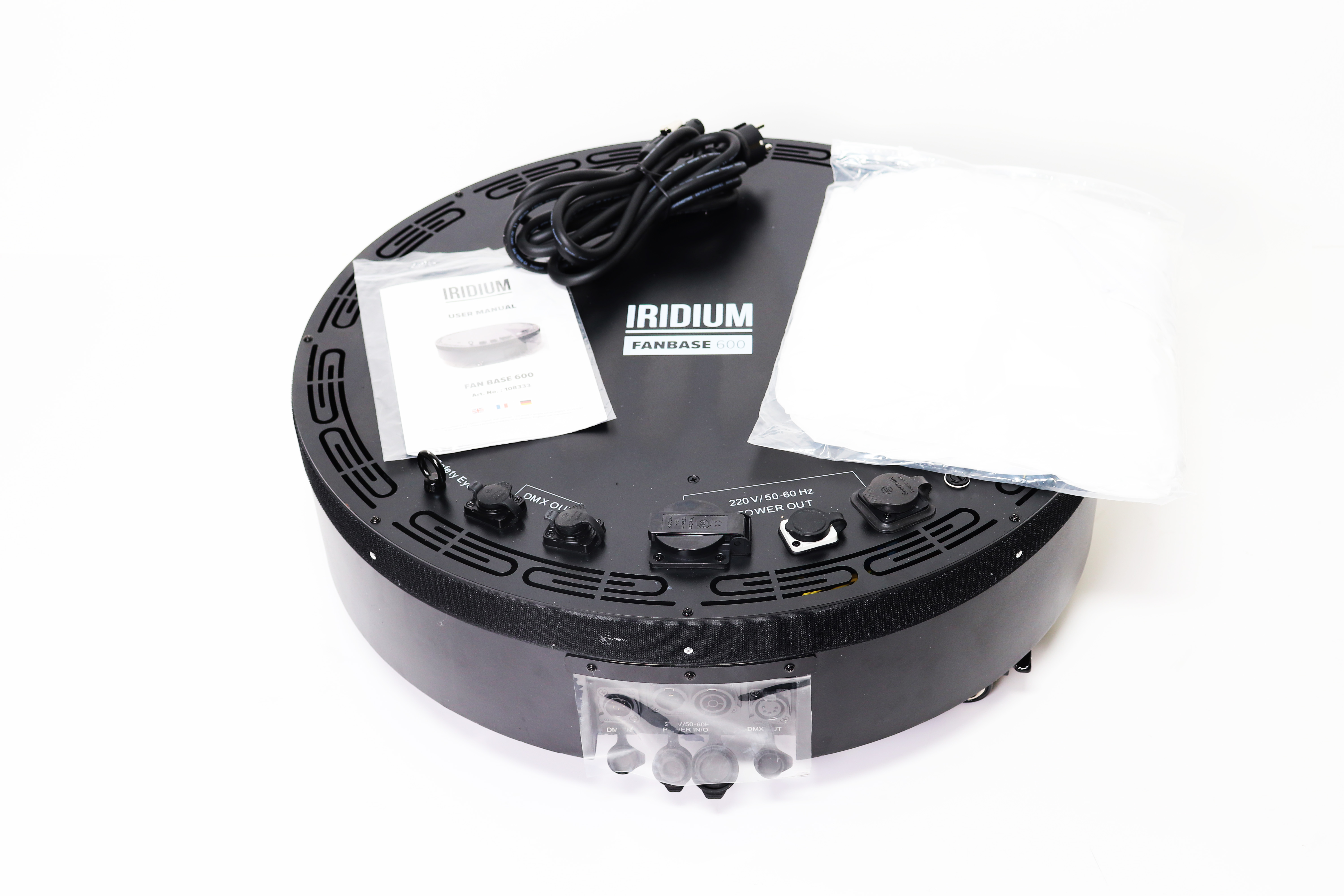

The IRIDIUM FanBase 600 is a 60cm diameter fan base designed for spotlights or moving heads. It features power and DMX outputs and can be mounted on a truss pole using its four M12 threaded holes. Four half-cone connectors are included.

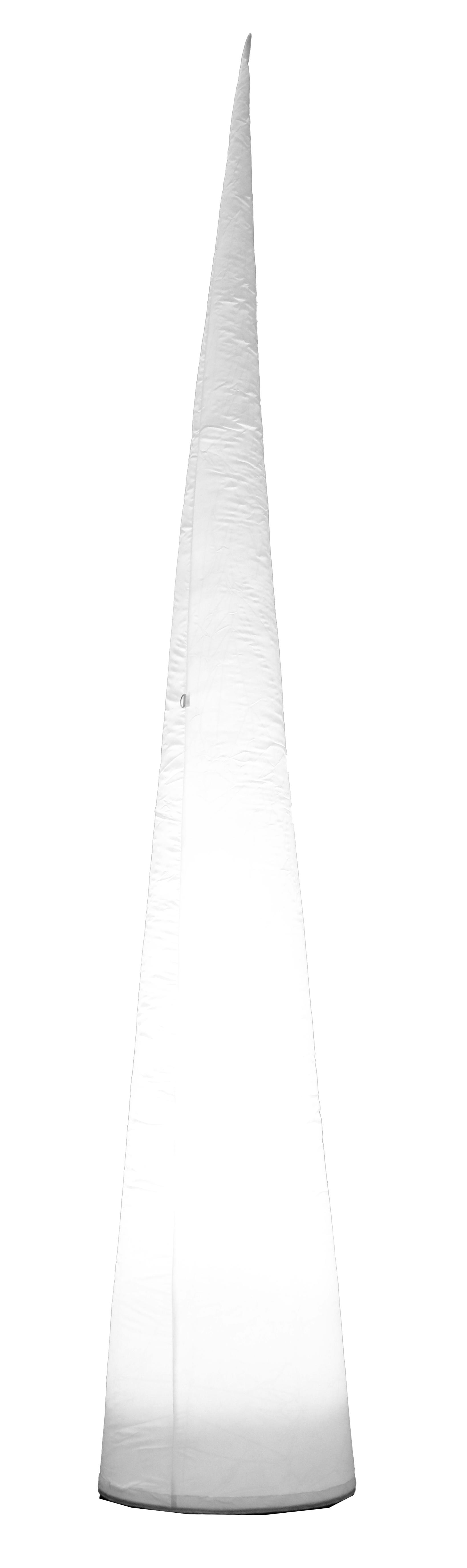

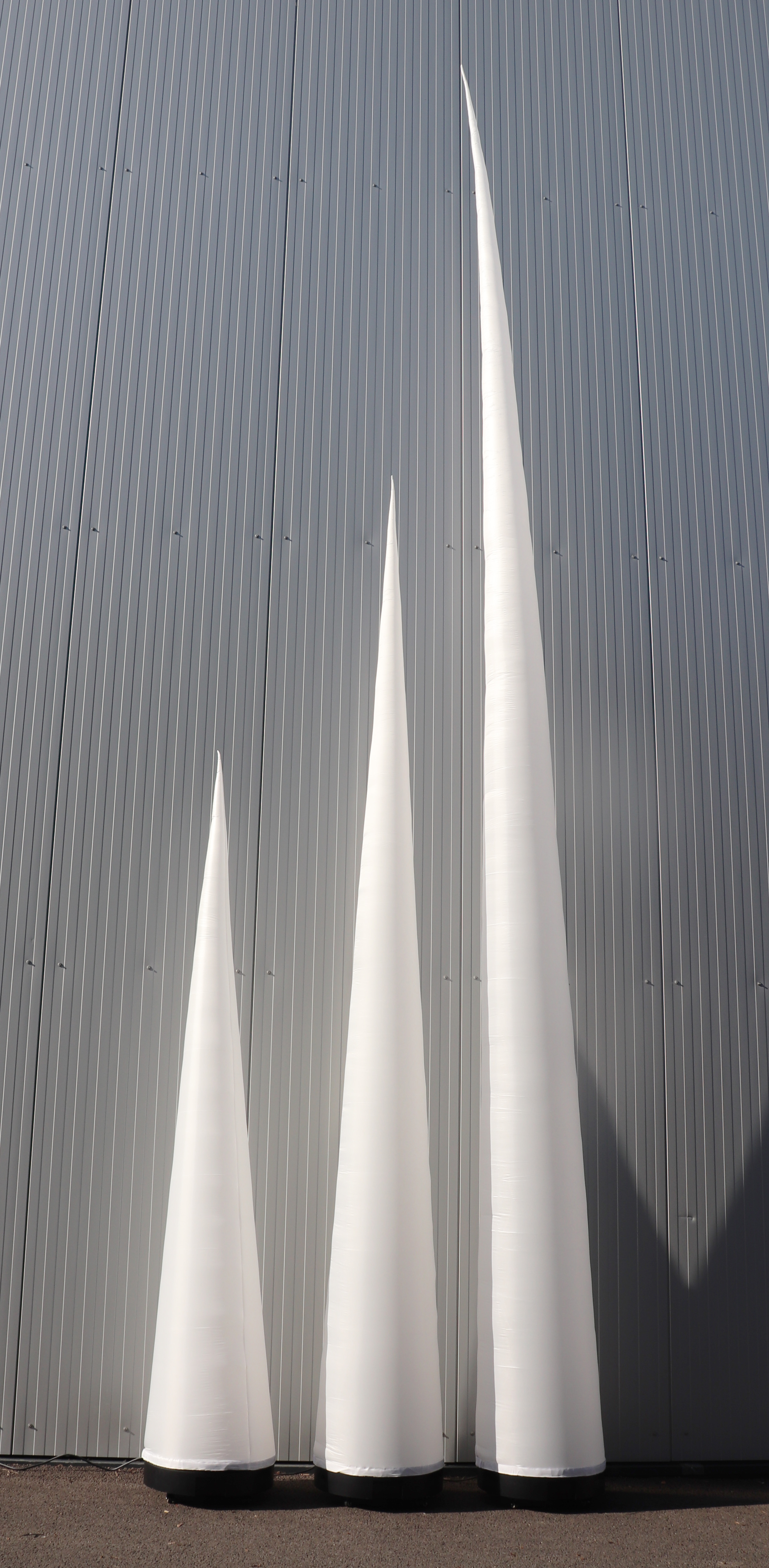

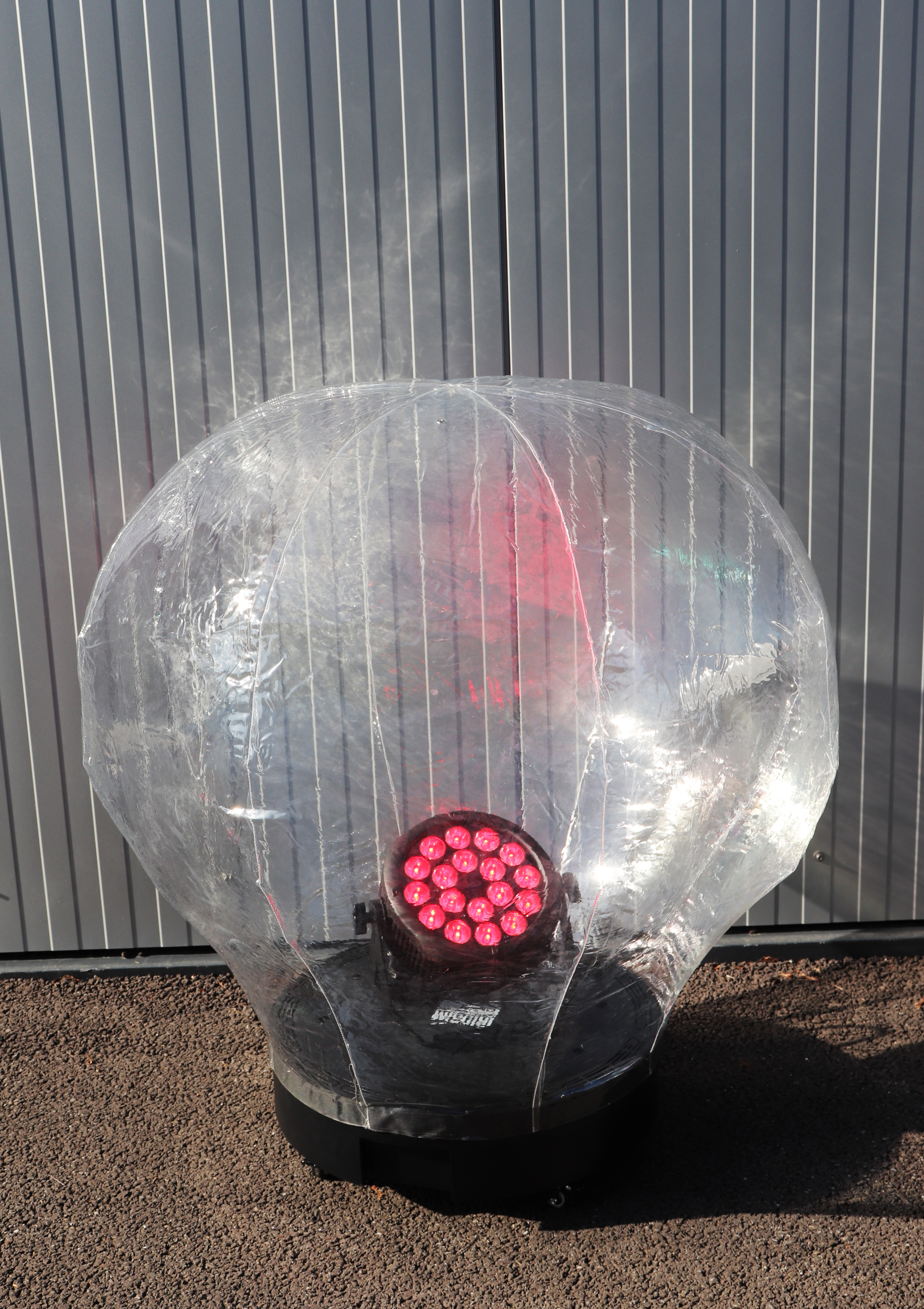

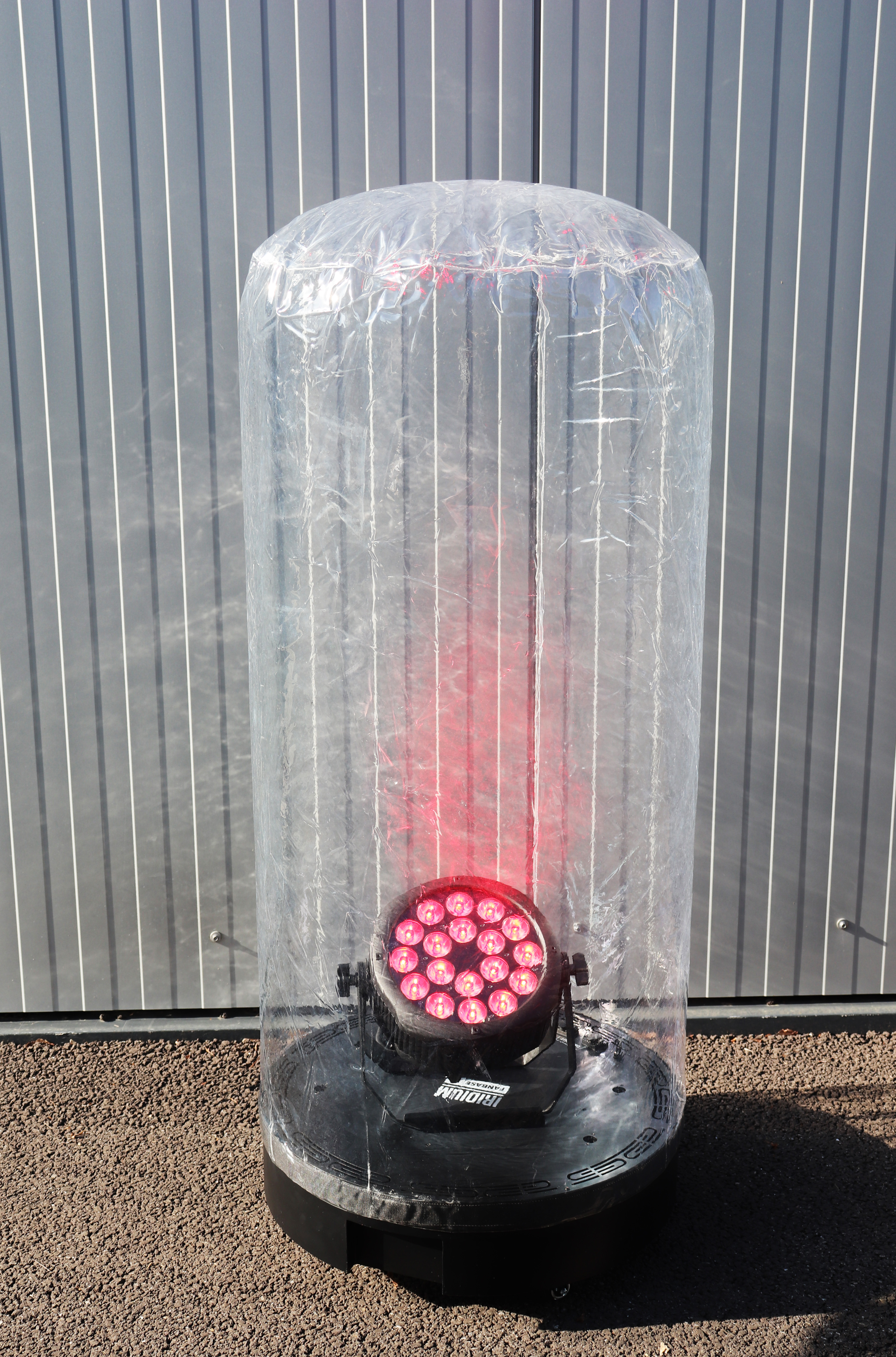

The IRIDIUM FanBase 600 is a durable and versatile base for professional lighting setups. It offers optional rain covers for weather protection: the ball rain cover (Code 108337) fits moving heads up to 85cm, and the cylindrical rain cover (Code 108336) fits up to 62cm. A 3.5m white air cone is included, with additional heights available.

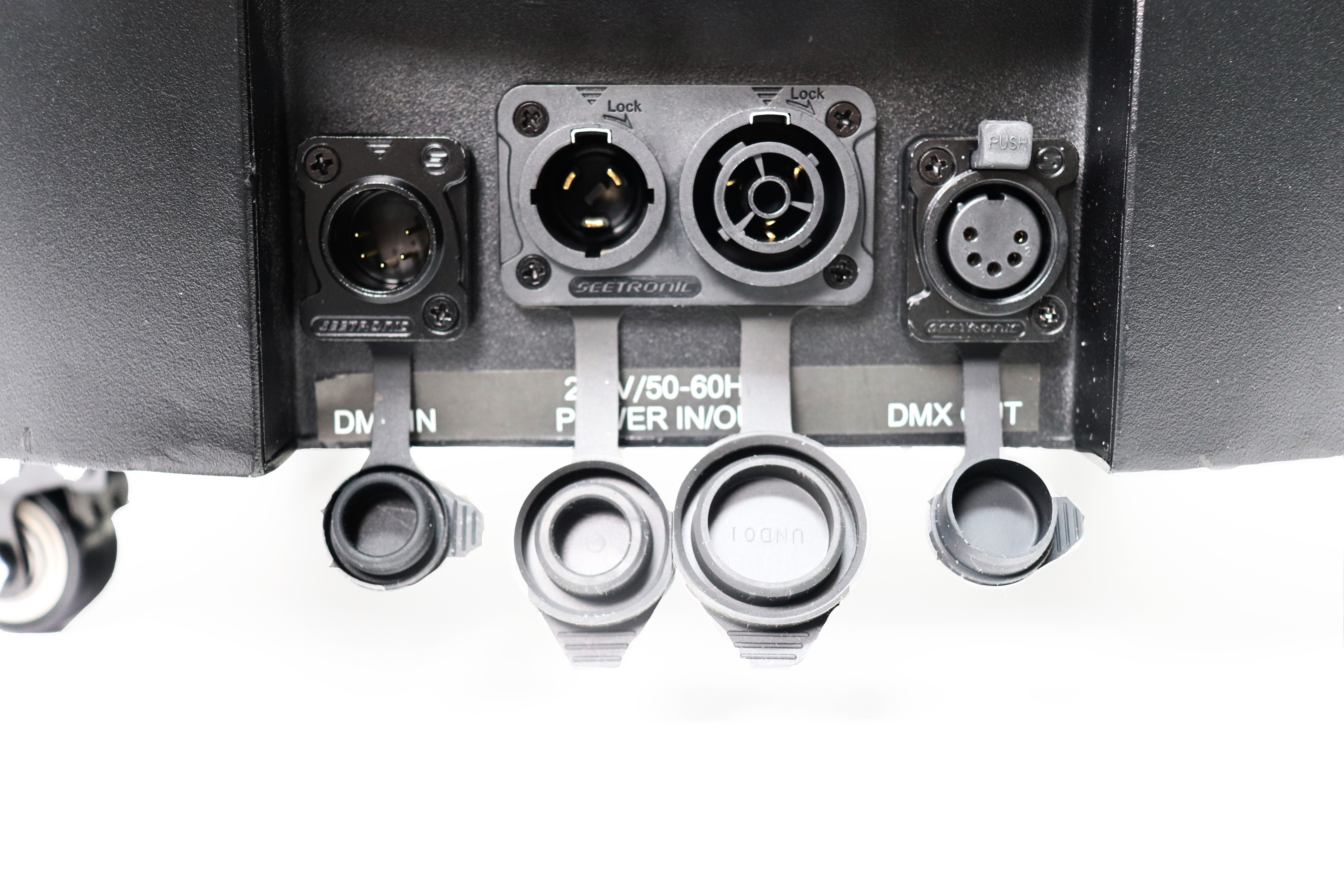

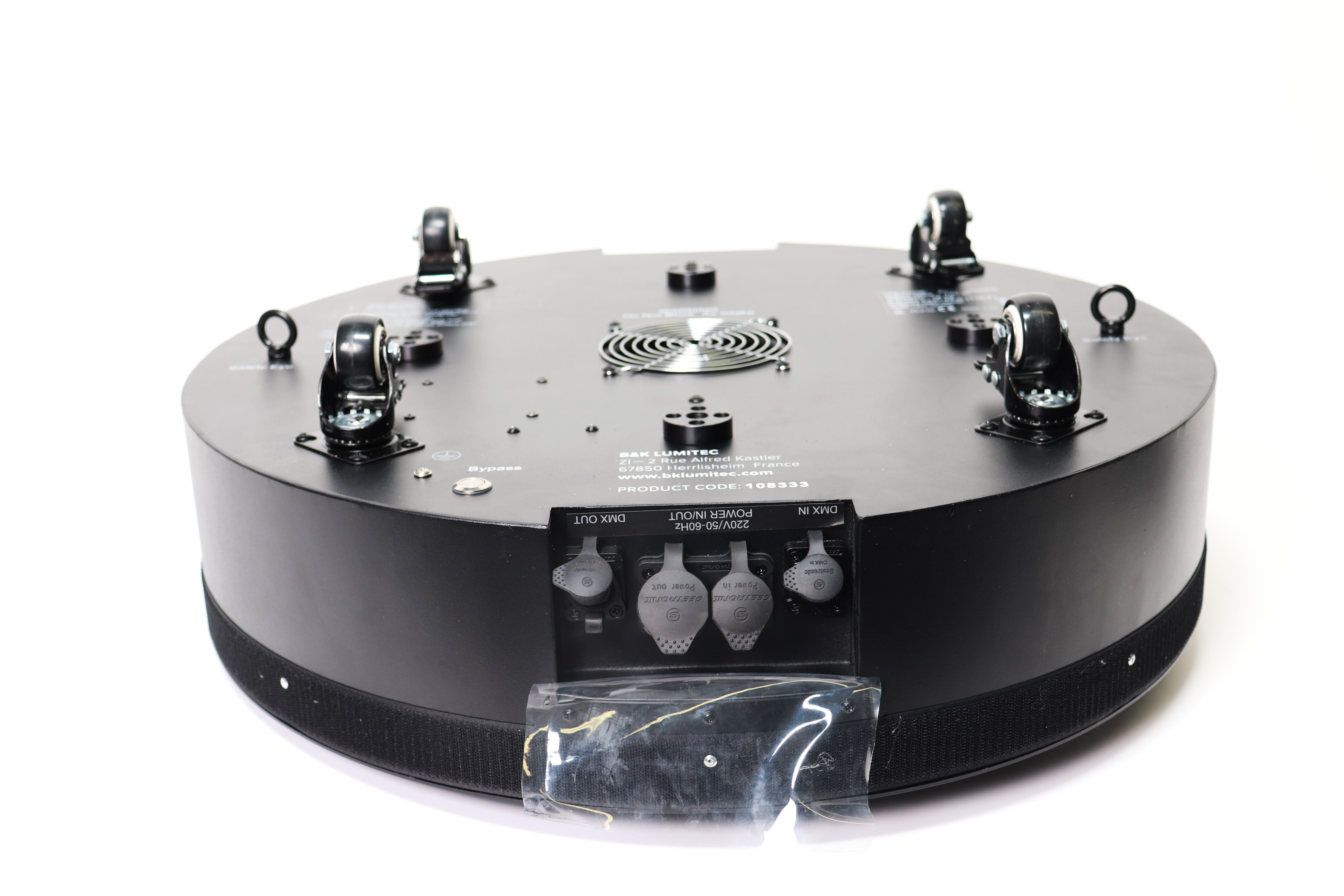

A built-in fan ensures safety with automatic shutdown and a bypass switch for temporary override. It features IP65 power input with Power Twist, IP65 Power OUT, and Schutzko connectors, plus XLR 5-pin and 3-pin In/Out for signals.
The FanBase 600 is durable, adaptable, and ideal for professional lighting setups.
Power supply
| Voltage: | 100 ~ 240 V / 50 ~ 60 Hz |
|---|---|
| Power consumption max.: | 120 W |
Connections
| Power in: | P-Con |
|---|---|
| Power out: | P-Con |
| XLR in/out: | 3pol / 5pol |
General
| Material: | Stahl |
|---|
Hardware
| Weight: | 16 kg |
|---|---|
| Dimensions (L/W/H): | 600 x 600 x 200 mm |
Shipping Data
| Length: | 600 mm |
|---|---|
| Width: | 600 mm |
| Height: | 202 mm |
| Weight: | 15,70 kg |
| PU: | 1 |
