F54 400cm
SKU:
F54400
EAN: 4042659133681
- Length: 400 cm
- Pipe diameter: 50 mm
- Wall thickness: 4 mm
- TÜV Certified
- Conical connectors included
Non-binding price recommendation
€1,391.00
Interested in this product?
Register now
The F54 truss series by Global Truss is a TÜV approved 4-point heavy duty system with an external dimension of 52cm. The high load capacity and wide span increases the range of use for this system. Big stage roofs and ground support constructions with tons of load are supported with ease, whilst a maximum span of up to 24 meters can be created.
The F54 truss is built with 50 x 4mm main tubes and 30 x 3 mm diagonal braces of aluminium. The truss pieces are connected with the included special conical connectors (60mm). This truss and all other Global Truss series can be powder coated in every RAL colour.
General
| Colour: | Aluminum |
|---|---|
| TÜV certificate: | Yes |
| Material: | Al EN AW-6082 T6 |
Technical Data
| Number of points: | 4-point |
|---|---|
| Edge dimension: | 53 cm |
| System: | F54 |
| Type: | straight |
| Truss length: | 400 cm |
Main pipe
| Diameter main pipe: | 50 mm |
|---|---|
| Wall thickness main pipe: | 4 mm |
Brace
| Diameter Brace: | 30 mm |
|---|---|
| Wall thickness Brace: | 3 mm |
Hardware
| Dimensions (L/W/H): | 4000 x 530 x 530 mm |
|---|---|
| Weight: | 58,90 kg |
Shipping Data
| Length: | 4000 mm |
|---|---|
| Width: | 500 mm |
| Height: | 500 mm |
| Weight: | 58.99 kg |
| PU: | 0 |

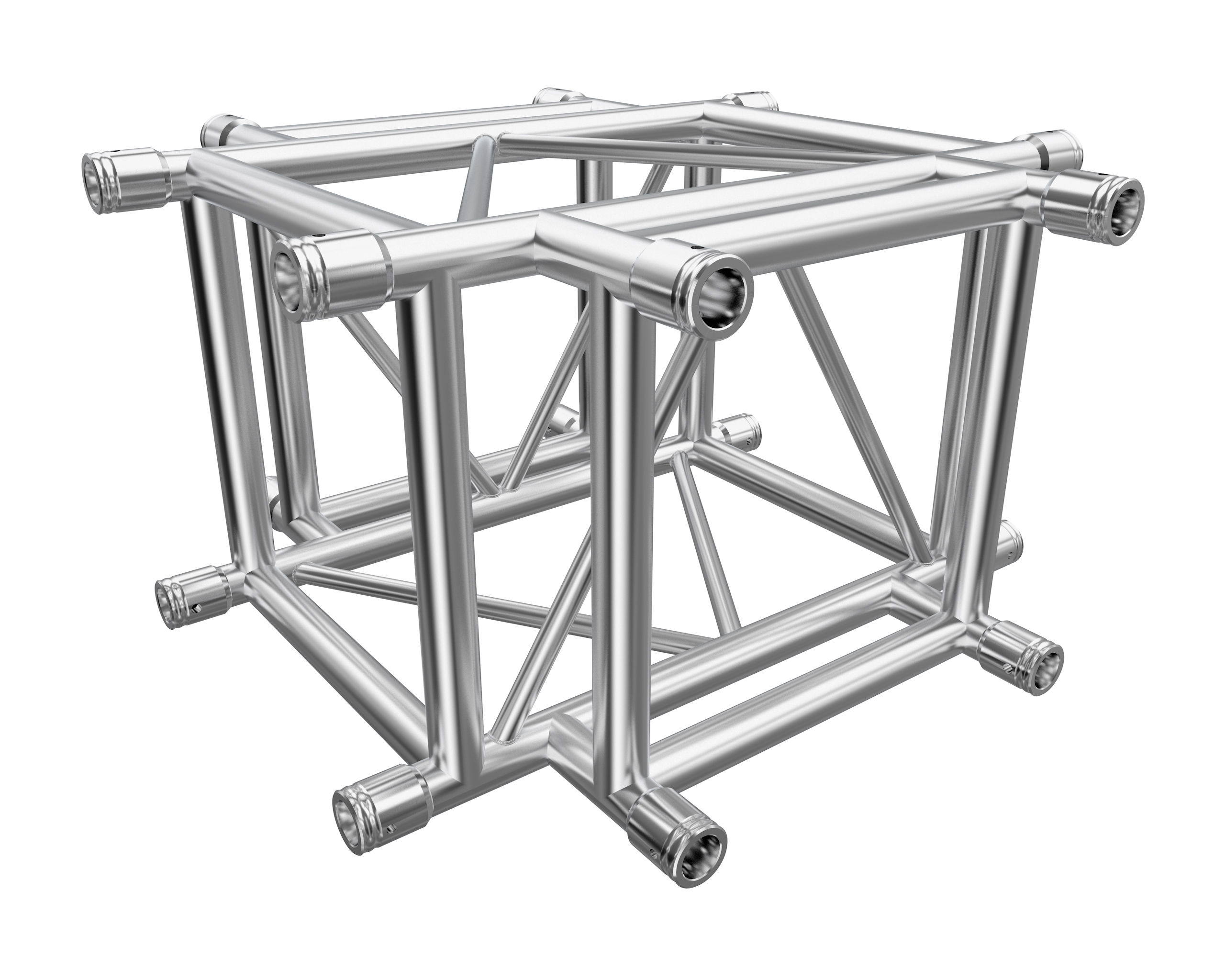

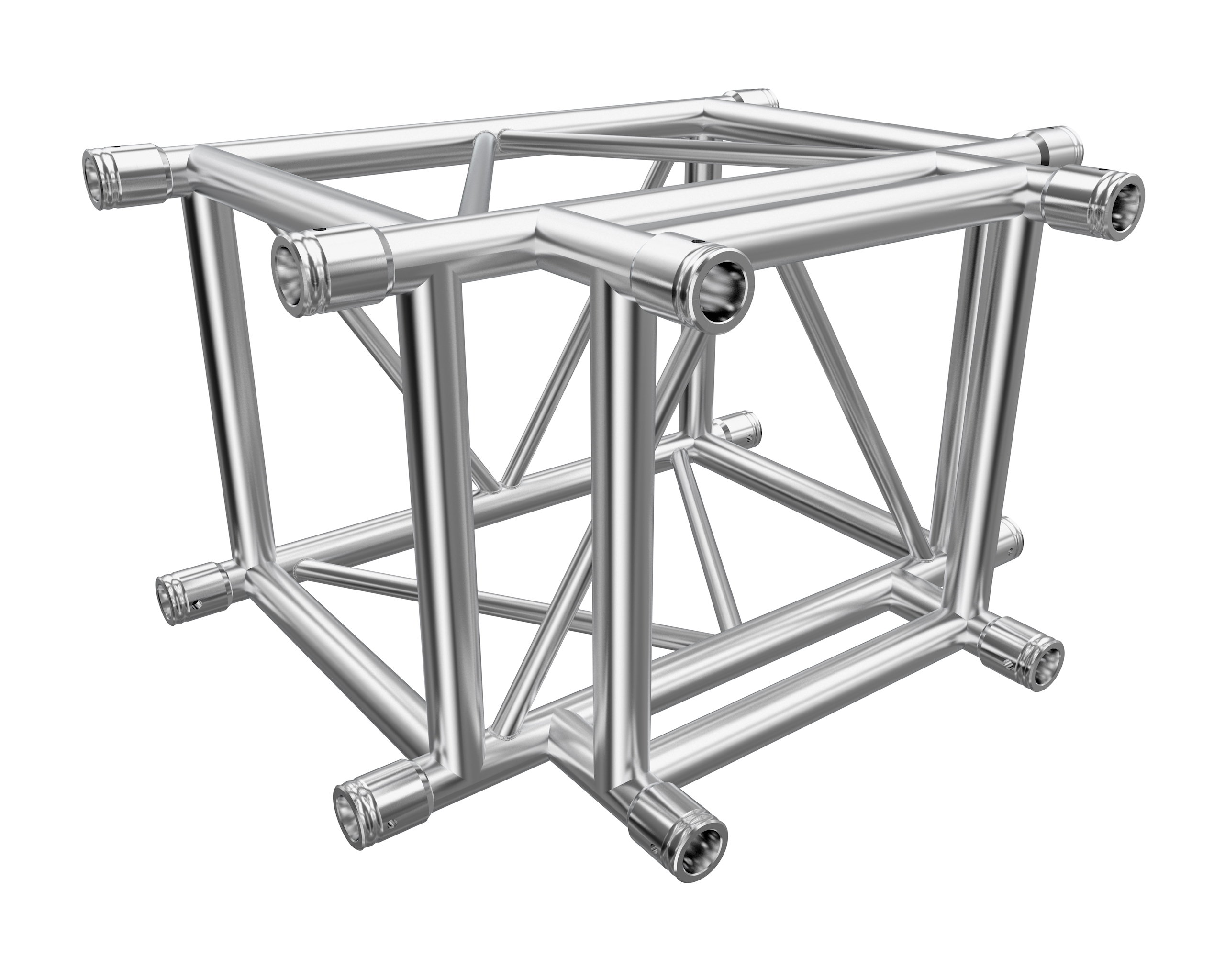

Related System Products
