F43 400cm
SKU:
F43400
EAN: 4042659126355
- Length: 400 cm
- Pipe diameter: 50 mm
- Wall thickness: 2 mm
- TÜV Certified
- Conical connectors included
Non-binding price recommendation
€430.30
Interested in this product?
Register now
The F43 truss series by Global Truss is a TÜV approved 3-point system with an external dimension of 40cm. This system is used for single truss lines as well as complex constructions with greater loads. A maximum span of up to 18 meters can be created with this system.
The F43 truss is built with 50 x 2mm main tubes and 25 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
General
| Colour: | Aluminum |
|---|---|
| TÜV certificate: | Yes |
| Material: | Al EN AW-6082 T6 |
Technical Data
| Number of points: | 3-point |
|---|---|
| Edge dimension: | 40 cm |
| System: | F43 |
| Type: | straight |
| Truss length: | 400 cm |
Main pipe
| Diameter main pipe: | 50 mm |
|---|---|
| Wall thickness main pipe: | 2 mm |
Brace
| Diameter Brace: | 25 mm |
|---|---|
| Wall thickness Brace: | 3 mm |
Hardware
| Dimensions (L/W/H): | 4000 x 400 x 400 mm |
|---|---|
| Weight: | 21 kg |
Shipping Data
| Length: | 4000 mm |
|---|---|
| Width: | 400 mm |
| Height: | 400 mm |
| Weight: | 24.85 kg |
| PU: | 1 |

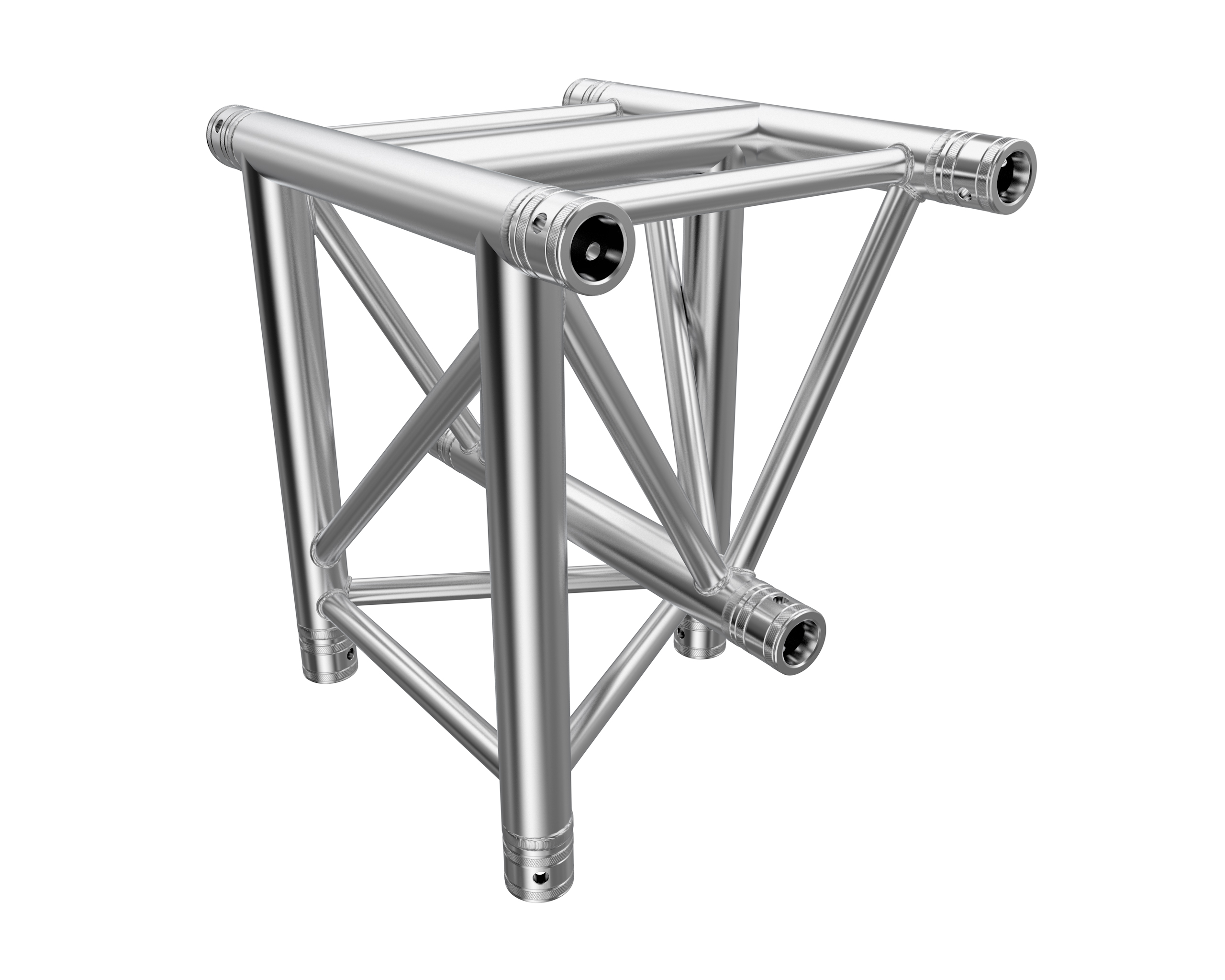

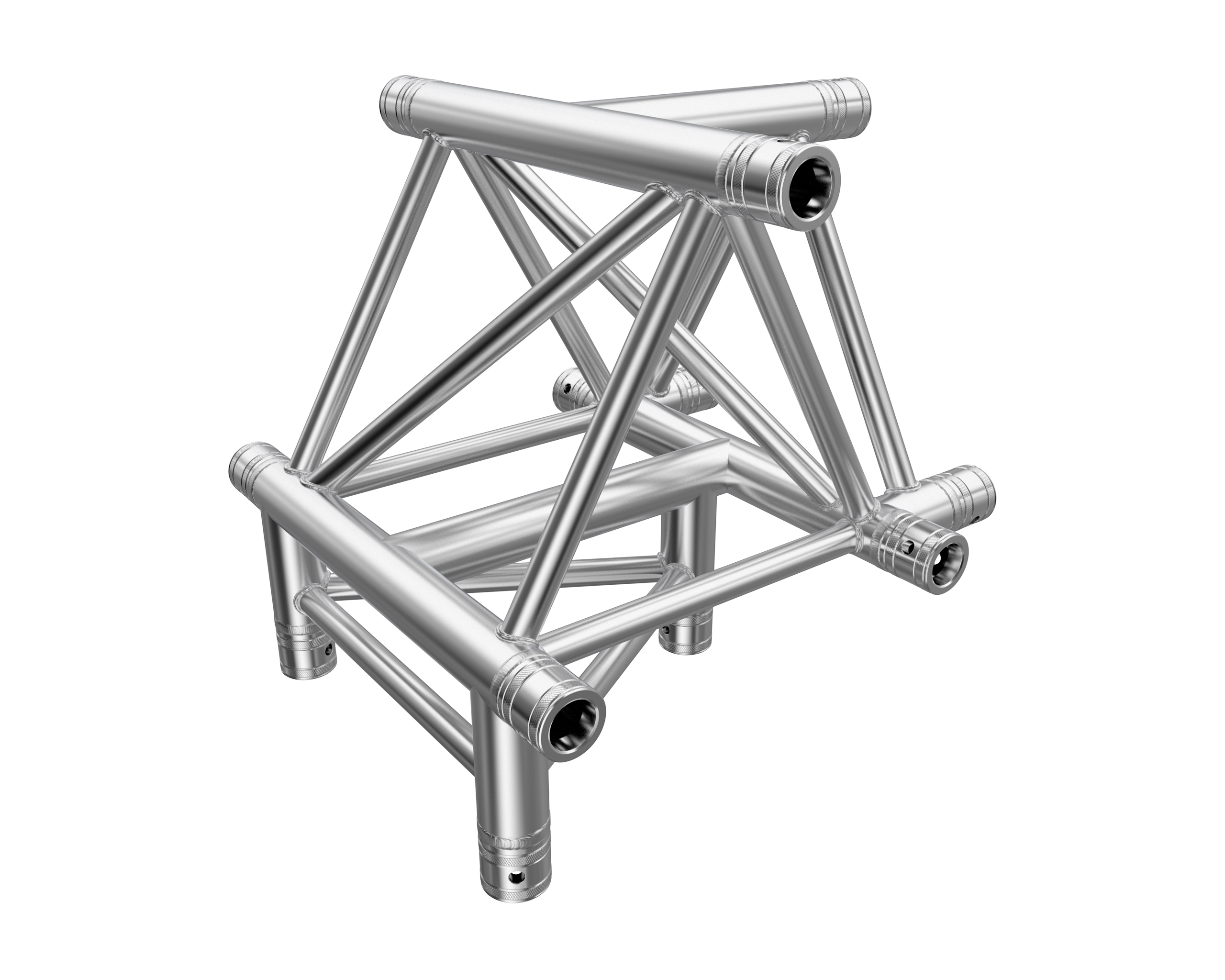

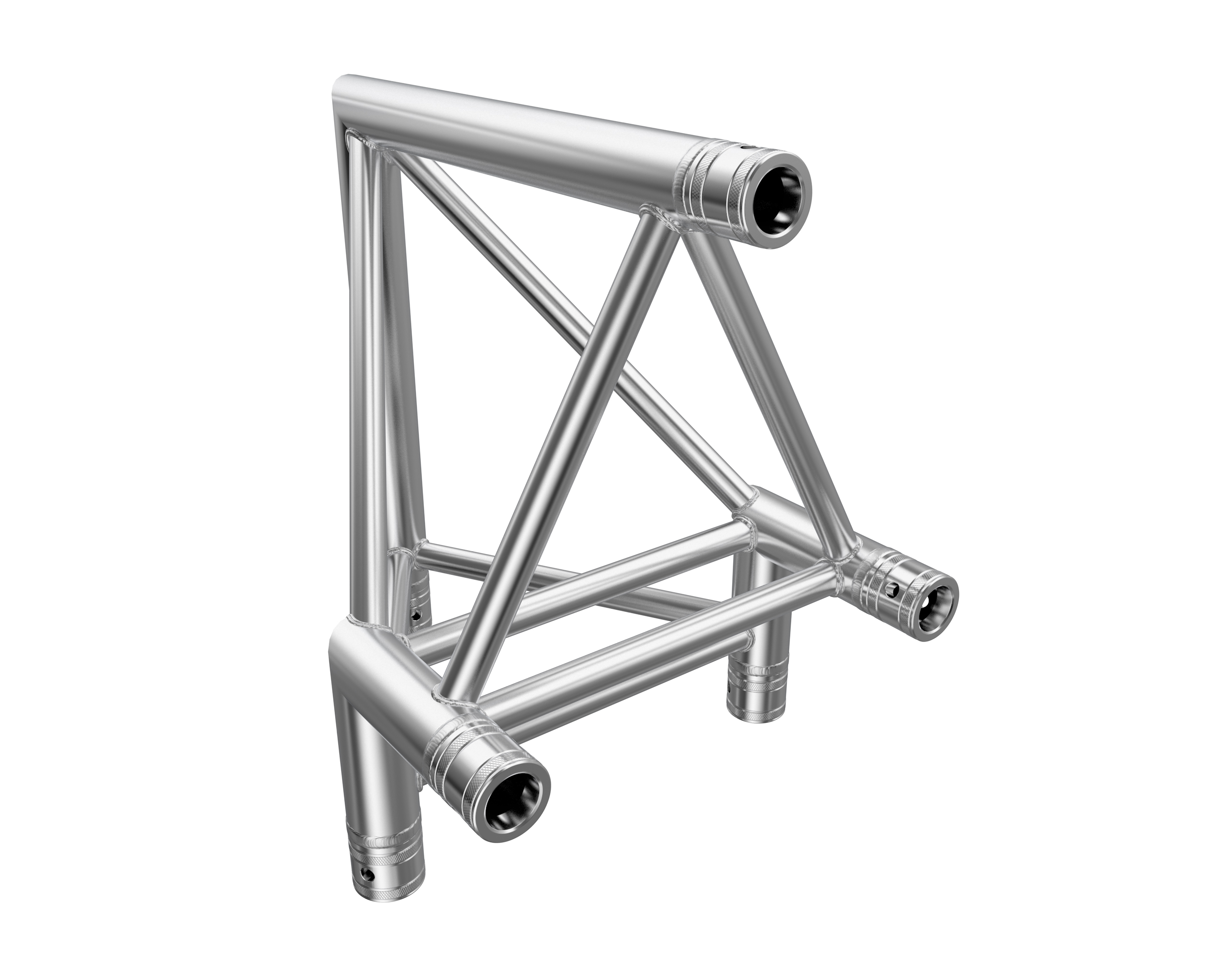

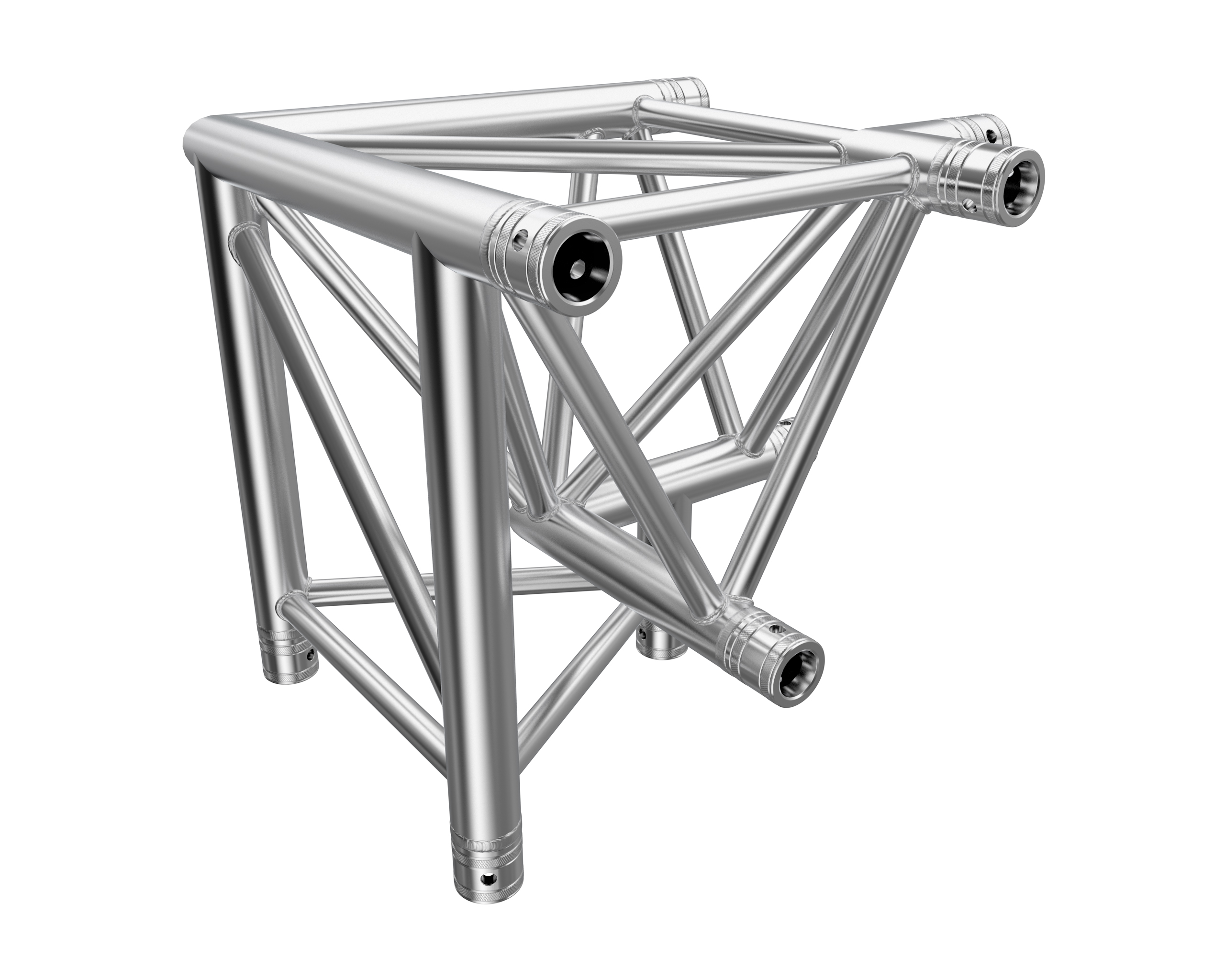

Related System Products
