F34 DNA 300cm
SKU:
F34300DNA
EAN: 4251665204845
- System length: 300 cm
- Actual length: 201,78 cm
- Pipe diameter: 50 mm
- Wall thickness: 2 mm
- Conical connectors included
Non-binding price recommendation
€964.00
Interested in this product?
Register now

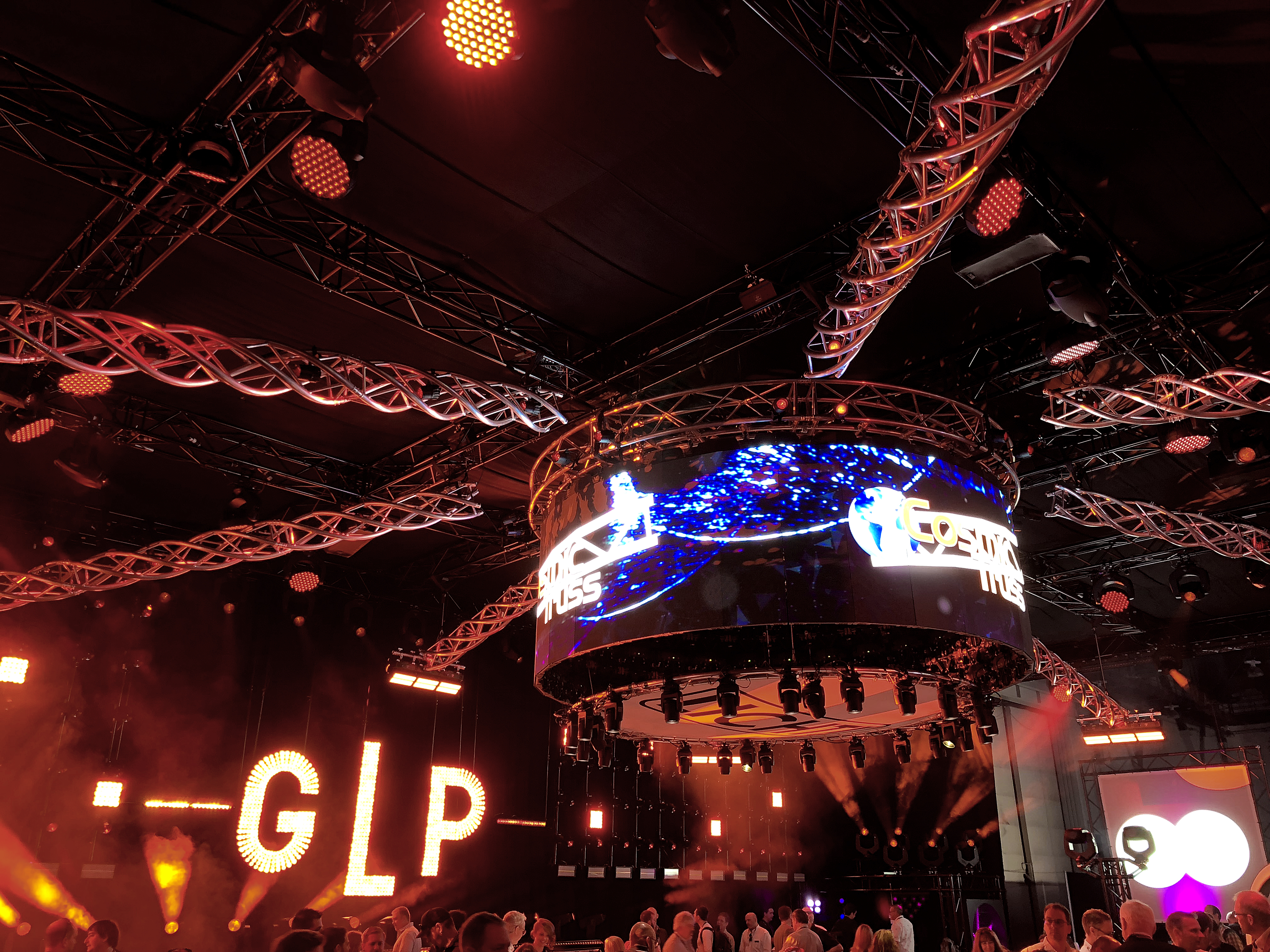

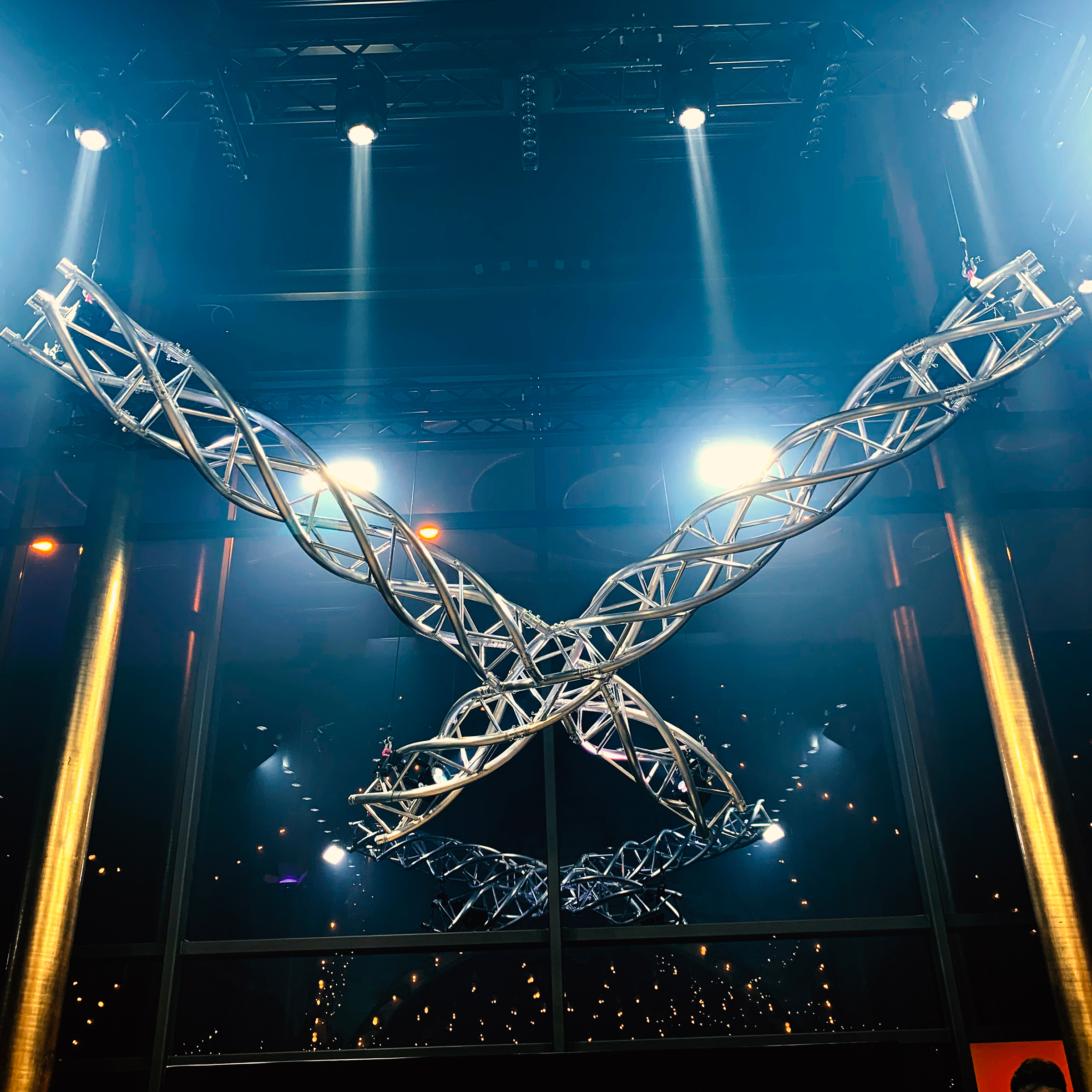

Global Truss has developed the completely unique truss system. The new DNA Truss is designed to bring truss to the forefront of scenic designs, creating a stunning contrast to the traditional box truss. The DNA Truss is currently available to match the existing F34 truss range. Adapter pieces can be attached which bring the DNA’s twist into a square ensuring the DNA truss can fit seamlessly into any F34 box truss designs. DNA Truss retains the standard tube diameter of 50 mm allowing them to fit together using a conical coupler and locking pin. As with all Global Truss products the DNA Truss can be powder coated in every RAL color needed. The DNA truss system can be used for a variety of applications, such as exhibitions, corporate events, retail environments, and live productions.
General
| Colour: | Aluminum |
|---|---|
| TÜV certificate: | No |
| Material: | Al EN AW-6082 T6 |
Technical Data
| Number of points: | 4-point |
|---|---|
| Edge dimension: | 29 cm |
| System: | F34DNA |
| Type: | straight |
| Truss length: | 300 cm |
Main pipe
| Diameter main pipe: | 50 mm |
|---|---|
| Wall thickness main pipe: | 2 mm |
Brace
| Diameter Brace: | 20 mm |
|---|---|
| Wall thickness Brace: | 2 mm |
Shipping Data
| Length: | 3000 mm |
|---|---|
| Width: | 400 mm |
| Height: | 400 mm |
| Weight: | 19 kg |
| PU: | 1 |
