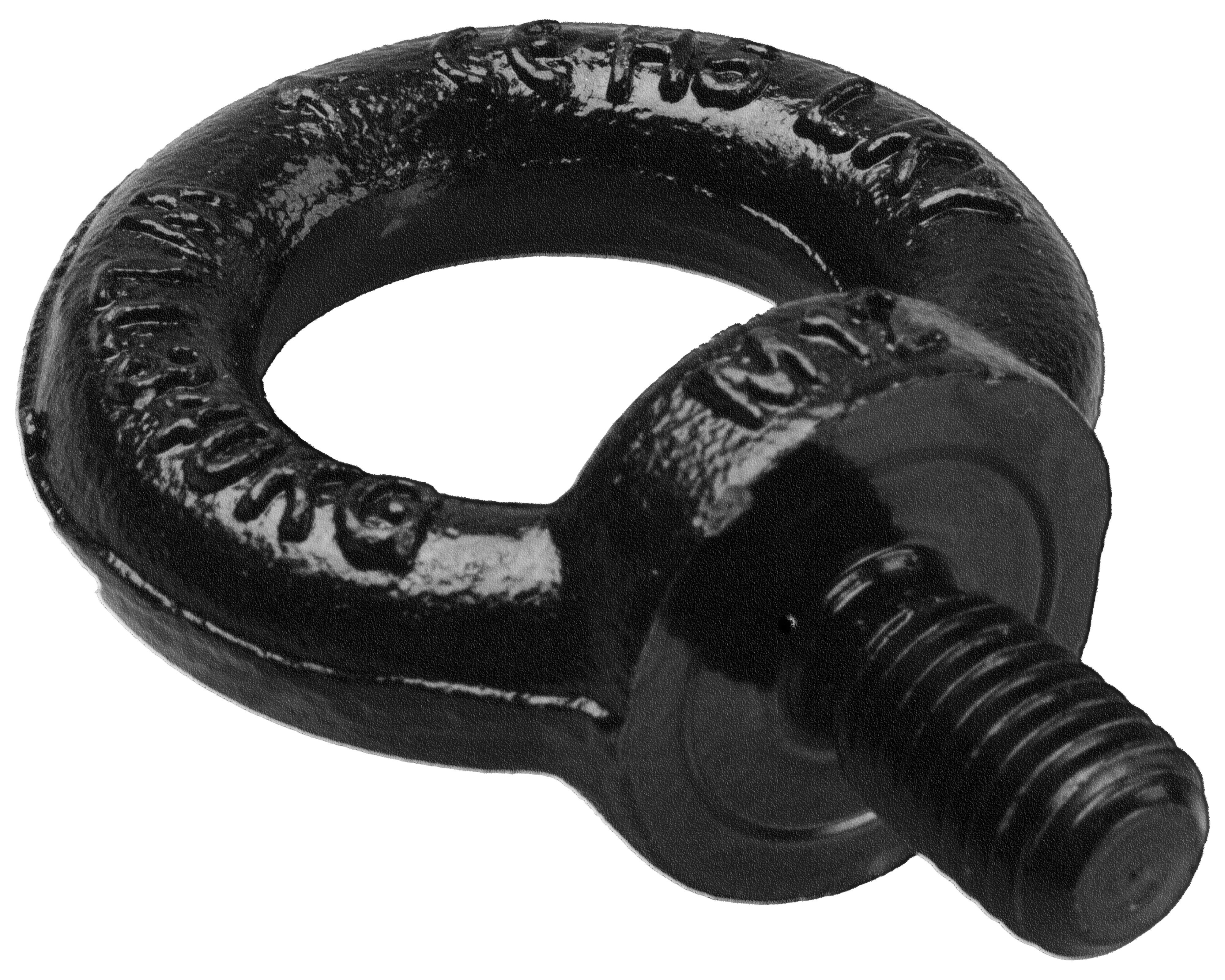

Eye bolt DIN 580 BLACKLINE M10
SKU:
108773
- M10 thread
- WLL 230kg
- according to DIN 580
- WLL and CE marked
Non-binding price recommendation
€3.15
Interested in this product?
Register now
The DIN 580 Blackline M10 eyebolt from Safetex is a high quality component that has been specially developed for industrial and heavy lifting applications. Here are the most important technical details:
Model: Eyebolt DIN 580 Blackline M10
Brand: Safetex
WLL (Working Load Limit) 230kg

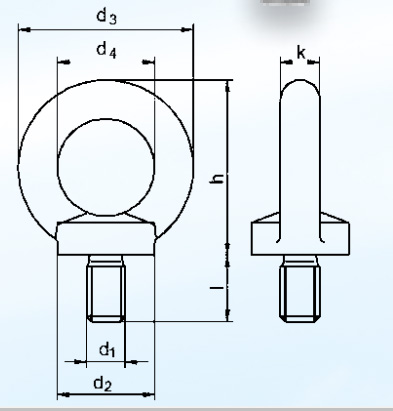

d1: M10
d2: 25 mm
d4: 25 mm
h: 45 mm
k: 10 mm
This eyebolt is ideal for use in demanding lifting applications and is characterised by its robust design and high load capacity.
Shipping Data
| Weight: | 0.114 kg |
|---|
