Double Pitch Roof 8x6m
SKU:
GT-DPR8x6
EAN: 4251665204401
- Double pitch roof for deck surface 8x4 m
- Including proof of stability
Non-binding price recommendation
€62,199.00
Interested in this product?
Register now
Global Truss stage roofs convince with their flexibility and easy handling when rigging the construction. Only a few special parts, a lot of common parts for different stage roof sizes and a maximum load capacity are just some of the benefits of our stage roofs. The wide field of use includes corporate events, street partys and even big open air events.

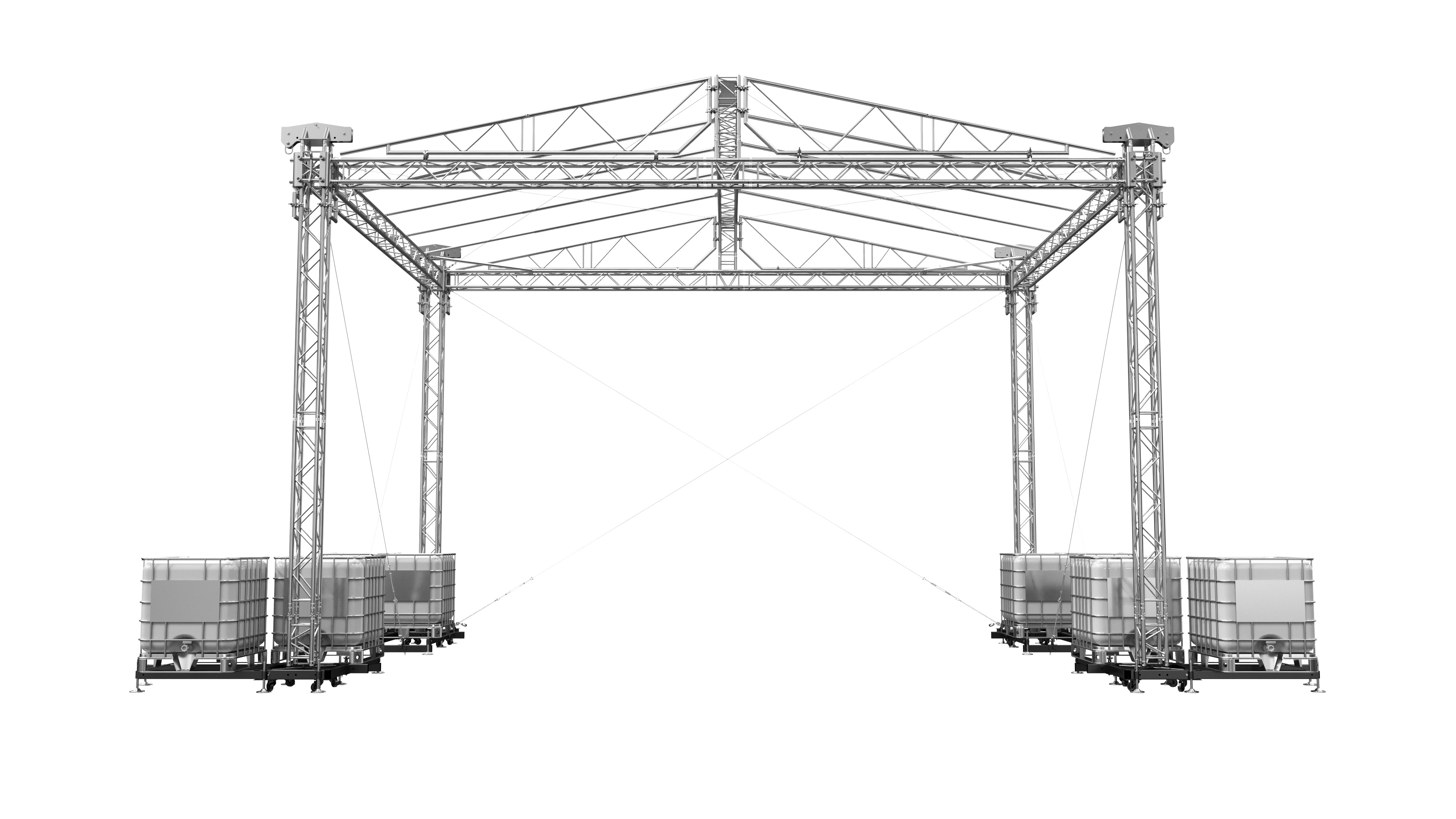

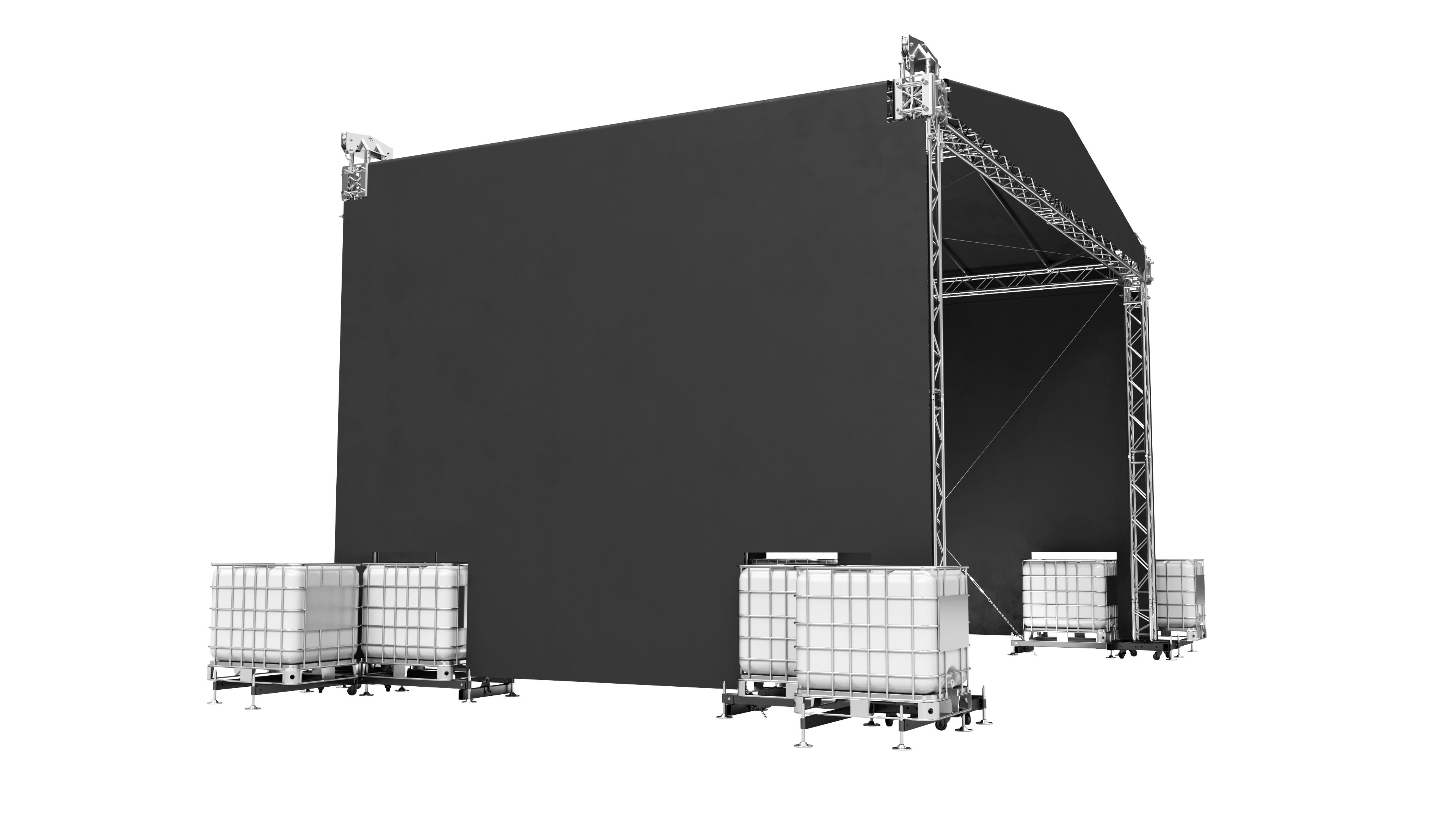

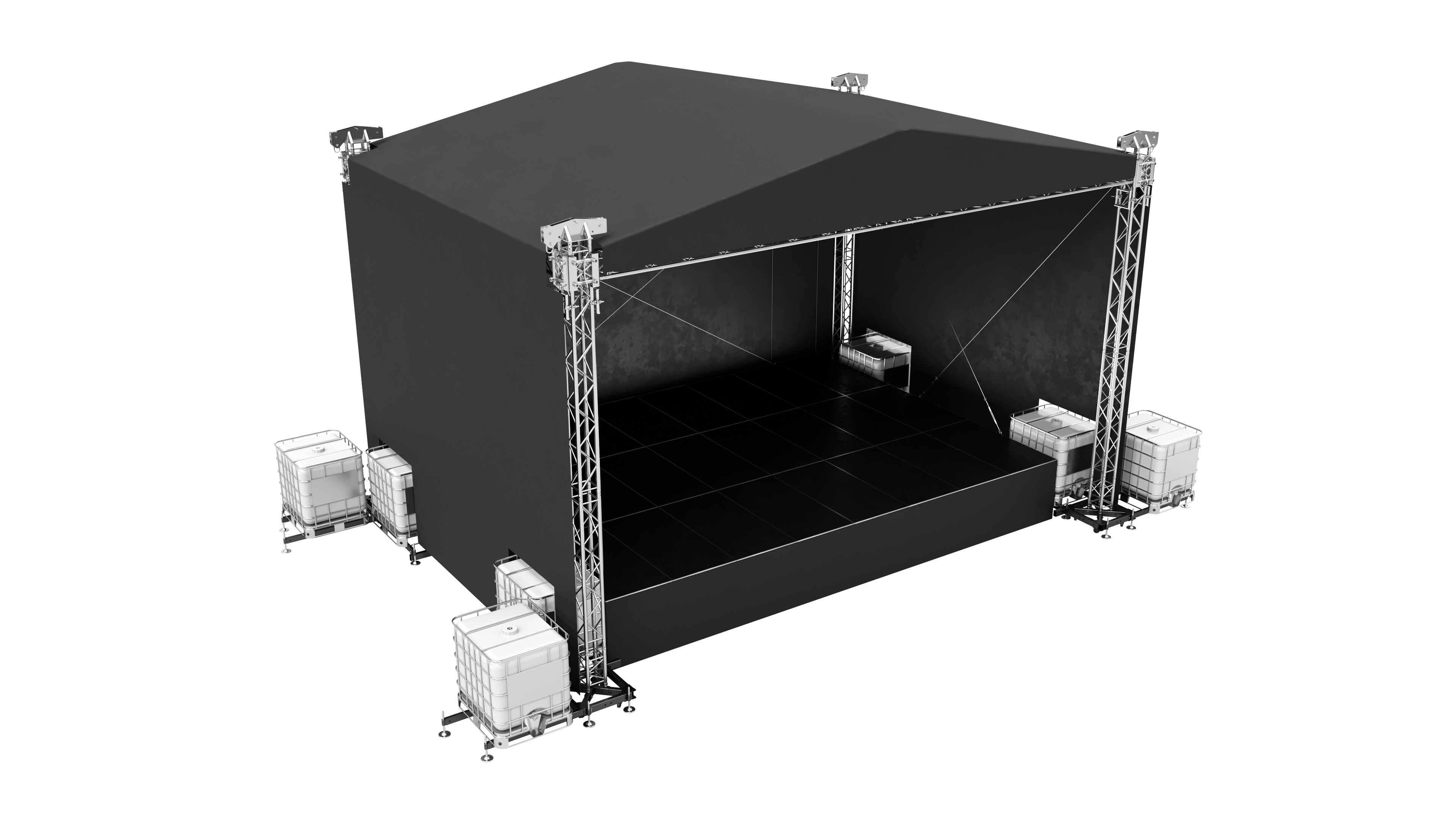

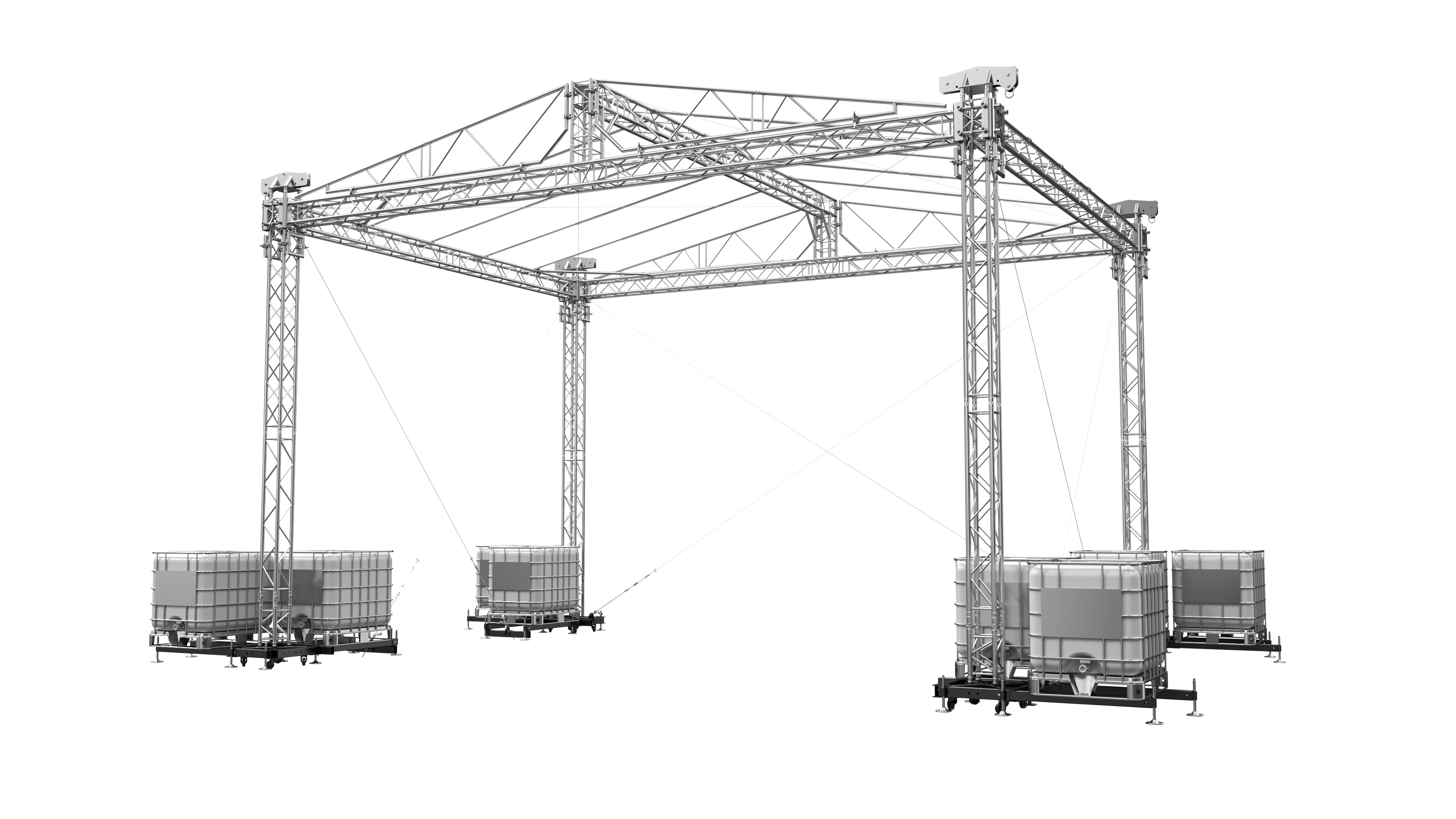

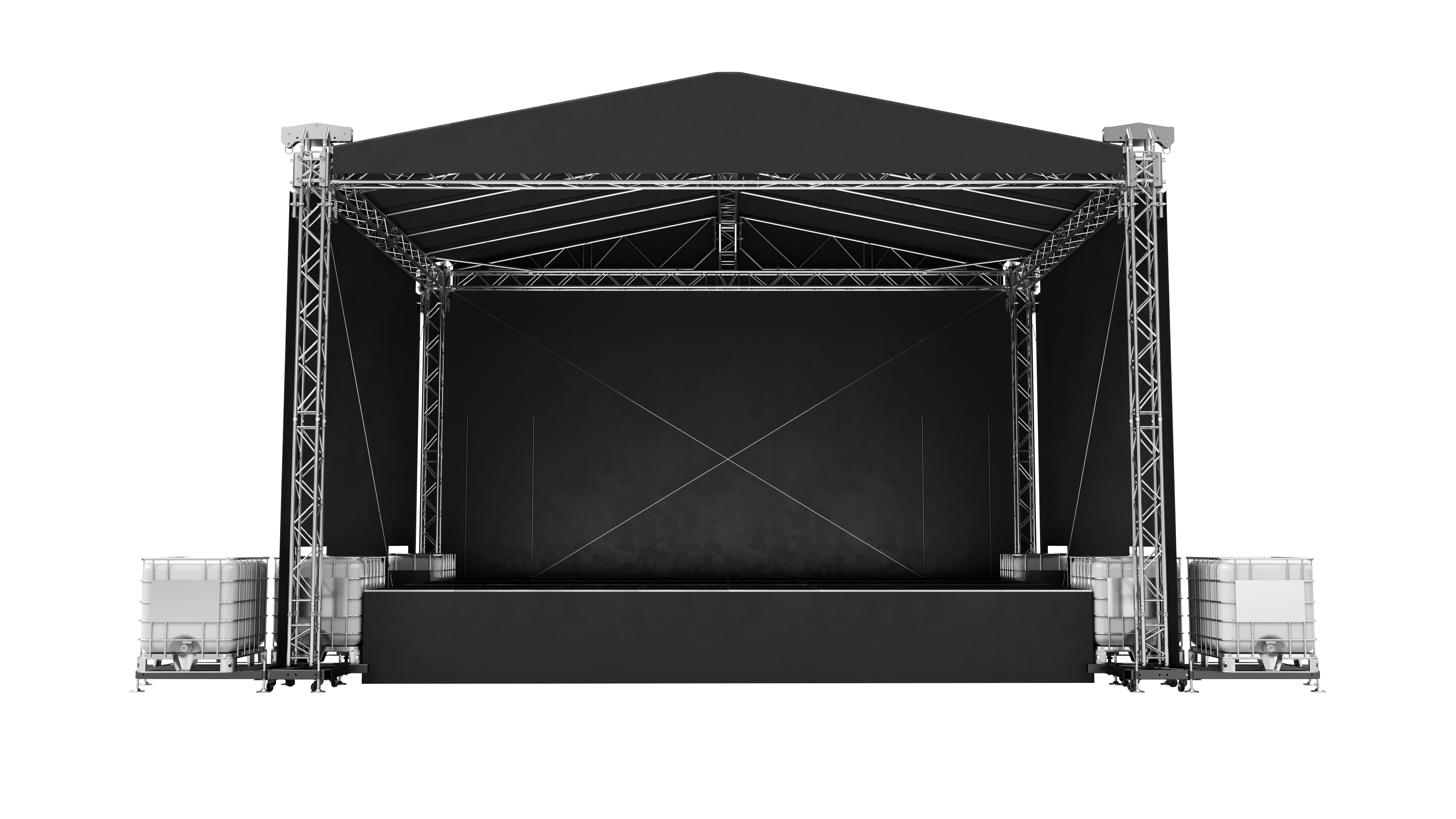

The Double Pitch Roof 8x6 has external dimensions of 9.3 x 6.8 x 6.6 meters and is perfect to roof a desk surface of 8 x 6 meters. The roof is based on the Multi- Tower-Basement and built with F34P truss. The bracing is made with tightrope and special corner brakes. It can be lifted with electronic chain hoists or manual chain hoists. The sleeves are secured by a special frame on the tower. The scope of delivery includes a black roof canopy, black mesh for the sides and a proof of stability.
Not included: ballast, woodpad and hoists.
Features:
- Depth: 6,80 m
- Width: 9,30 m
- Height: 6,60 m
- Truss system: F34P
- Maximum roof load: up to 1.5 to
