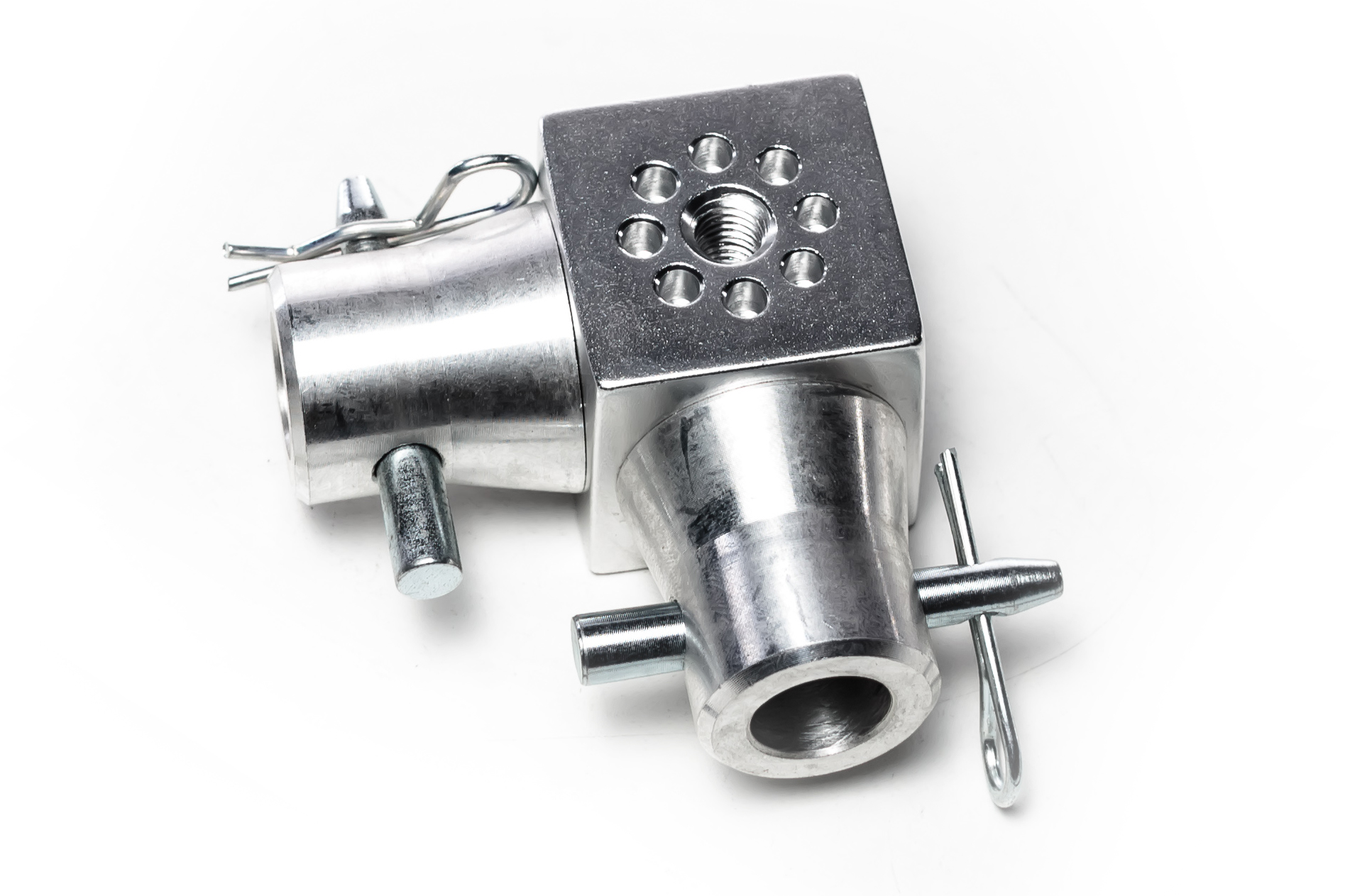

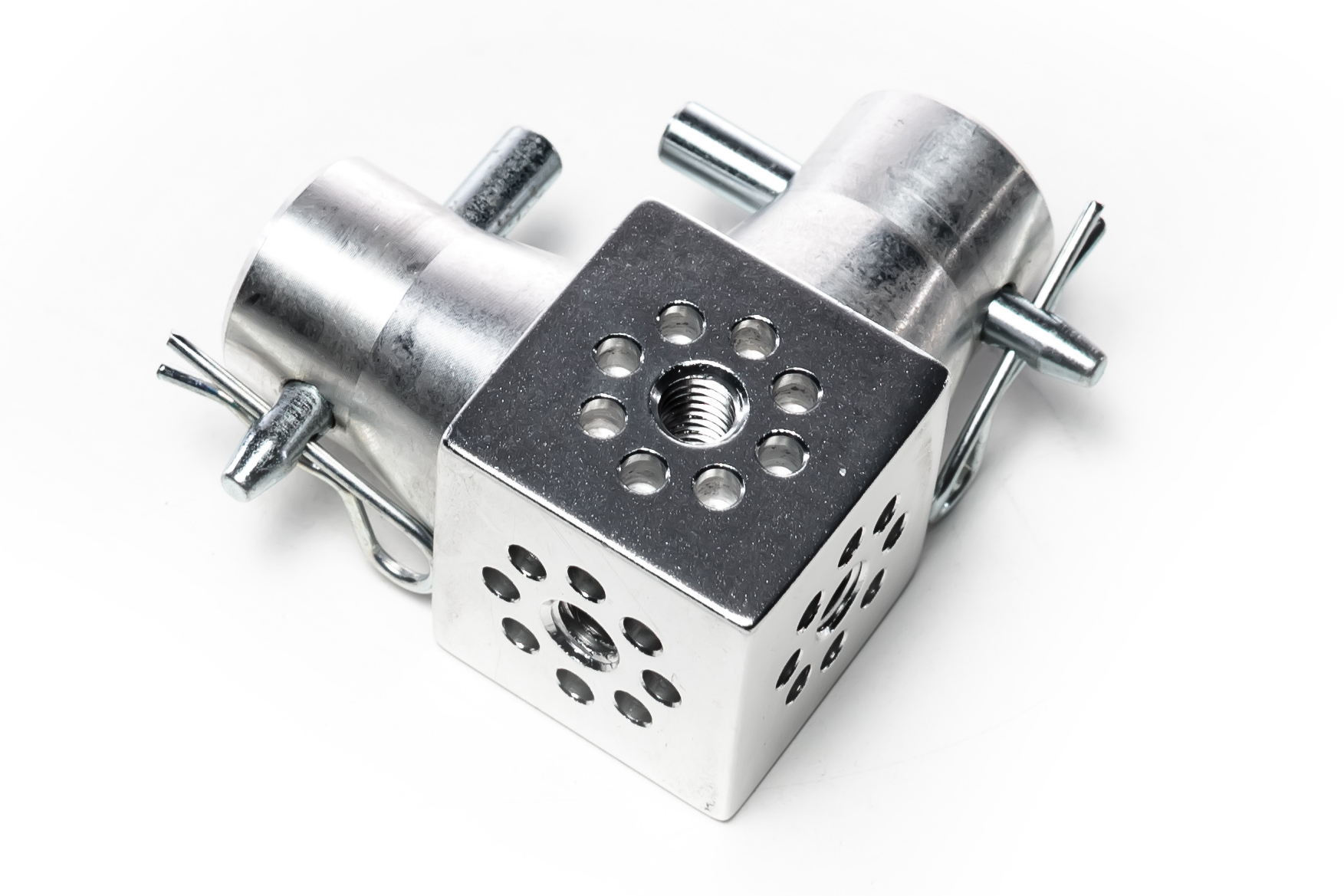

Cube for F22 - F24
SKU:
5006B
EAN: 4042659126980
- 6-corner cube
- M8 thread
- matching cone F24BOX-C
- Dimensions of item: 35 x 35 x 35 mm
- Delivery incl. 2 half conical connector, conical pin and R clip
Non-binding price recommendation
€23.80
Interested in this product?
Register now
The corner cube is a very flexible corner element, which is required in many different applications. Deliveries are made with two half-tipped cone shapes. For accurate adjustment of the 6-corner cube drilling has to the matching pin of the half Konuses is fixed. Thus, the half-cone is always adjusted in the correct rotation. Areas of application are, for example, display, special or shop.
General
| Colour: | Aluminum |
|---|---|
| Material: | Al EN AW-6082 T6 |
Technical Data
| Number of points: | 2-point |
|---|---|
| System: | F22 |
| Type: | corner |
| Truss length: | 3,80 cm |
Hardware
| Dimensions (L/W/H): | 038 x 038 x 038 mm |
|---|---|
| Weight: | 0,30 kg |
Shipping Data
| Length: | 38 mm |
|---|---|
| Width: | 38 mm |
| Height: | 38 mm |
| Weight: | 0.35 kg |
| PU: | 100 |
