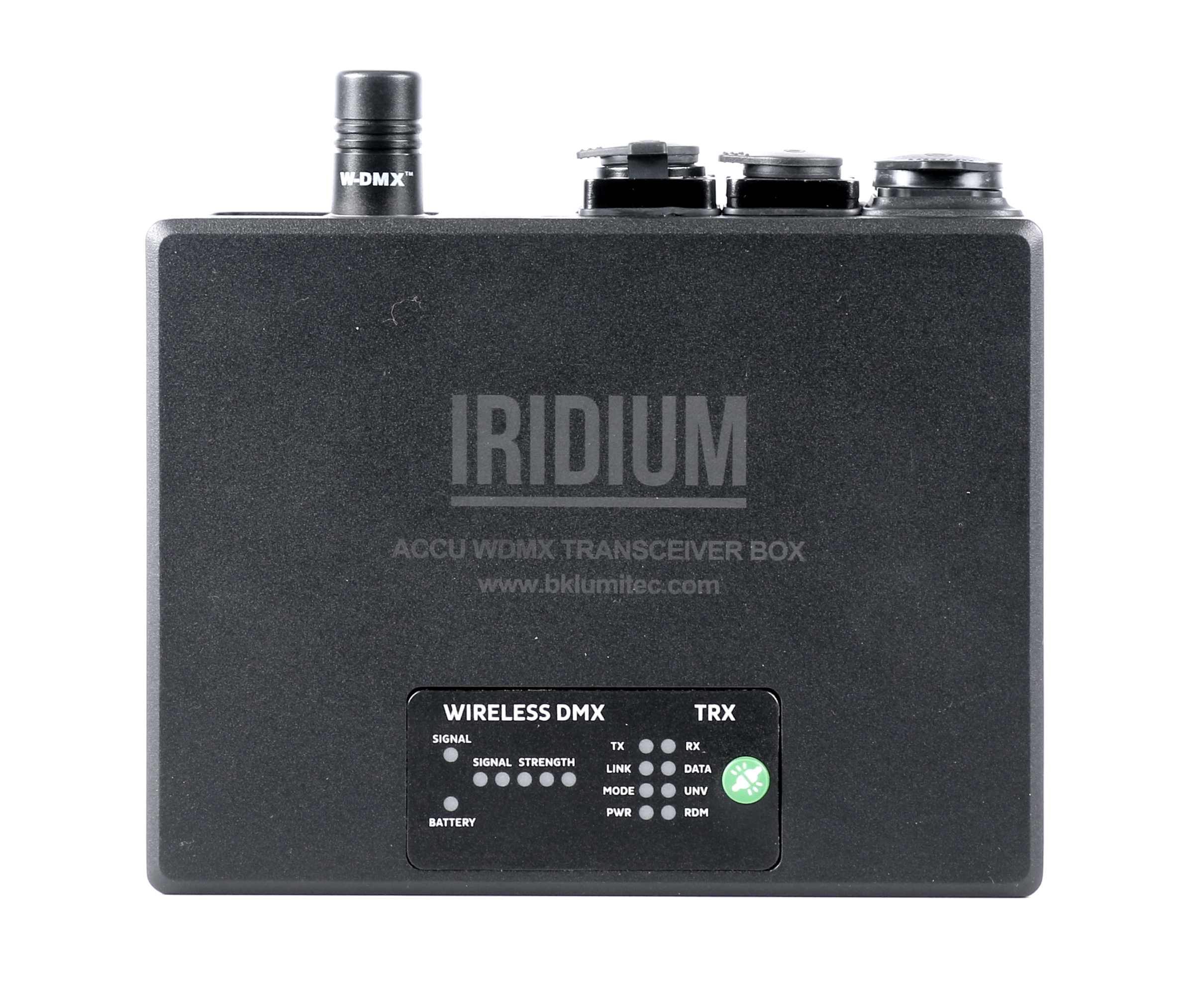

Accu WDMX Transceiver Box IP65
SKU:
120878
EAN: 3701098204468
- Wireless DMX transmitter and receiver
- Wireless Solution WDMX module
- Integrated rechargeable battery
- Outdoor proofed
Non-binding price recommendation
€529.00
Interested in this product?
Register now
IRIDIUM ACCU WDMX Transceiver BOX IP65 - Powerful and mobile DMX solution for any outdoor use
The IRIDIUM ACCU WDMX Transceiver BOX IP65 offers you reliable, wireless DMX and RDM lighting control with maximum flexibility. Thanks to its robust housing (IP66 protection class according to specification) and integrated high-performance battery, this box is the ideal choice for both indoor and demanding outdoor events. Whether for festivals, architectural lighting or mobile event staging - with the IRIDIUM Transceiver BOX, you can rely on state-of-the-art wireless technology and a long-lasting battery system.
Important features and technical details:
DMX & RDM
- Input protocols: DMX 512 and RDM ANSI E1.20 (2)
- DMX universe: 1 universe (512 channels)
- Latency: < 5 ms
- Maximum coexistence: 32 universes simultaneously
Wireless WDMX technology
- Compatibility: W-DMX G3 and G4S standards
- Frequency ranges: 2.4 GHz, 5.2 GHz and 5.8 GHz (1)
- Transmission power (2.4 GHz): Normal power mode 100 mW, maximum power mode up to 450 mW
- Range: Up to 700 m (line of sight)
Power supply & battery
- Battery operation: High-performance battery for self-sufficient use
- Charging time: Approx. 2.5 hours
- Operating time: 88 hours in transmitter mode (TX), 440 hours in receiver mode (RX)
- AC input: 100-250 VAC, 50/60 Hz
- DC input: 12 V / 2 A

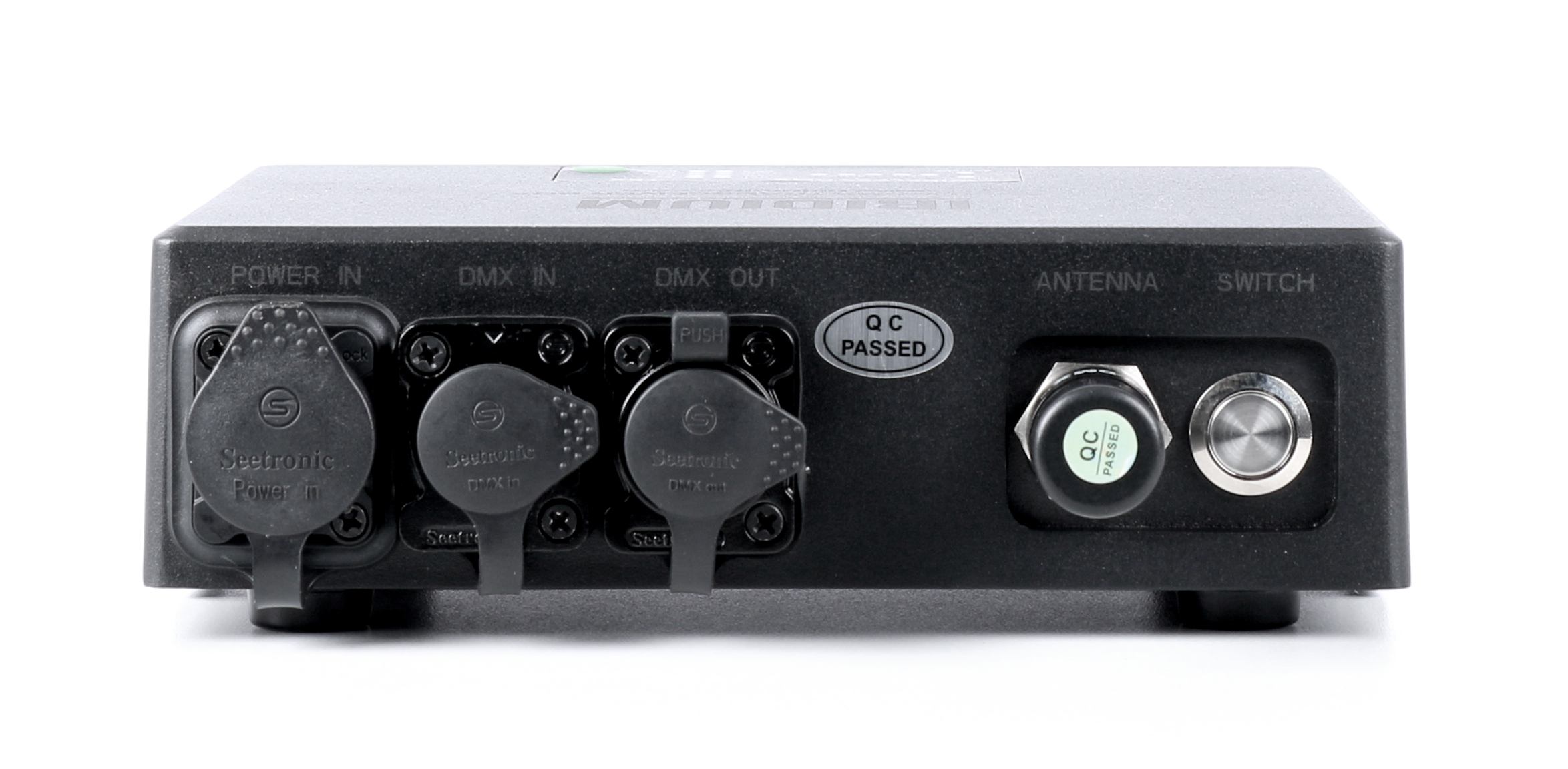

Connections
- DMX: 3pin In/Out Seetronic IP65
- Power in: Seetronic IP65 Power
Robust housing & mounting
- Protection class: IP66 (dust and waterproof)
- Temperature range: -20 °C to +45 °C

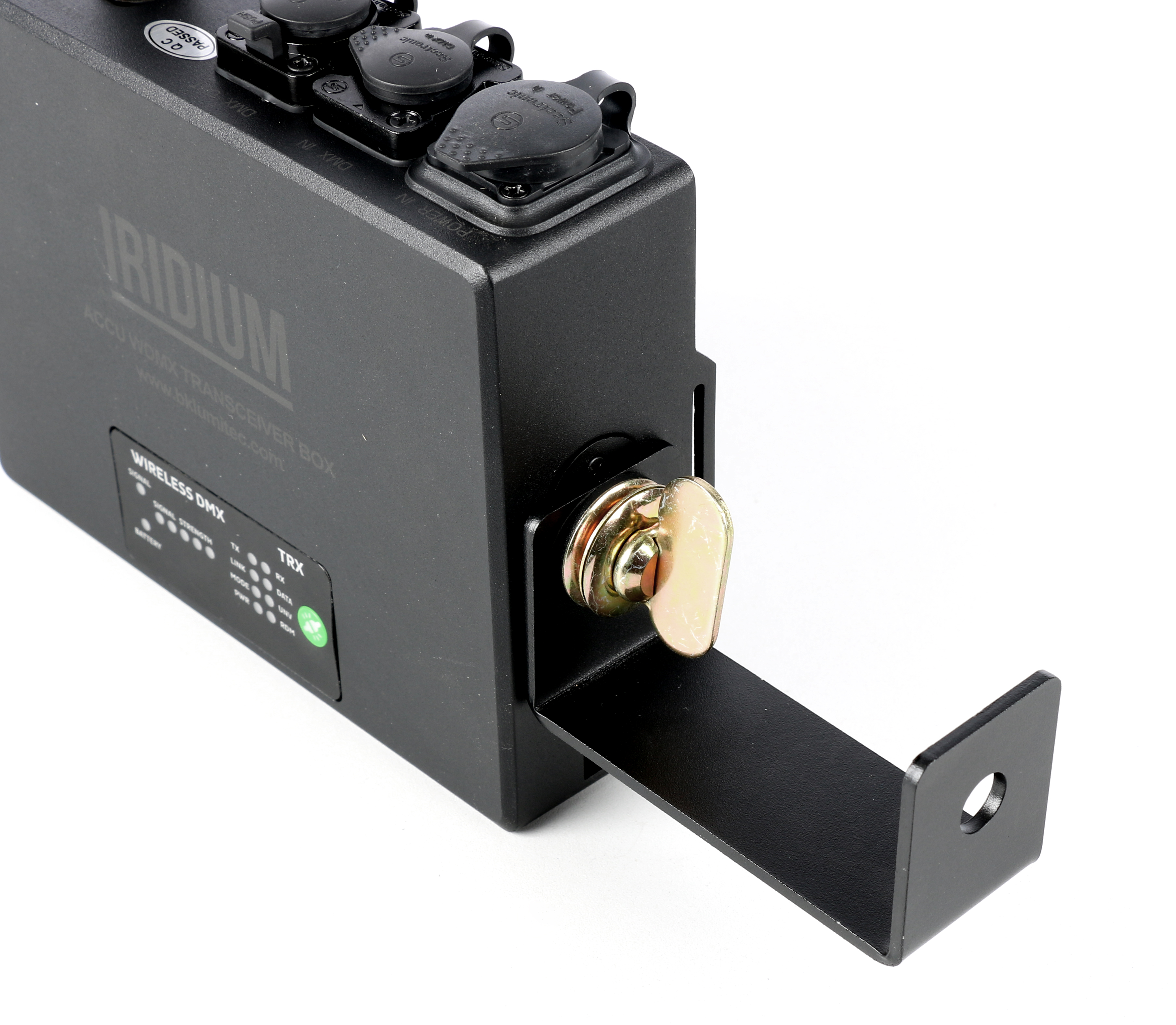

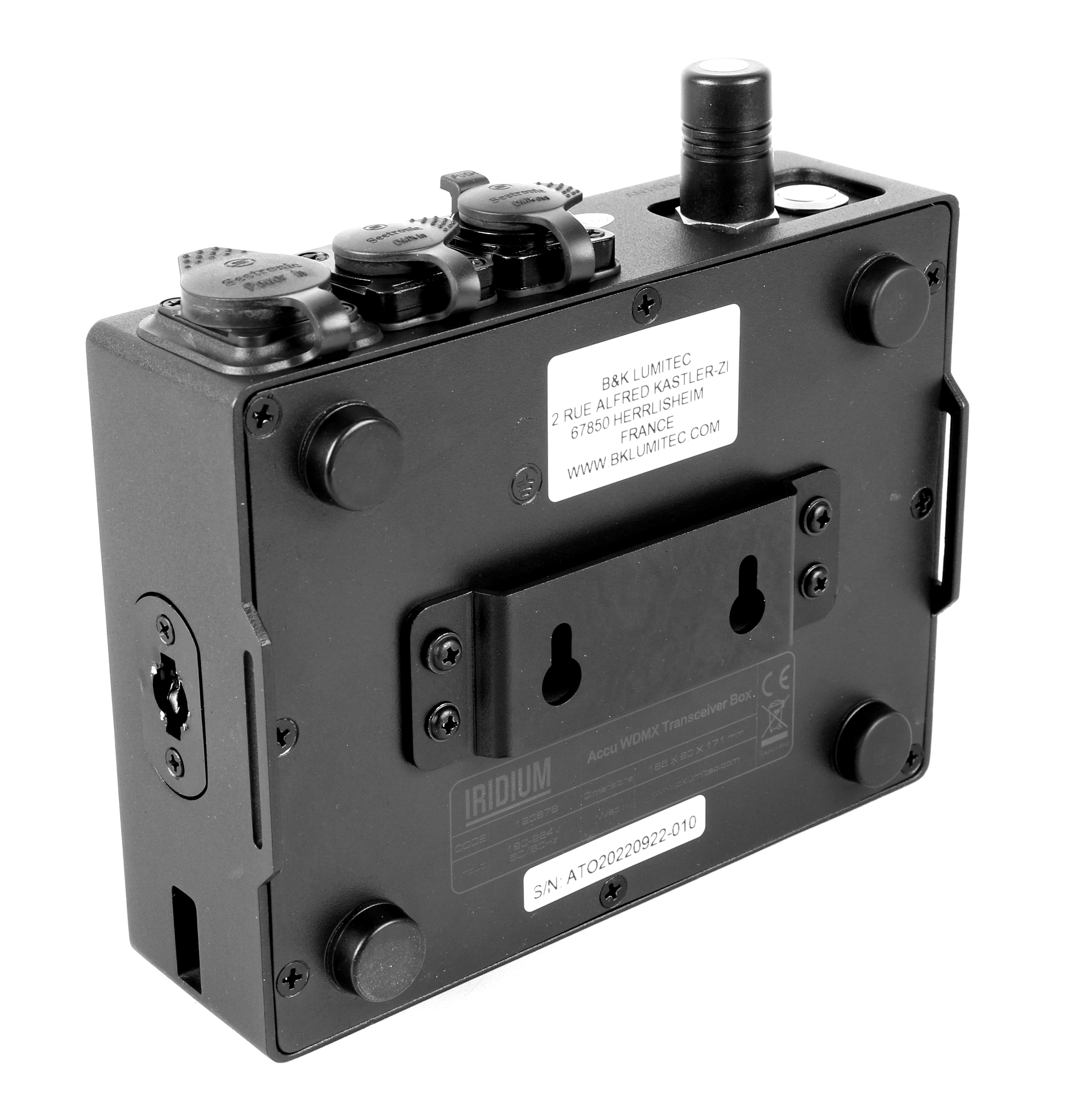

- Mounting options: Omega bracket with quick-release fastener, M10 holes for coupler, two mounting points for wall mounting
- Dimensions (WxDxH): 185 x 59.5 x 170 mm
- Weight: net 1.8 kg / gross 2.5 kg
Advantages and areas of application
- Cable-independent installation: No complex cabling required - perfect for temporary events or locations with restricted access.
- Extremely long operating time: The integrated rechargeable battery enables hours or days of use without an external power supply.
- Reliable radio link: Thanks to advanced WDMX technology and high transmission power, your DMX signal always remains stable.
- Weatherproof construction: Even in rain, dust or harsh conditions, the robust housing with IP66 protection is impressive.
- Versatile mounting: Whether flying frame, trussing, wall bracket or floor installation - the flexible mounting makes it possible to cover any event situation.
Rely on the IRIDIUM ACCU WDMX Transceiver BOX IP65 and benefit from a modern, powerful wireless and battery solution. Experience the freedom of wireless DMX control without compromising on reliability, range and ease of use - ideal for professional indoor and outdoor event and stage applications.
Shipping Data
| Length: | 280 mm |
|---|---|
| Width: | 280 mm |
| Height: | 100 mm |
| Weight: | 2.4 kg |
| PU: | 1 |
